The NIMBUS Presto automates nucleic acid extraction from diverse sample types. It includes the Thermo Scientific KingFisher Presto and pre-programmed magnetic particle-based methods. Two magnetic heads allow parallel processing in 24- and 96-well plate formats.
Optimized Magnetic Bead-Based Extraction
Developed using Thermo Scientific KingFisher Presto technology, the NIMBUS Presto reduces time and variability in magnetic bead-based sample processing methods.
Increased Speed and Throughput
Hands-free parallel processing of 24- or 96-well plates with a volume range of 50–5000 µL lets you achieve more at once and scale as necessary.

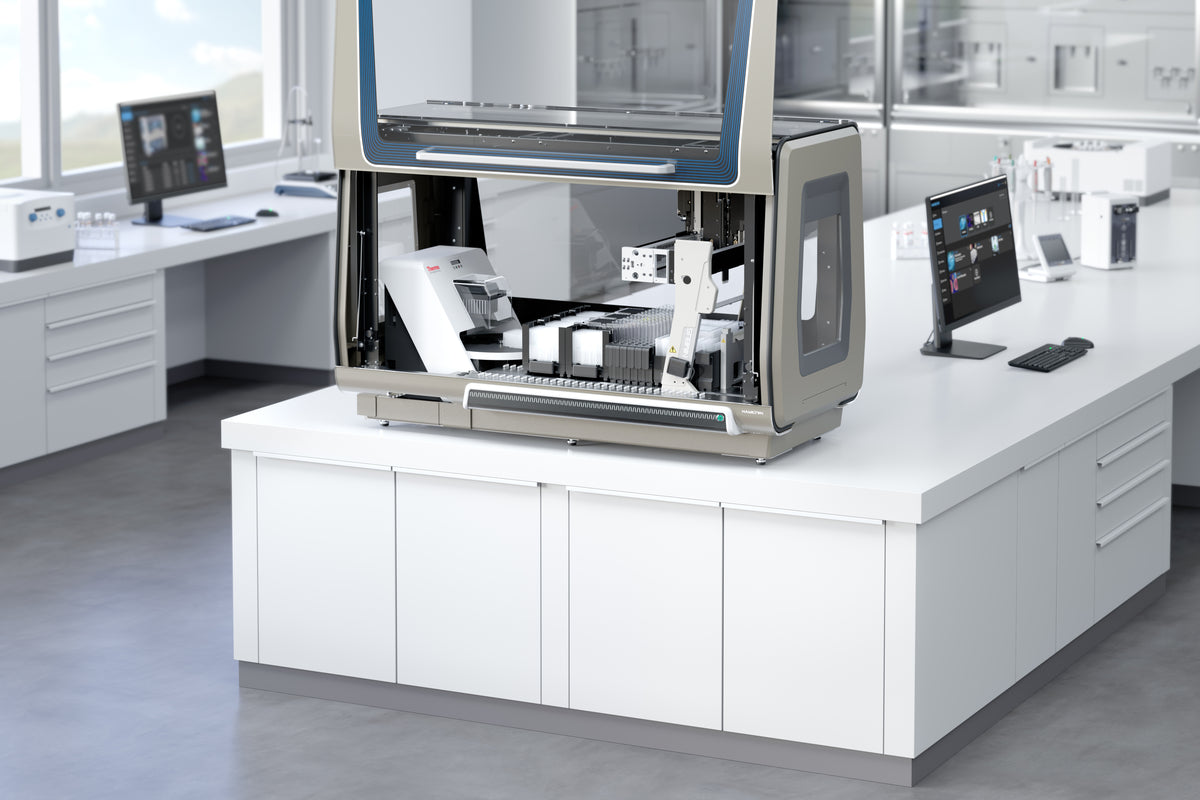

Explore the NIMBUS Presto
Set a solid foundation for various downstream processes and achieve top-quality target nucleic acid yields with hardware supporting full walk-away workflows.
KingFisher Presto Device
Interchangeable heads with 24 or 96 Magnetic Rods enable magnetic particle processing with KingFisher consumables. Also includes a dual position turntable and heating block.
Plate and Tip Storage
Dedicated positions for KingFisher deep-well plates and tip combs as well as for Hamilton pipetting tips.

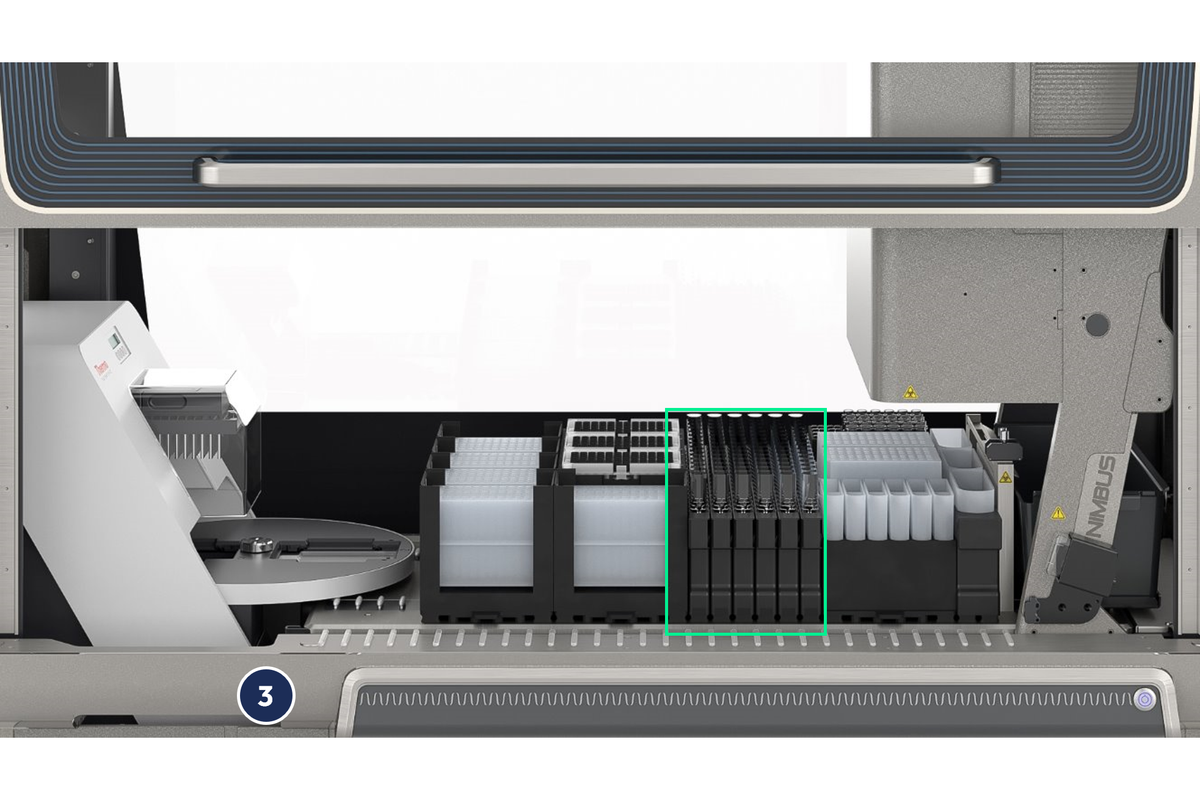

Configurable Sample Loading Area
Primary sample container loading supports small and large tubes or plate input formats, across 6-tracks.
Reagent and Processing Positions
Dedicated locations for reagent storage in tubes, small and large reservoirs. Two plate processing positions for pipetting steps.
Transportation Tool
The Hamilton CO-RE Gripper facilitates stable and precise plate transport steps from and to any deck position.
Automated Loading and Scanning
Sample and reagent traceability is given by the fully autoloadable tray and barcode verification to prevent any mix-ups.
Specifications
NIMBUS Presto
NIMBUS ID Presto
Height
83.1 cm to 1.24 m (2 ft, 8.72 in to 4 ft, 0.82 in)
83.1 cm to 1.24 m (2 ft, 8.72 in to 4 ft, 0.82 in)
Width
70.9 cm (2 ft, 3.91 in)
70.9 cm (2 ft, 3.91 in)
Depth
1.36 m (4 ft, 5.5 in)
1.36 m (4 ft, 5.5 in)
CO-RE Gripper
Standard
Standard
Sample Loading
Manual
Manual
1 mL Channels
4
4
Pipetting Range 1
1 µL - 1000 µL
1 µL - 1000 µL
Ordering Information
Part No.
Description
49000-38
NIMBUS Presto Base
49000-47-03
ID NIMBUS Presto
Specifications
Dimensions
W 70.9 cm (2 ft, 3.91 in) × D 1.36 m (4 ft, 5.5 in) × H 83.1 cm to 1.24 m (2 ft, 8.72 in to 4 ft, 0.82 in)
