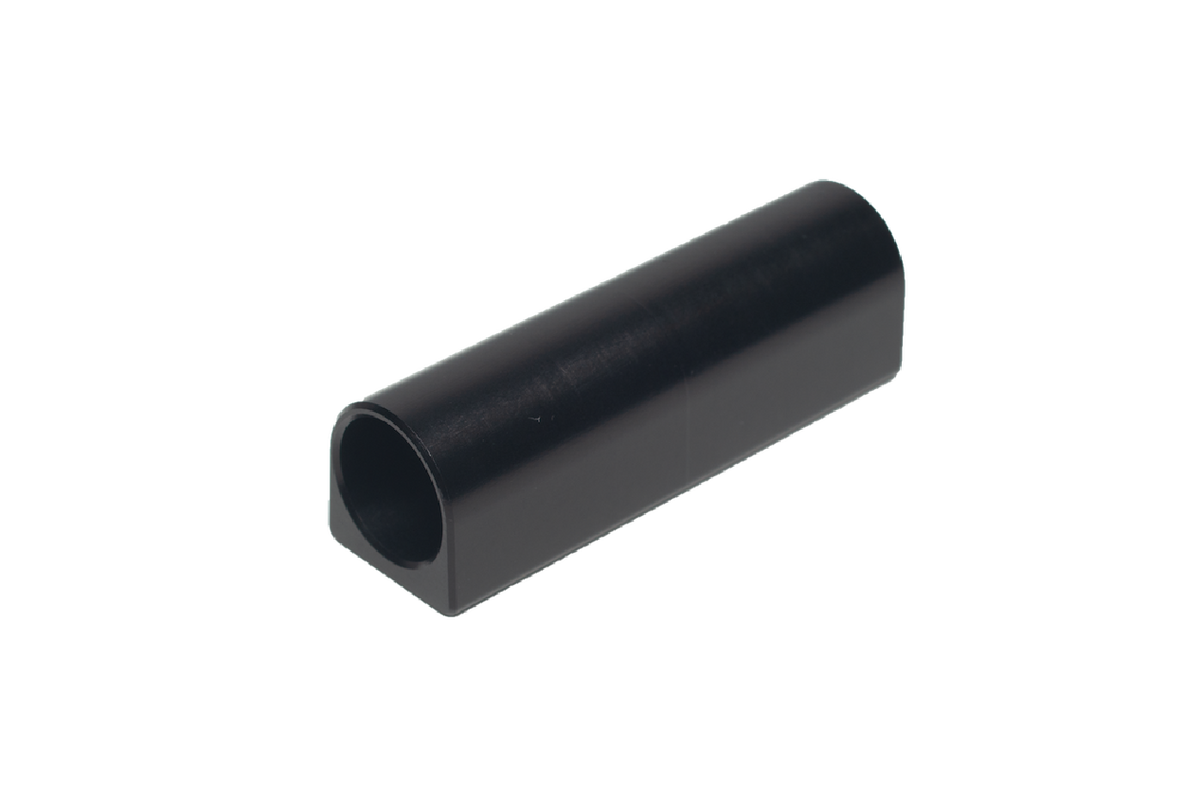

The NanoAssemblr™ Ignite and Ignite+ systems are designed for seamless operation with metal sleeve inserts called heating packages. These metal sleeves, strategically placed around the syringe, ensure optimal thermal contact between the syringe heaters of the system and syringes of varying sizes.
Heating package inserts are specific to the instrument. See the order table for more information.
Each NanoAssemblr™ Ignite heating package insert is labeled with a size. The table below shows which insert is appropriate for each compatible syringe manufacturer.
Each NanoAssemblr™ Ignite+ heating package insert is labeled with a size. The table below shows which insert is appropriate for each compatible syringe manufacturer.
Syringe size
Heating insert size
BD
B Braun Injekt
B Braun Omnifix
Terumo
Shinva Ande
KDL
WEGO
KOVAX
1 mL
1 mL
1 mL
1 mL
1 mL
3 mL
1 mL
x
3 mL
2 mL
x
x
x
x
3 mL
3 mL
3 mL
x
2.5 mL
x
x
x
x
x
x
x
x
3 mL
3 mL
x
3 mL-O
3 mL
3 mL
x
x
x
5 mL
5 mL
5 mL
5 mL
5 mL-T
5 mL
5 mL
5 mL
x
10 mL
10 mL
10 mL
10 mL
10 mL
10 mL
10 mL
10 mL
x
20 mL
20 mL
20 mL
20 mL
20 mL
x
x
x
x
30 mL
✓
x
✓
✓
x
x
x
x
X: Syringe not suppotred by Ignite+ instrument
✓: No insert is needed for the specified surringe
