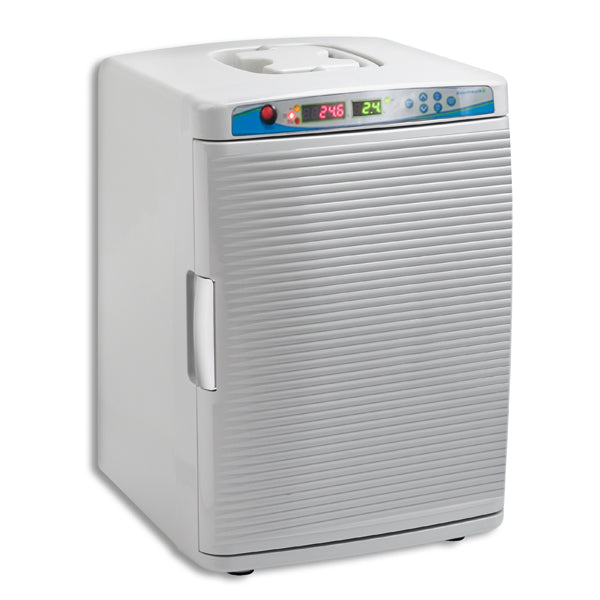

myTemp™ Co2 Mini Digital Incubator, includes 2 stainless steel shelves

At only 13 inches wide, the myTemp Mini CO2 is the smallest and most economical incubator for applications requiring CO2 gas control. Its small footprint makes the incubator ideal for use inside of biological safety cabinets, isolating sensitive cultures or for any laboratory simply trying to conserve bench space. With a thick layer of high efficiency insulation surrounding the chamber, the incubator is also ideal for transportation of cells. Once power has been disconnected, the incubator maintains temperature levels within 10% of the set parameter for up to 1 hour*. In addition each model includes a 12V vehicle power adapter for operating the instrument in a car, boat, etc. Both temperature and CO2 percentage are digitally adjustable and displayed in real time on the large LED control panel. This panel also features a "Cal" function, for easy in-lab calibration of the temperature or CO2. In addition, humidity (up to 80%) can be added to the chamber by inserting the included (stainless steel) humidity reservoir. The CO2 level is constantly monitored using dual beam infrared sensing technology. In the event of a drop in CO2 , audible and visual alarms are triggered, notifying the user of the error. Despite its small size, the incubator features a relatively large 20L chamber with the capacity for flasks and bottles up to 2 liters. Two removable, stainless-steel shelves are included. The shelves are perforated to improve airflow within the chamber. * If disconnected from the CO2 supply, CO2 percentage decreases by approx. 1% /30 min

• Digital control of temperature and CO2
• Personal sized, 13 x 14.5"³ footprint (20L)
• Accepts bottles and flasks up to 2L
• Includes 2 stainless steel shelves
• Dual beam, infrared sensor

Specifications

Temperature Range	Ambient -10°C to 55°C
Temperature Accuracy	0.25°C (at 37°C)
Temperature Uniformity	0.5°C (at 37°C)
Temperature Increments	0.1°C
CO2 Range	0 to 20%
CO2 Sensor	Dual beam infrared
CO2 Accuracy	0.1% (at 5%)
Humidity	70 to 80%
Exterior	13.2 x 14.5 x 18.7 in. / 33.5 x 37 x 47.5 cm
Interior	10.3 x 9.3 x 12.8 in. / 26 x 23.5 x 32.5 cm
Capacity	20L (0.7 cu. ft.)
Weight	15 lbs / 6.5 kg
Electrical	100 to 240V 50-60 Hz
Warranty	2 Years
Temperature Range	Ambient +5° to 70°C
Orbit	2mm
Mixing Speed (4-Plate)	100 to 1500rpm
Mixing Speed (2-Plate)	100 to 1200rpm
Temperature Increment	0.1°C
Temperature Accuracy	±0.2°C
Temperature Uniformity	±0.5°C
Speed Increment	10 rpm
Max. Plate Height (4-Plate)	46 mm
Max. Plate Height (2-Plate)	20 mm
Dimensions (4-Plate)	12.6 x 13.8 x 7.3 in. / 32 x 35 x 18.5 cm
Dimensions (2-Plate)	11 x 10.6 x 5.5 in. / 28 x 27 x 14 cm
Weight	18 lbs (8kg)
Timer	1 min. to 99 hours 99min. / continuous
Electrical (4-Plate)	115 or 230V 50-60Hz; 600W
Electrical (2-Plate)	100 to 240V 50-60Hz; 500W
Warranty	2 years
