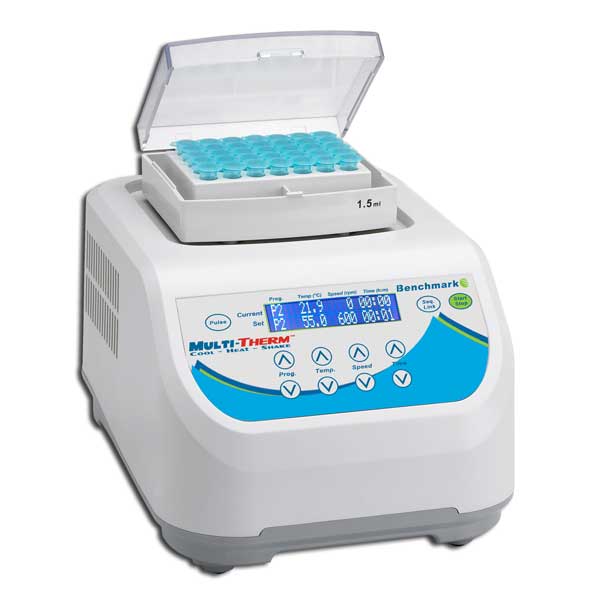

MultiTherm Shaker

The MultiTherm shaker is a temperature controlled vortexer, useful for a variety of molecular biology applications. Despite its modest 8 x 11 in. footprint, all popular tubes and plates are compatible, including as many as six 50 ml tubes. Speed, time and temperature settings are continuously visible on the LCD, simultaneously showing both actual and selected values. Integral over-temperature control ensures long life, safety and sample integrity. Blocks are sold separately.

• Temperature control from 0 to 100°C
• Exchangeable blocks, for tube sizes 0.2 to 50 ml
• Precision contoured wells for uniform thermal transfer
• Two models: Heat/Cool or Heat only
• Sequence link function, links/repeats programs (HC model only)
• Blocks sold separately

Specifications

Speed	200 to 1500 rpm (or off)
Orbit	3mm
Temp. Range (H5000-HC)	Ambient -20 to 100°C
Temp. Range (H5000-H)	Ambient +5 to 100°C
Temperature Increment	0.1°C
Temp. Accuracy	+/- 1.0°C
Capacity	Per Selected Block
Speed Increment	10 rpm
Heating Rate	5.0°C per. min.
Cooling Rate	2.5°C per. min.
Dimensions: (w x d x h)	8.25 x 11.5 x 8.25 in. / 21 x 29 x 21 cm
Weight	18 lbs (8kg)
Timer	1 min. to 99 hours 99min. / continuous
Electrical	115 or 230V 50-60Hz; 500W
Warranty	2 Years
