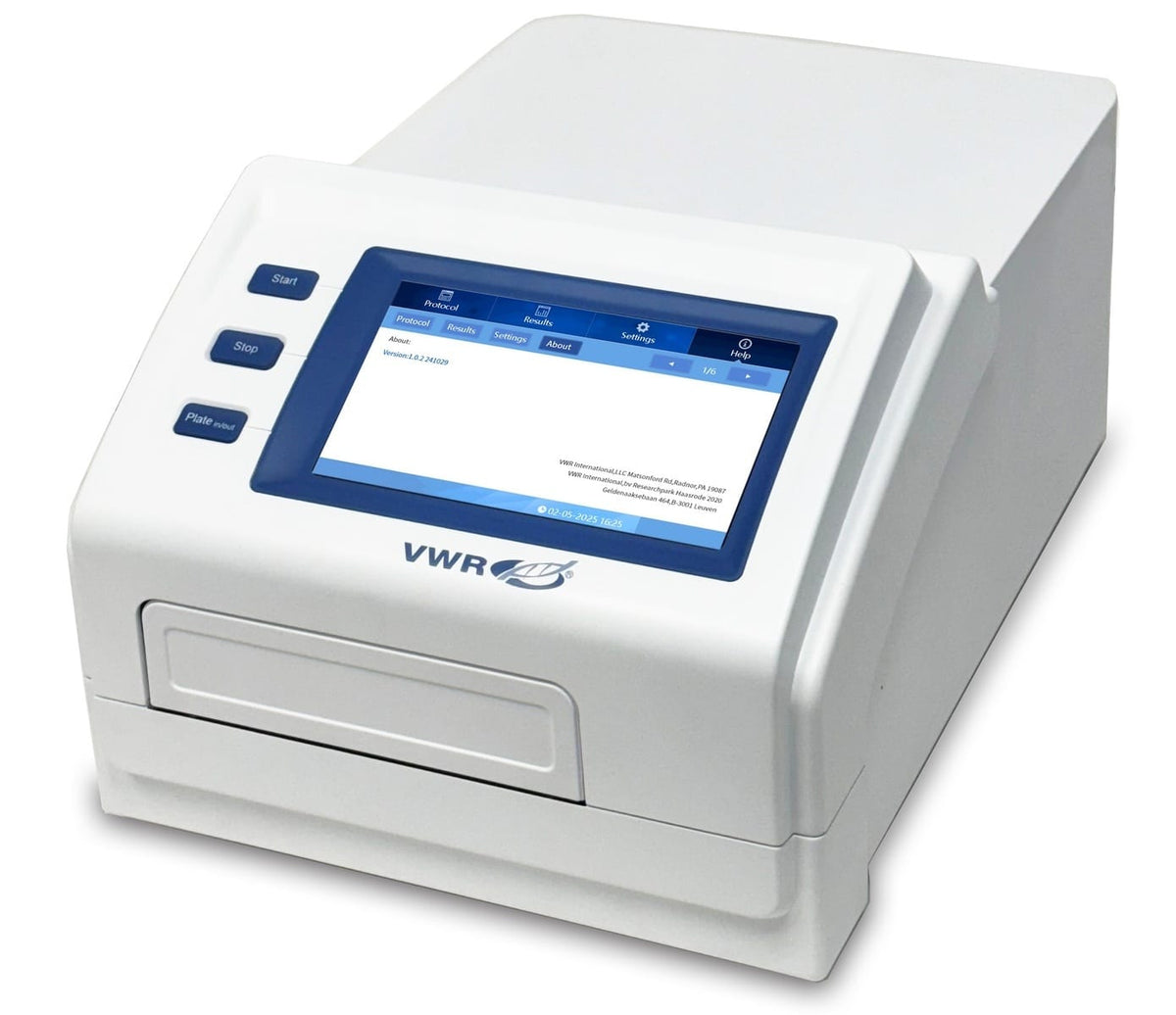

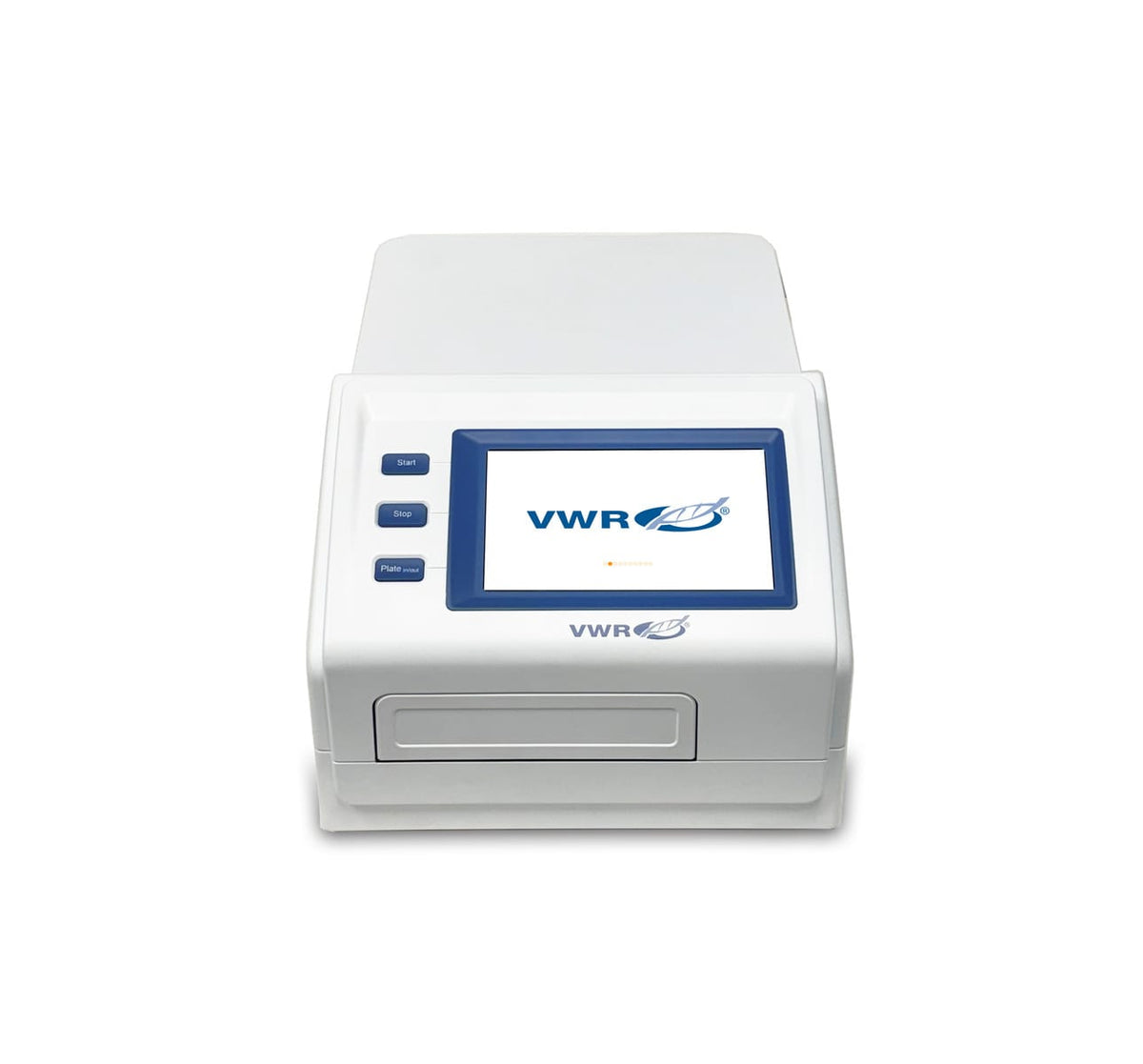

Microplate Absorbance Readers

The VWR® microplate reader and VWR® incubated microplate reader are designed for visible range absorbance readings using 96-well plates.

• Intuitive, 7" color touch screen control panel
• Filter based system with wavelength range from 340 to 750 nm
• Absorbance range 0.0 to 4.000 Abs
• Eight-channel vertical optical path, with zero dispersion
• Integrated, multi-speed plate shaker

Operates as a stand alone system, with USB flash drive for data transfer.

Two-year warranty.

Specifications

• Light source: Quartz-halogen lamp 6 V/10 W
• Wavelength range: 340 -750 nm (405, 450, 492 and 630 nm filters included)
• Display: 7" touch screen (800×480 pixels)
• Half bandwidth of filters: 3 - 9 nm
• Interfaces: USB ports for PC, printer, mouse and flash drive
• Linearity: 0 - 2.000 Abs <+1%; 2 - 4.000 Abs <+2%, (405 nm)
• Precision: CV</= 0.2% (0 - 3) AbsCV</= 0.10% (3 - 4) Abs
• Read-out range: 0 - 4.000 Abs
• Scan speed: <6 seconds for 96 well plate
• Shaking: 3 modes: slow (3.5 Hz), medium (4.7 Hz), fast (7.0 Hz)
• Voltage: 100 - 240 V
• W×D×H: 44.0×29.5×22.5 cm (17×11.6×8.75")
• Weight: 10 kg (22 lbs.)

Documents

• Manual VWR® Microplate Absorbance Readers (Manual)
• VWR Microplate Absorbance Reader (Brochure)

Ordering Information
