Manual Valve, 4-Port "T" Flow Path (4-3), PTFE/CTFE, HV

Vendor: Hamilton Company

SKU: 86730

528.00 NIS
Stock on Request

In stock

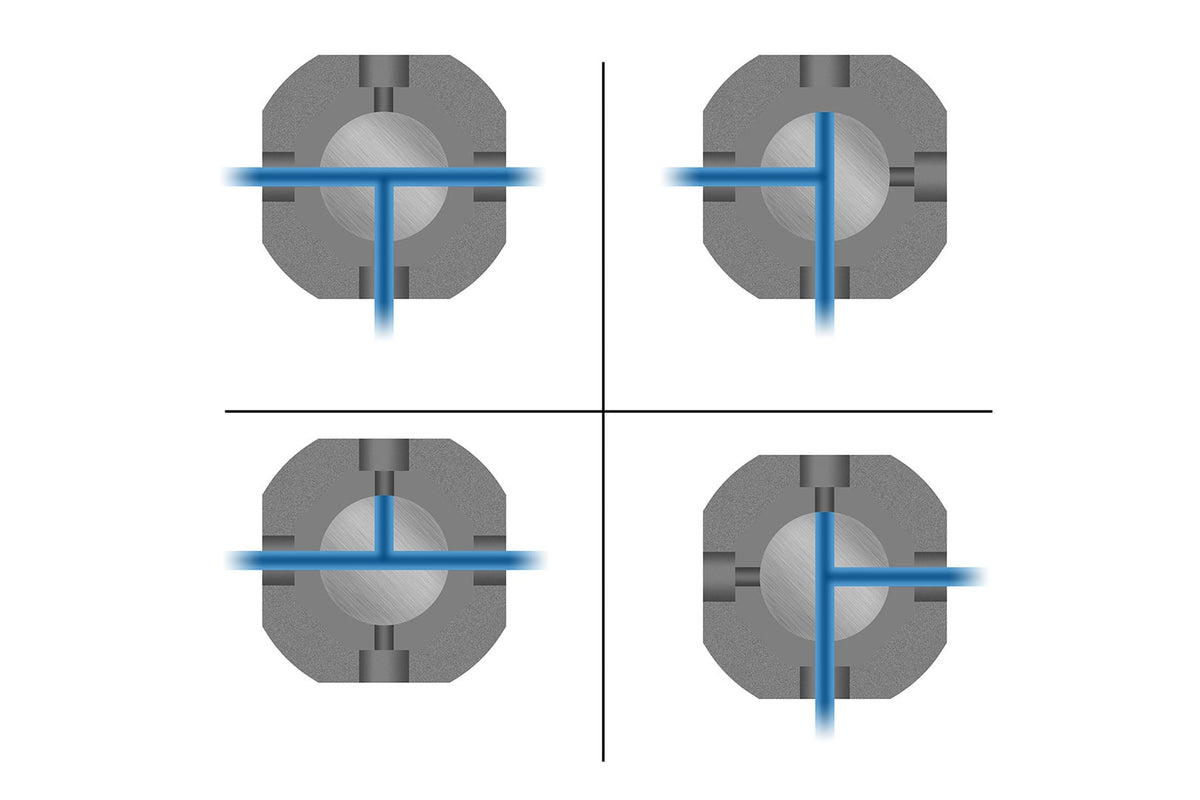

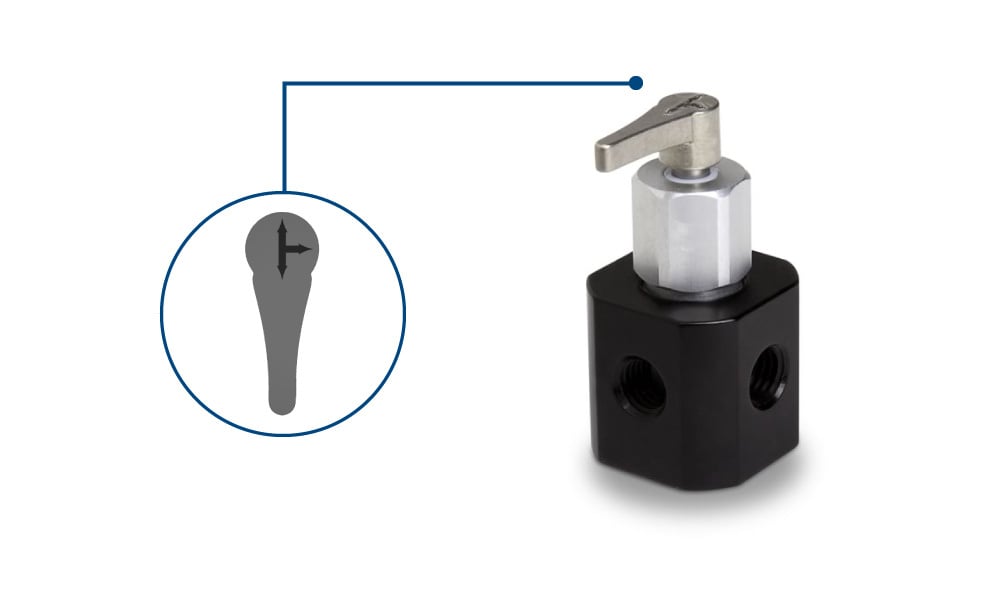

Featuring four 1/4"-28 flat-bottom ports positioned 90° apart, this compact and chemically resistant plug valve (PN: 86730) offers a "T" flow path for manual flow control between 3 adjacent ports.

Specifications

Valve Model 4-3
Valve Model Description "T" Flow Path 4-ports
Fluid Path PTFE/CTFE
Valve Size HV
Nominal Port Diameter 0.059 inch (1.5 mm)
Valve Outer Body Dimension 0.75 inch (19.1 mm)
Housing Material Aluminum
Fluid Path Dead Volume 25.3 µL
Actuated Manual
Break Away Torque 15 oz-in (105.9 mNm)
Panel Mounting No
Thread Depth 0.219 inch (5.6 mm)
Threaded Connection ¼-28
Operating Temp High 38 °C (100 °F)
Operating Temp Low -12 °C (10 °F)
Operating Pressure 0 to 100 psig (0 to 6.9 bar)
Storage Temp High 38 °C (100 °F)
Storage Temp Low -18 °C (0 °F)

Documents

Specifications
  • Fluid path PTFE/CTFE
  • Sub category Manual Valves
