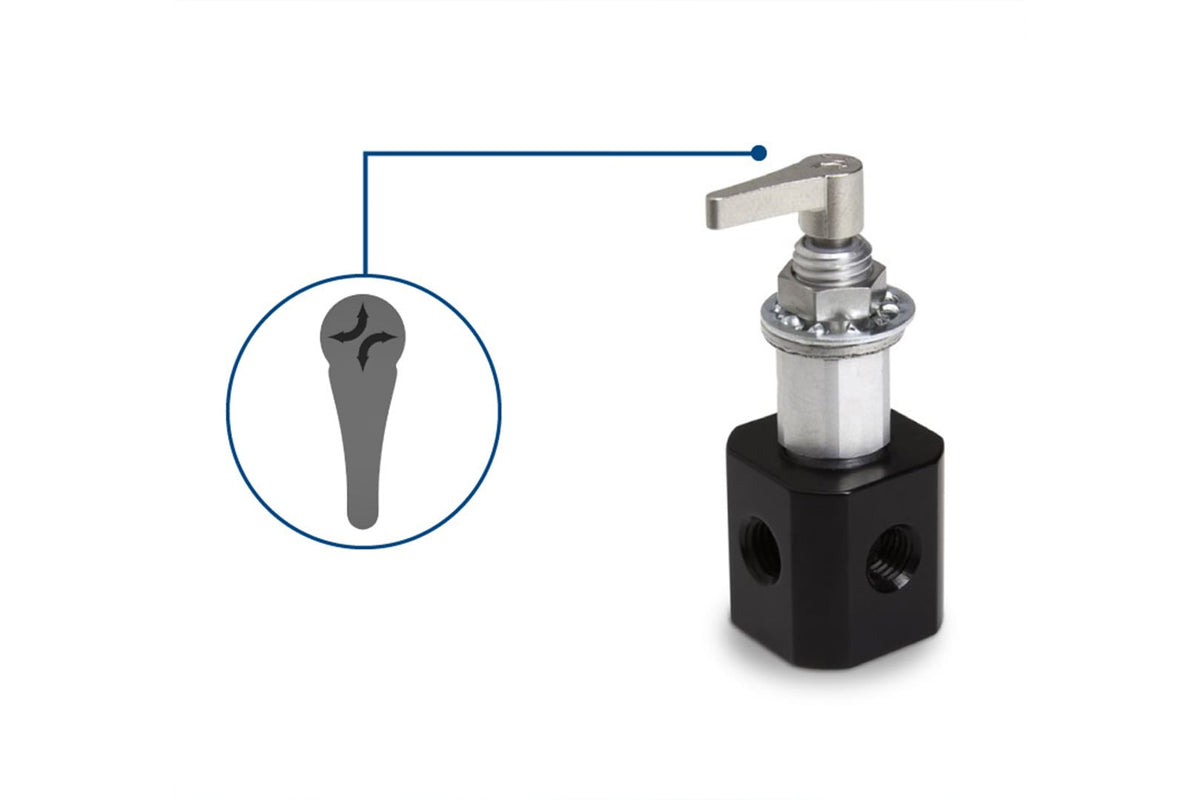

Manual Valve, 4-Port Loop Flow Path (4-4), PTFE/CTFE, HVP

Name: Manual Valve, 4-Port Loop Flow Path (4-4), PTFE/CTFE, HVP
Brand: Hamilton Company
SKU: 86779
Price: 558.00 ILS
Availability: InStock

Vendor: Hamilton Company

SKU: 86779

558.00 NIS

Stock on Request

In stock

Manual valves offer reliable fluid control for a wide range of laboratory applications.
These durable valves, constructed of chemically resistant materials, provide precise on/off switching or flow path selection through manual operation.
Available in various port configurations and materials, these valves offer a cost-effective solution for basic fluid handling needs where automation is not required.

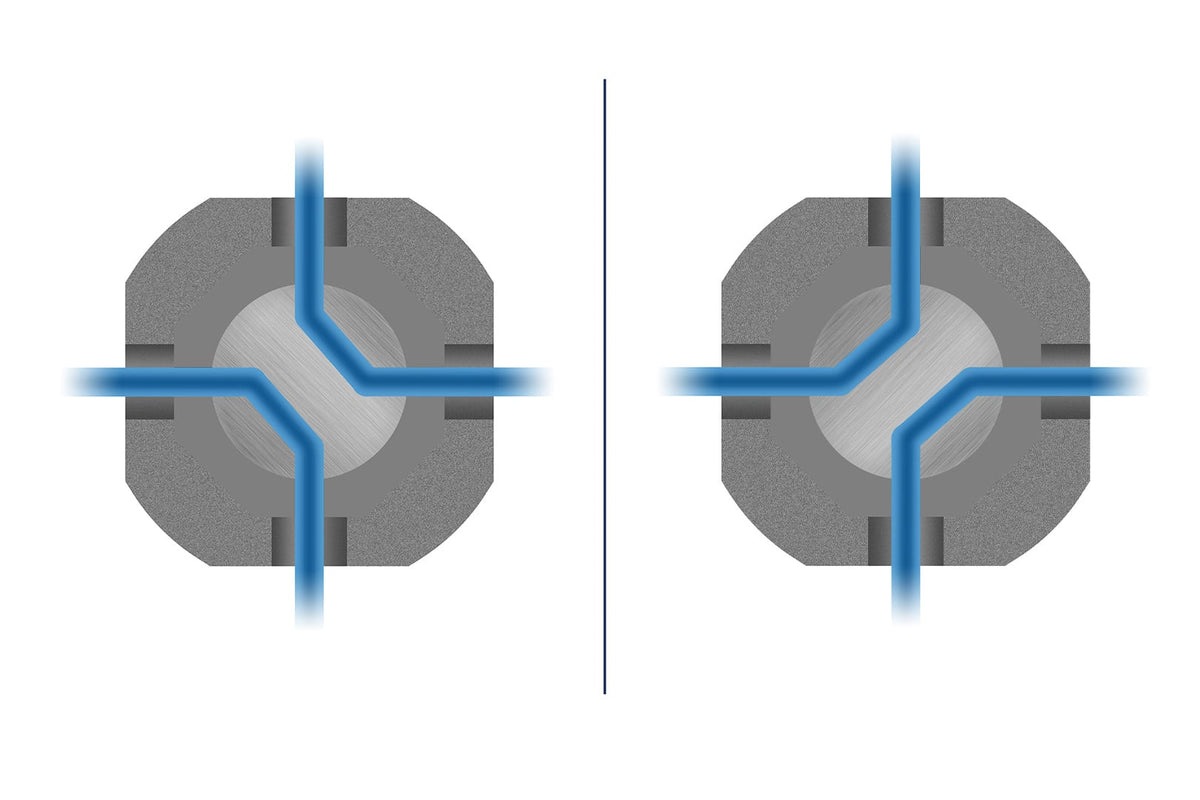

The loop flow path connects any two adjacent ports.

Featuring a rotating PTFE plug for reliable flow path selection, these valves offer excellent durability and chemical compatibility.

Long life expectancy
Chemically resistant flow path
Low dead/swept volume
Ideal for higher pressure applications
No lubrication required

The plug valve design is recommended for salty solutions and liquids that crystalize when dry.

PTFE Plug Valves
4 or fewer ports
Locking nut included for panel mounting

Specifications

Valve Model	4-4
Valve Model Description	Loop Flow Path 4-ports
Fluid Path	PTFE/CTFE
Valve Size	HVP
Nominal Port Diameter	0.059 inch (1.5 mm)
Valve Outer Body Dimension	0.75 inch (19.1 mm)
Housing Material	Aluminum
Fluid Path Dead Volume	14 µL
Actuated	Manual
Break Away Torque	15 oz-in (105.9 mNm)
Panel Mounting	Yes
Panel Thickness	0.150 inch (3.8 mm)
Thread Depth	0.219 inch (5.6 mm)
Threaded Connection	¼-28
Operating Temp High	38 °C (100 °F)
Operating Temp Low	-12 °C (10 °F)
Operating Pressure	0 to 100 psig (0 to 6.9 bar)
Storage Temp High	38 °C (100 °F)
Storage Temp Low	-18 °C (0 °F)

Documents

Specifications

Fluid path PTFE/CTFE
Sub category Manual Valves
