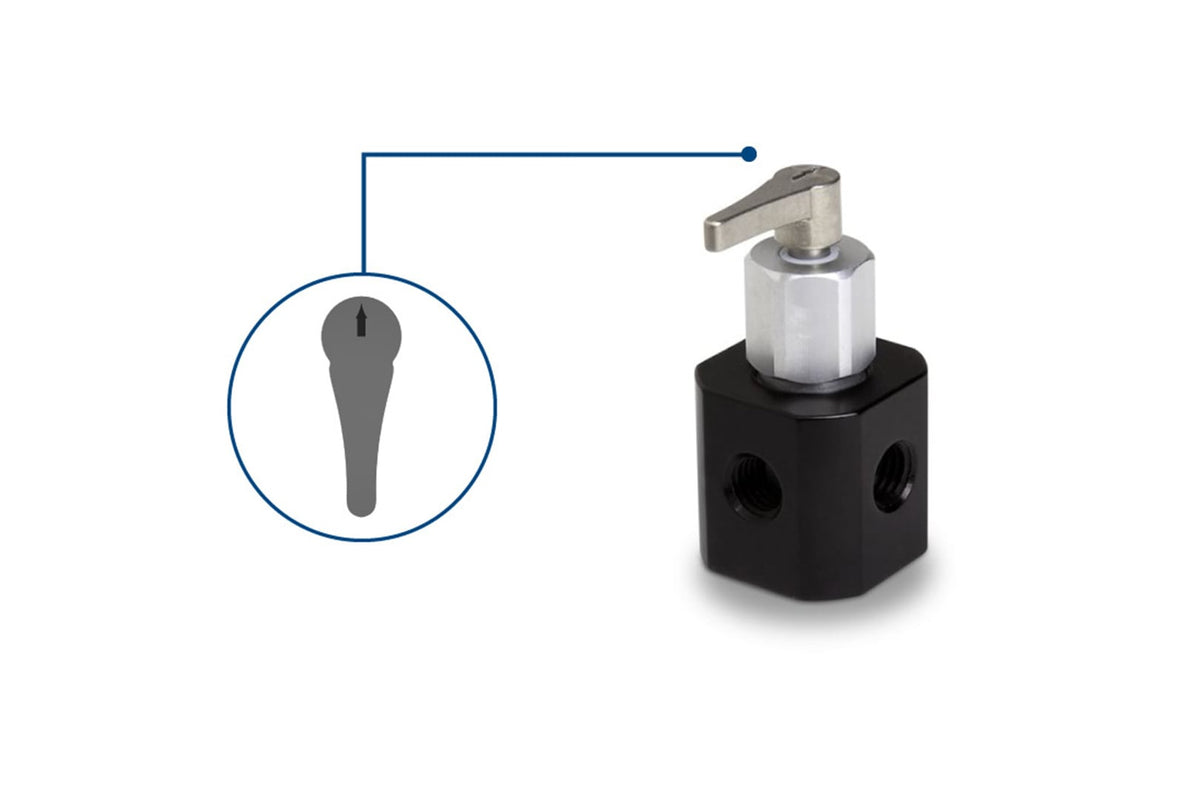

Manual Valve, 2-Port Distribution 90° Flow Path (2-5), PTFE/CTFE, HV

Name: Manual Valve, 2-Port Distribution 90° Flow Path (2-5), PTFE/CTFE, HV
Brand: Hamilton Company
SKU: 86736
Price: 558.00 ILS
Availability: InStock

Vendor: Hamilton Company

SKU: 86736

558.00 NIS

Stock on Request

In stock

Manual valves offer reliable fluid control for a wide range of laboratory applications.
These durable valves, constructed of chemically resistant materials, provide precise on/off switching or flow path selection through manual operation.
Available in various port configurations and materials, these valves offer a cost-effective solution for basic fluid handling needs where automation is not required.

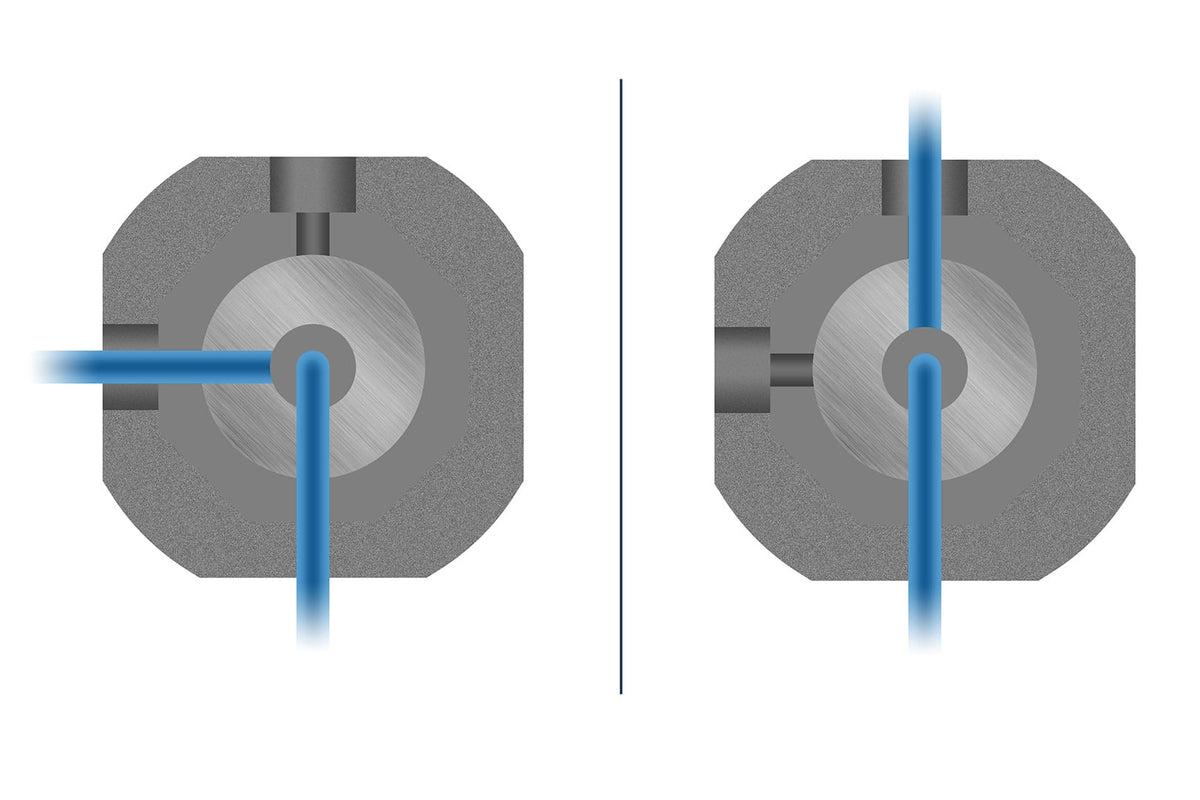

The 90° flow path connects two ports located 90° from one another.

Featuring a rotating PTFE plug for reliable flow path selection, these valves offer excellent durability and chemical compatibility.

Long life expectancy
Chemically resistant flow path
Low dead/swept volume
Ideal for higher pressure applications
No lubrication required

The plug valve design is recommended for salty solutions and liquids that crystalize when dry.

Hamaflon or PTFE Plug Valves
4 or fewer ports
No mounting flange

Specifications

Valve Model	2-5
Valve Model Description	Distribution Flow Path 2-ports(90°)
Fluid Path	PTFE/CTFE
Valve Size	HV
Nominal Port Diameter	0.059 inch (1.5 mm)
Valve Outer Body Dimension	0.75 inch (19.1 mm)
Housing Material	Aluminum
Actuated	Manual
Break Away Torque	15 oz-in (105.9 mNm)
Panel Mounting	No
Operating Temp High	38 °C (100 °F)
Operating Temp Low	-12 °C (10 °F)
Operating Pressure	0 to 100 psig (0 to 6.9 bar)
Storage Temp High	38 °C (100 °F)
Storage Temp Low	-18 °C (0 °F)

Documents

Specifications

Fluid path PTFE/CTFE
Sub category Manual Valves
