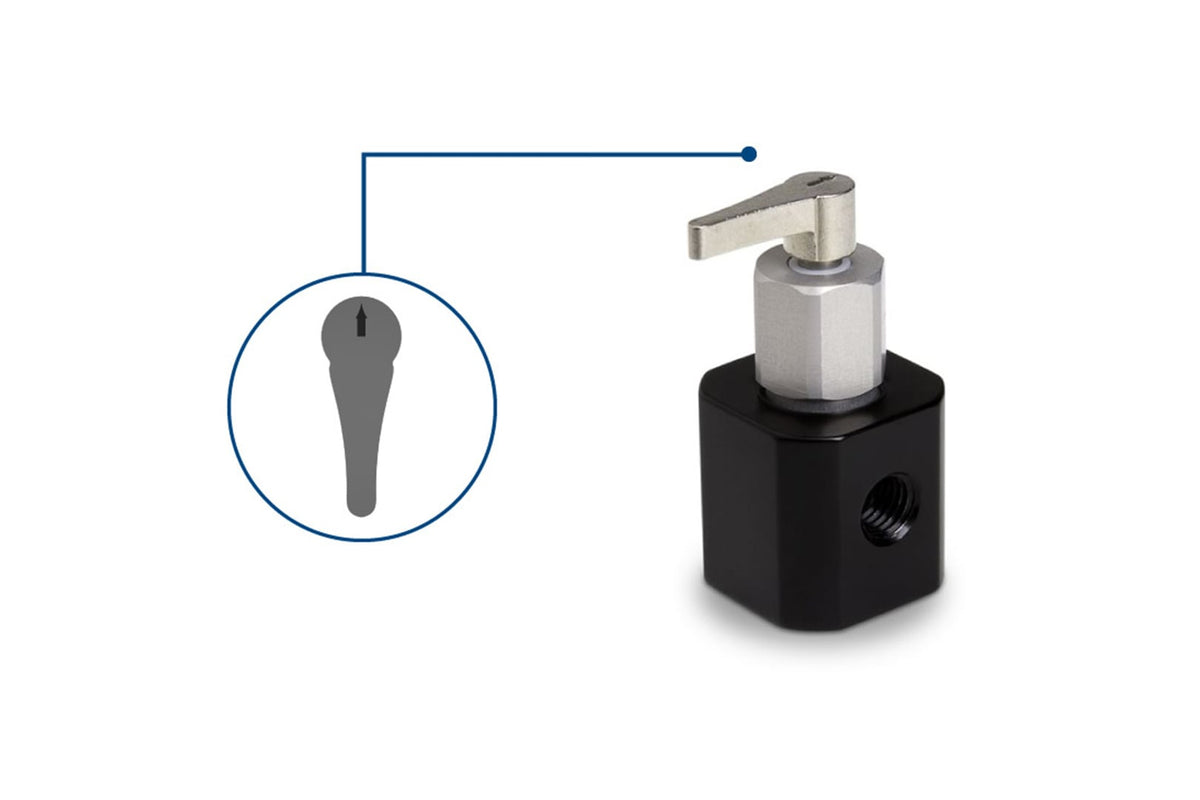

Manual Valve, 2-Port Distribution 180° Flow Path (1-5), PTFE/CTFE, HV

Vendor: Hamilton Company

SKU: 86735

558.00 NIS
Stock on Request

In stock

Featuring one common port and two 1/4"-28 flat-bottom distribution ports positioned 180° apart, this compact and chemically resistant plug valve enables distribution of fluid from one common port to one of the two distribution ports at a time.

Specifications

Valve Model 1-5
Valve Model Description Distribution Flow Path 2-ports(180°)
Fluid Path PTFE/CTFE
Valve Size HV
Nominal Port Diameter 0.059 inch (1.5 mm)
Valve Outer Body Dimension 0.75 inch (19.1 mm)
Housing Material Aluminum
Fluid Path Dead Volume 16.8 µL
Actuated Manual
Break Away Torque 15 oz-in (105.9 mNm)
Panel Mounting No
Operating Temp High 38 °C (100 °F)
Operating Temp Low -12 °C (10 °F)
Operating Pressure 0 to 100 psig (0 to 6.9 bar)
Storage Temp High 38 °C (100 °F)
Storage Temp Low -18 °C (0 °F)

Documents

Specifications
  • Fluid path PTFE/CTFE
  • Sub category Manual Valves
