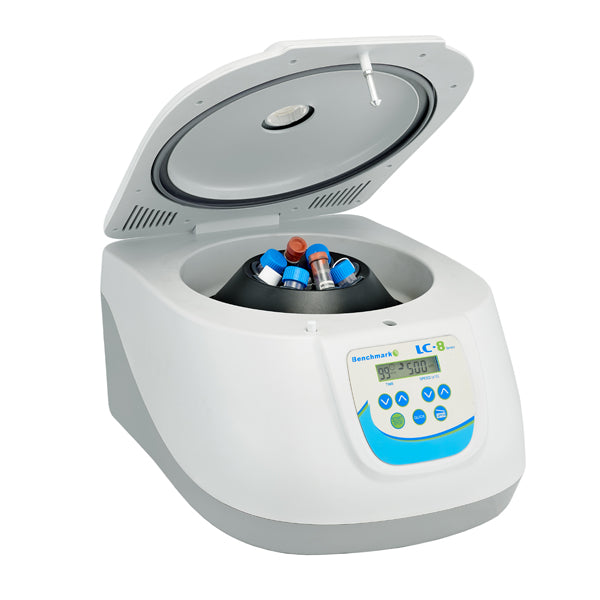

LC-8 Lab Centrifuge with 8 x 15ml rotor

Benchmark"™s LC-8 series of laboratory centrifuges is uniquely designed to meet a wide range of applications in both the clinical and research laboratory. An eight position rotor is included and designed to directly accept 10ml and 15ml test-tubes (conical or round bottom), while optional adapters are also available for use with all popular sizes of blood collection and culture tubes. Unlike most compact centrifuges in this class, the rotor can be easily removed from the chamber for cleaning. The back-lit, liquid crystal display provides full control over the set run time and rotational speed. The rotational speed can be set/viewed in rpm or rcf and acceleration/deceleration levels can be easily adjusted in the advanced settings mode. To ensure safety, the digital microprocessor ensures that the lid has been closed and that the safety lid lock is engaged prior to starting a centrifugation cycle. In addition, an advanced imbalance detection system constantly monitors the balance and vibration, automatically bringing the rotor to a stop if an imbalance is detected.

• Digital Speed control up to 5,000 rpm
• Safety lid-lock, prevents opening lid until rotor stops
• Unique air-flow design keeps samples cool
• 8 tube capacity, for tubes up to 15ml

Specifications

Speed	400-3500 rpm / 1500 xg
Capacity	8 x 15 ml
Accel / Decel	9 sec. / 25 sec.
Speed increment	100 rpm or 100 rcf
Timer	20 sec. to 99 min. / cont.
Momentary	Yes
Dimensions	11.6 x 14.4 x 8.3 in.
Weight	15 lbs / 6.8 kg
Electrical	115V or 230V 50-60Hz; 150W
Warranty	2 Years
Diameter	2mm
Process capacity	0.1 to 5 ml
Power ratio	1 to 45%

Documents

• Brochure (PDF)
