Flow kits for ÄKTA ready™ chromatography system 450, ÄKTA ready™ chromatography system and ÄKTA ready™ chromatography system XL are available for isocratic and gradient elution and support a wide range of flow rates.
- Improved economy and productivity due to simpler procedures, reducing downtime between products/batches.
- Accompanied by extensive product documentation.
- Simple exchange of the complete flow path eliminates the need for system cleaning including method development and validation.
- Risk for cross-contamination between products/batches is minimized.
- Flow kits can be modified on request, for example choosing ReadyMate™ or AseptiQuick™ disposable aseptic connectors instead of Tri‑Clamp™ connectors.
ÄKTA ready™ system 450 data file | ÄKTA ready™ system data file | ÄKTA ready™ system XL data file

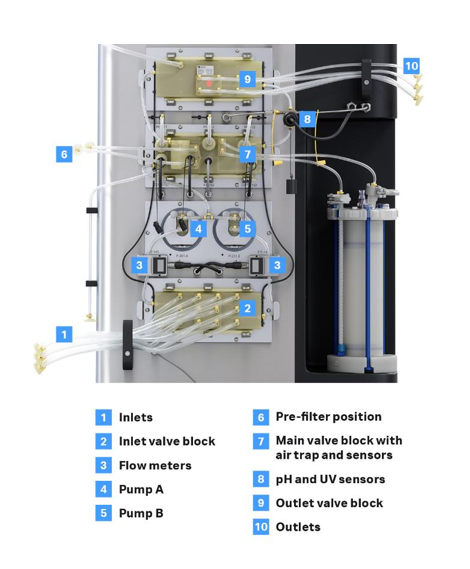

Flow kit for ÄKTA ready™ chromatography system 450

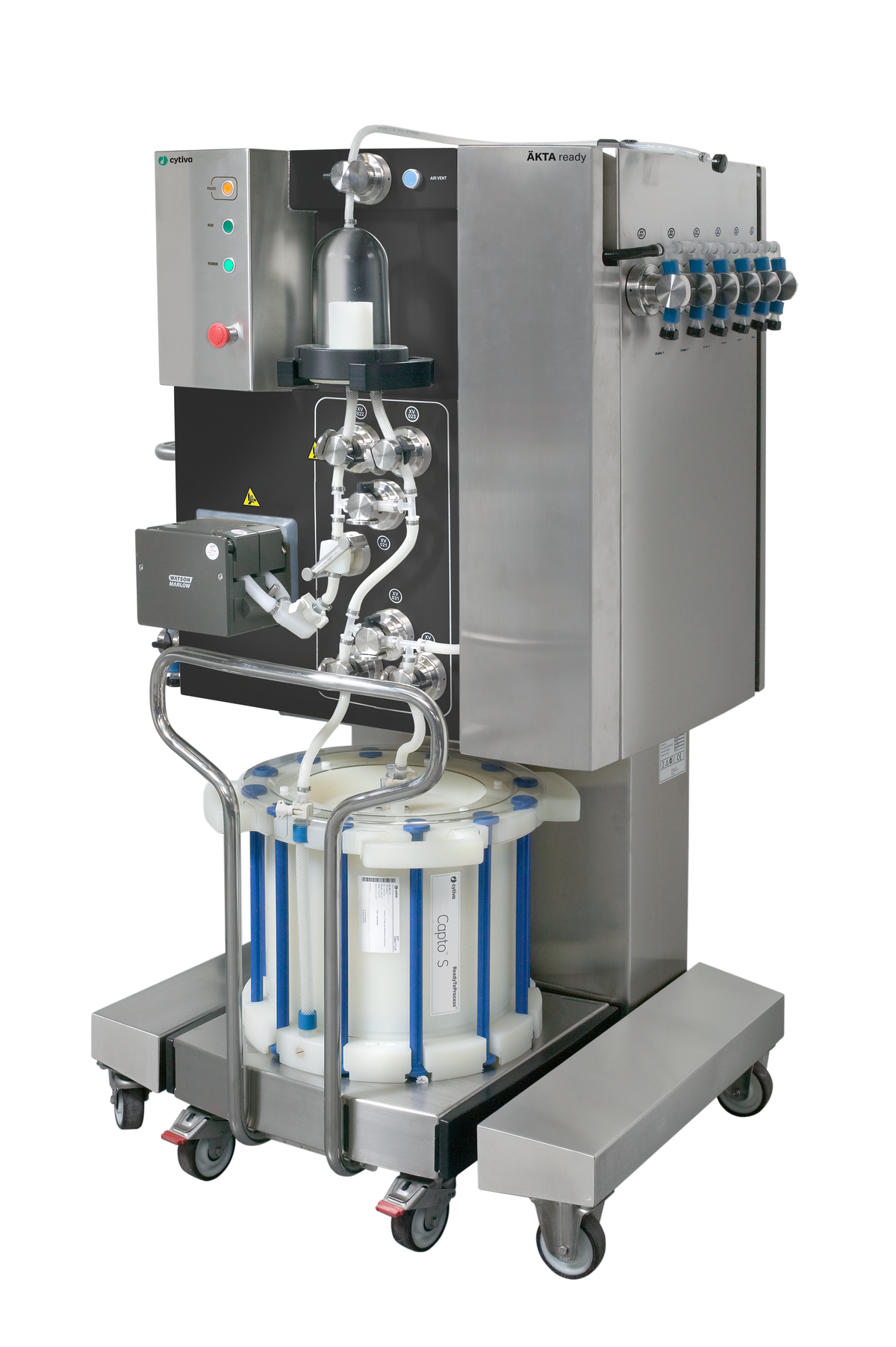

ÄKTA ready™ 450 is designed for small-scale purification. The flow kit is delivered in one piece and can manage flow rates from 5 to 450 mL/min. The installation takes as little as 10 minutes, and the integrated sensors do not require calibration. An installation test confirms that the system has been set up correctly. A fully closed flow kit option is also available. The system can be used with a column volume up to 2.5 L and also includes a column holder for smaller columns.
Flow kit for ÄKTA ready™ chromatography system
ÄKTA ready™ Low Flow Kit manages flow rates of up to 175 L/h using columns typically less than 20 cm in diameter (approximately 5 L column volume).
ÄKTA ready™ High Flow Kit manages flow rates of up to 510 L/h using columns with a diameter typically over 20 cm (approximately 10 L column volume or larger).

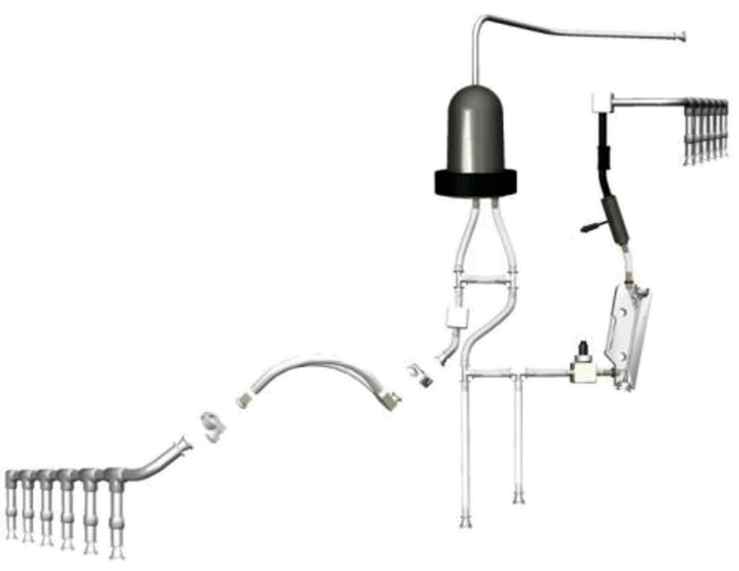

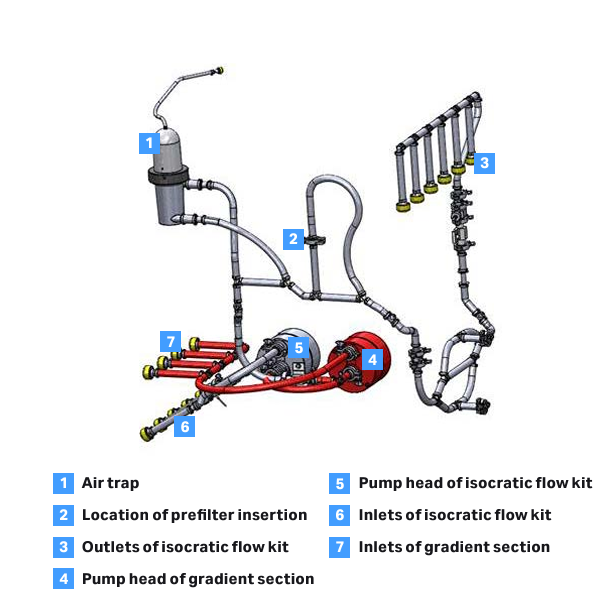

Each isocratic flow kit consists of three separate parts: the inlet manifold, pump tubing, and the main flow path, which are easily assembled when the flow kit is connected to the system. Step-by-step guidance and documentation are provided by the UNICORN™ Installation Wizard.

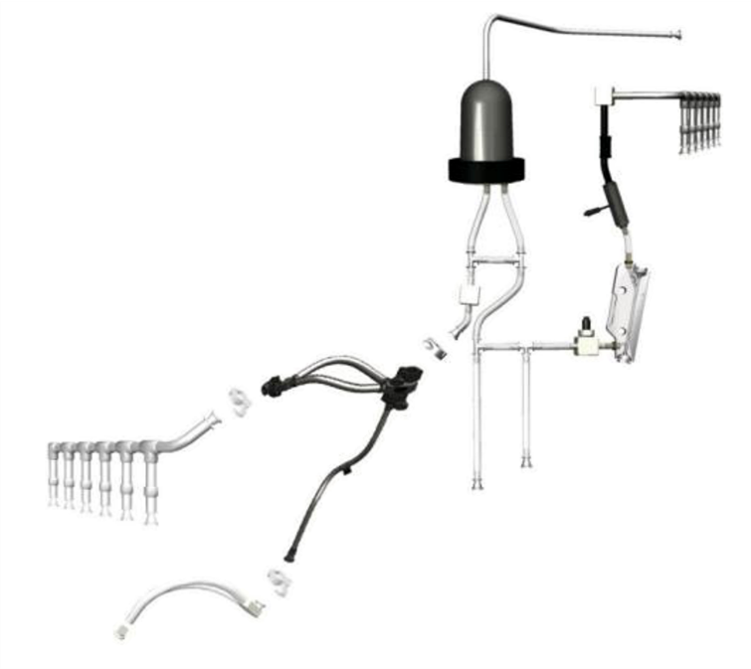

For flow rates up to 175 L/h: Combine ÄKTA ready™ gradient low flow section with the ÄKTA ready™ low flow kit.
For flow rates up to 510 L/h: Combine ÄKTA ready™ gradient high flow section with ÄKTA ready™ high flow kit.

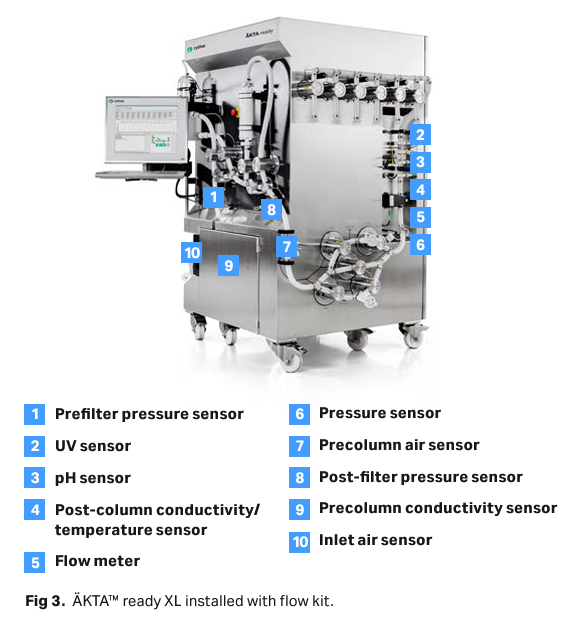

Flow kit for ÄKTA ready™ chromatography system XL
ÄKTA ready™ XL 3/4" Flow Kit manages flow rates of up to 1900 L/h using columns typically less than 80 cm in diameter.
ÄKTA ready™ XL 1" Flow Kit manages flow rates of up to 3500 L/h using columns typically less than 120 cm in diameter.
Each flow kit consists of five parts: the inlet, pre-column, column and outlet manifold, and pump head. These are easily mounted and connected to the system. Step-by-step guidance and documentation are provided in the system manual.
For flow rates up to 1900 L/h: Combine ÄKTA ready™ XL ¾" gradient section with ÄKTA ready™ XL flow kit, ¾".
For flow rates up to 3500 L/h: Combine ÄKTA ready™ XL 1" gradient section with ÄKTA ready™ XL flow kit, 1".
