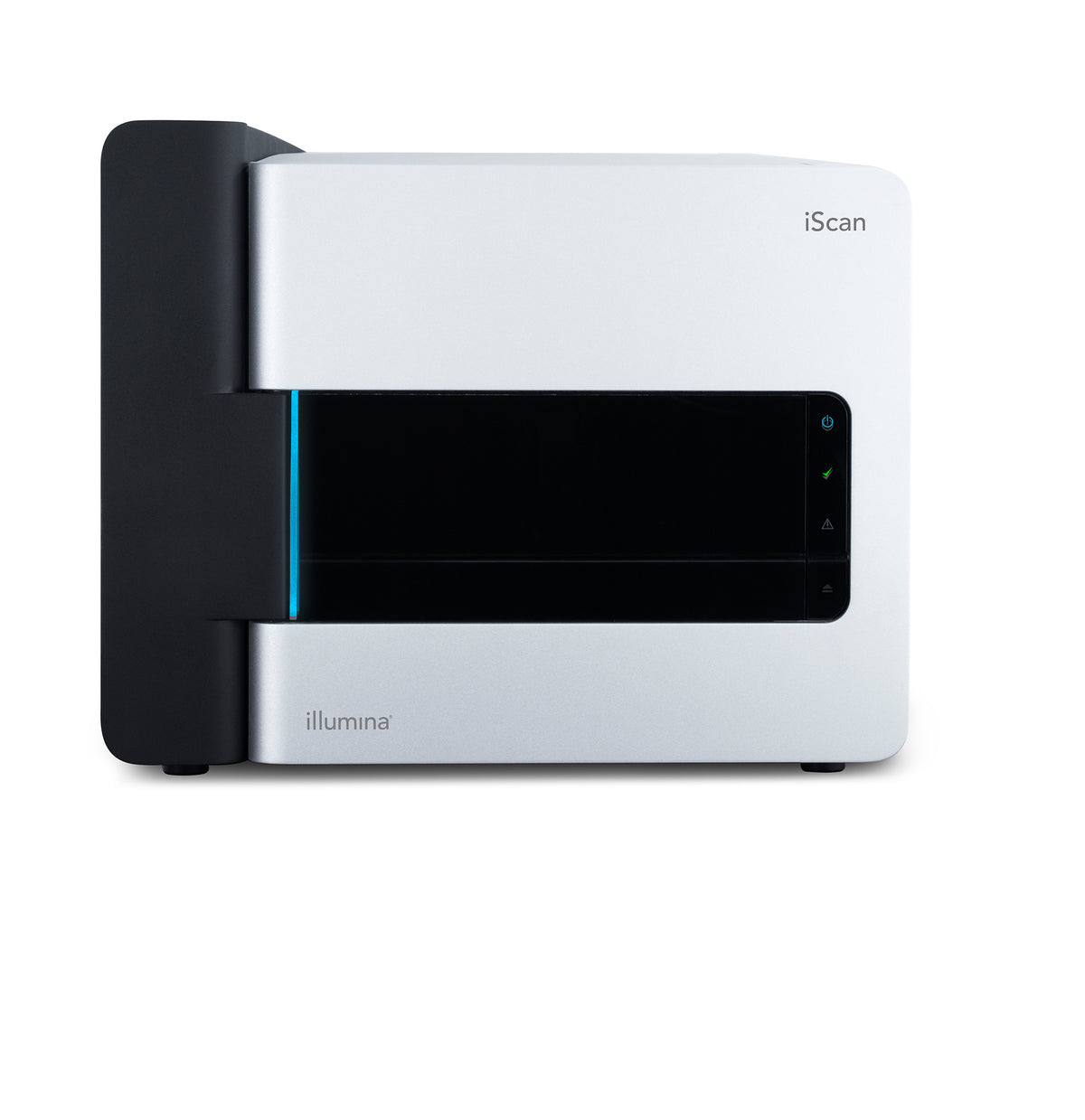

iScan System (110/220V)

Includes the iScan Reader, isolation table, computer, installation, and 12 months warranty to support imaging of Infinium BeadArray products. For use in locations with 100–120 V/220–240 V, 50–60 Hz voltage.

The iScan microarray scanner supports high-throughput BeadChip processing, scanning hundreds to thousands of samples quickly and accurately.

Access a broad range of array-based applications

Specifications

iScan System

Feature—Infinium Global Screening Array-24 BeadChip	Description
Average scan time per sample	1.25 min

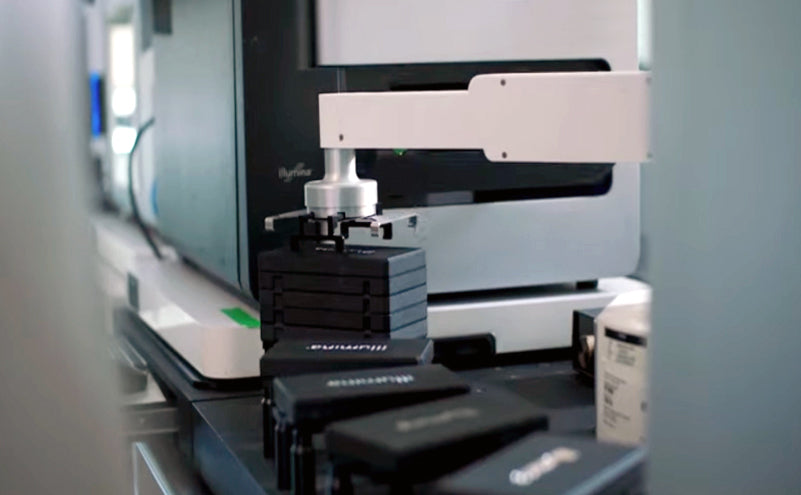

Average scan time per BeadChip (automated)	30 min
Maximum weekly throughput	5670 samples

BeadChip	Approximate scan time per BeadChip	Maximum sample throughput per week
Infinium Global Screening Array-24 BeadChip	30 min	5670
Infinium iSelect HTS-24 BeadChip	30 min	5670
Infinium MethylationEPIC-8 BeadChip	20 min	3024
Infinium Global Diversity Array-8 BeadChip	35 min	1728
Infinium XT iSelect-96 BeadChip	45 min	16,128
