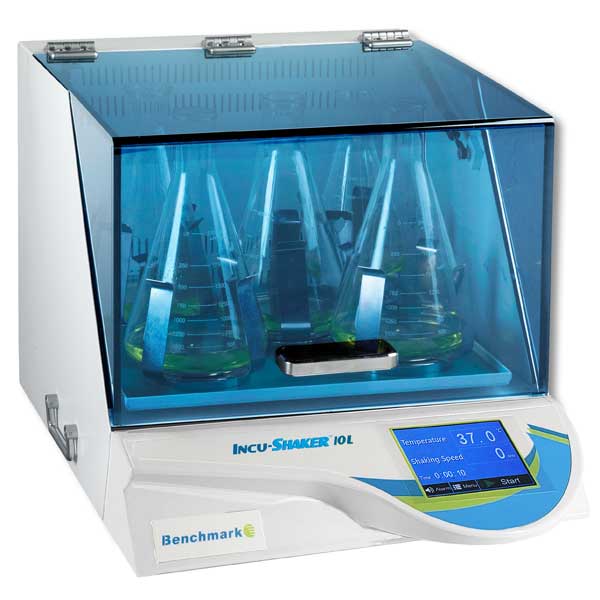

Incu-Shaker™ 10LR (Refrigerated)

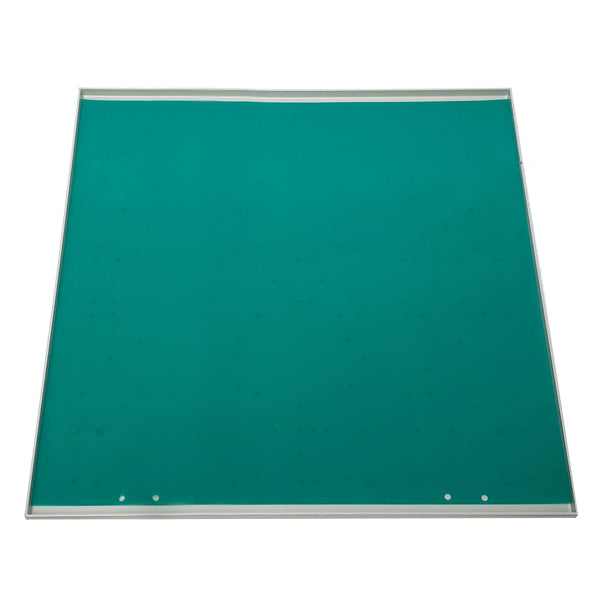

Incu-Shaker™ 10LR is a heavy-duty performer, designed for heavy workloads and continuous use. Its outstanding temperature accuracy and uniformity are supported by proprietary heat distribution technology that ensures that temperatures are precisely maintained throughout the chamber. Inconsistencies due to stratification are reduced to negligible levels and the selected temperature is precisely maintained within 0.25%, even in the corners. The expanded temperature range, down to 12 degrees below ambient, allows for a broad range of applications. The powerful brushless induction drive is designed for years of trouble-free service, even under continuous use conditions with heavy loads. Noise and vibration are minimized by an advanced, computer-designed motor isolation system. Like other Incu-Shaker models, the 10L is built to last. A standard, rubber mat platform is included and is ideal for use with tissue culture flasks, Petri dishes, staining trays, and other flat vessels. The convenient MAGic Clamp™ platform is also available for use with Erlenmeyer flasks and test tube racks. The unique, magnetic attachment method (PATENTED) is the easiest way to instantly change between flask clamps of different sizes.

• Large platform 18 x 18, up to 5 x 2 L
• Exceptional temperature uniformity
• Horizontal circular 19mm orbit for aeration & mixing
• Instantly change flask clamps with MAGic Clamp™ accessories
• Optional shelf for Petri dishes, microplates, etc.
• Refrigerated, holds temperatures as low as 12ºC below room temp.

Specifications

Speed	Variable 30 to 300 rpm
Orbit	19mm / 3/4 in.
Temp. Range	Ambient -12°C to 60°C
Temperature Increment	0.1°C
Temp. Accuracy	±0.1°C
Temp. Uniformity	±1.25°C
Speed Increment	1 rpm
Platform Dimensions	17.8 x 17.8 in./ 45 x 45 cm
Dimensions: (w x d x h)	20 x 31 x 22 in. / 51 x 79 x 56 cm
Weight (10LR)	170 lbs. (77kg)
Lid Open Height	38 in. / 96.5 cm
Timer	1 min. to 48 hours or continuous
Electrical	115 or 230V 50-60Hz; 1.2kW
Warranty	2 Years

Documents

• Brochure (PDF)
