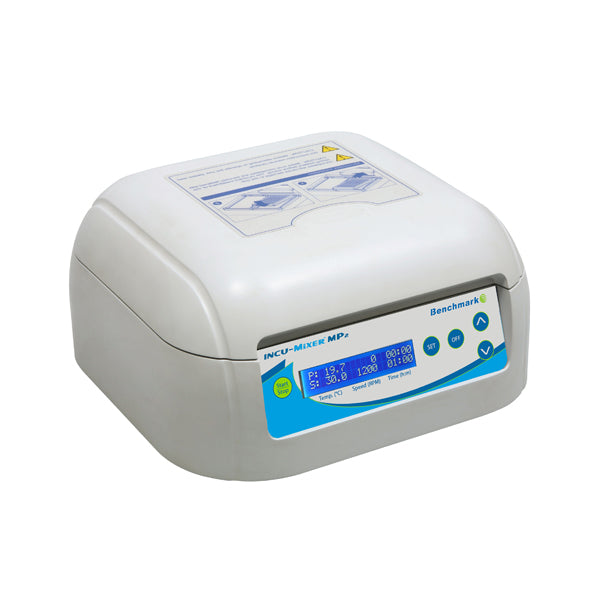

Incu-mixer™ MP Heated Microplate Vortexer Series

The new Incu-Mixer MP series by Benchmark Scientific is designed to provide an optimal method for vortexing and incubating microplates. Simultaneous heating from both the bottom surface and the lid provide temperature uniformity throughout the sample. Additionally, the heated lid minimizes evaporation and prevents condensation. A compact, 2mm orbit ensures thorough mixing in microplates without splashing. Speed, time and temperature are all displayed in real time on the large LCD screen while an internal validation system constantly monitors all parameters for accuracy. Designed for application flexibility, the Incu-Mixer series is available in two, and four-plate capacities, both capable of accepting standard plates. Independent time, temperature and speed controls allow the mixer to function as 3 machines in one; a multi-plate incubator, vortexer, or a combination of the two. The Incu-Mixer MP series is ideal for a wide variety of molecular biology applications including immunochemical reactions, enzyme and protein analysis, and microarray analysis.

• Optimized for incubated mixing in microplates
• Heated lid prevents condensation

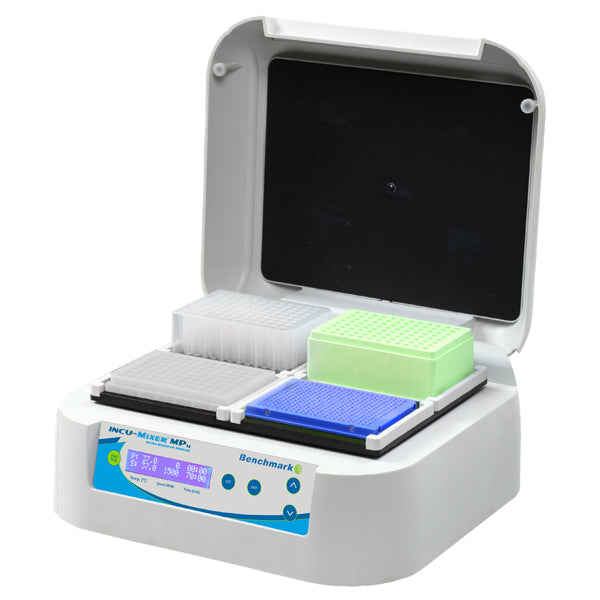

• Accepts plates up to 46mm high (4 plate model only)
• Independently control time, temp. and speed
• Available in two-plate and four-plate format

Specifications

Temperature Range	Ambient +5° to 70°C
Orbit	2mm
Mixing Speed (4-Plate)	100 to 1500rpm
Mixing Speed (2-Plate)	100 to 1200rpm
Temperature Increment	0.1°C
Temperature Accuracy	±0.2°C
Temperature Uniformity	±0.5°C
Speed Increment	10 rpm
Max. Plate Height (4-Plate)	46 mm
Max. Plate Height (2-Plate)	20 mm
Dimensions (4-Plate)	12.6 x 13.8 x 7.3 in. / 32 x 35 x 18.5 cm
Dimensions (2-Plate)	11 x 10.6 x 5.5 in. / 28 x 27 x 14 cm
Weight	18 lbs (8kg)
Timer	1 min. to 99 hours 99min. / continuous
Electrical (4-Plate)	115 or 230V 50-60Hz; 600W
Electrical (2-Plate)	100 to 240V 50-60Hz; 500W
Warranty	2 years

Documents

• Brochure (PDF)
