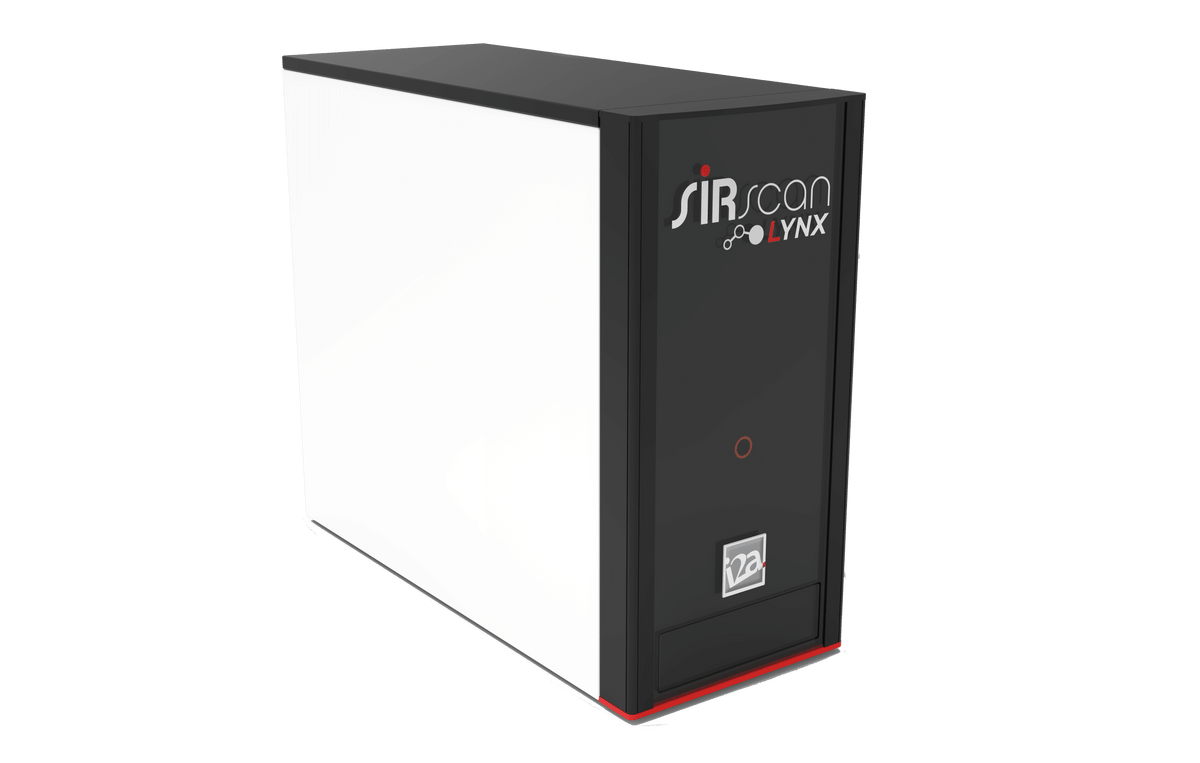

SIRscan Lynx Semi-Automatic Antibiogram Reader for Agar Disc Diffusion (Kirby-Bauer)
Vendor: i2a
SKU: P40D-S-LYNX
Regular price
0.00 NIS
Sale price
Regular price
Unit price
/per
Quote Required
Low stock
SIRscan Lynx - Semi-automatic reader of antibiograms in agar media (Kirby Bauer Method)
Reading Parameters
- Reading of all germs on all types of media*
- High-definition colour camera
- Detection of double zones and fine growth
- Displayed image not modified
- Automatic backup of all images
- Performs 100% of the laboratory's antibiograms*
- Continuous reading
Expertise and Validation
- Automatic reading and possible deferred expertise
- Automatic sending of results validated by the expert
- Validation possible on a remote workstation: visual control
Equipment and Technology
- HD colour camera
- NUC Micro-PC
- 24" HD screen
Safe
- Controlled access
- User action traceability
- Archives with remote access
- Universal expert system for ID/AST result validation
- Detection of symbols and automatic management of i2a disk batch numbers
- Archived images
* Refer to the current recommendations.
Software
SIRxpert - microbiology middleware: universal open system for the interpretative reading of antibiograms.
- A comprehensive and user-friendly interface
- Management of raw AST results
- Automated expertise and interpretation of AST
- Validation control (results consistency)
- Automatic export and import to LIS or other devices (SIRxpert interface option)
- Fully configurable and customizable
- Optional epidemiology module
- Monitoring of international standards (CLSI, EUCAST, CASFM)
Specifications
| Plates read | Plate 55 mm, Round 90 mm, Round 140 mm, Square 120 mm |
| System components | SIRscan Lynx reader with a drawer; 24" screen; PC; SIRxpert Antibiogram module; SIRxpert Bidirectional |
| Accessories | Barcode printer; Barcode scanner |
| Options | SIRxpert Abbreviations (when using i2a discs); SIRxpert batch traceability (when using i2a discs) |
| Reader | Drawer-loaded semi-automatic reader with HD colour camera and LED lighting |
| Operating temperature | 19 to 26 °C, indoor use |
| Dimensions (W x H x D) | 210 W x 420 H x 540 D mm |
| Net weight | 8 kg |
| Mains voltage | 100-240 VAC, 50-60 Hz |
| Power consumption | 30 W max |
| Heat dissipation | 341 Btu/hr |
| Installation category / pollution degree | II / 2 |
| Manufacturer | i2a (Montpellier, France) |
| Regulatory status | CE-marked in vitro diagnostic medical device (IVDR) |
Ordering
| Code | Price-list description | Package |
|---|---|---|
| P40D-S-LYNX | SIRscan LYNX - AST Reader | Standard package |
| P40D-N-LYNX | SIRscan LYNX Nude Package including: | Nude package |
Documents
Specifications
- Applications Reading and expert interpretation of antibiotic susceptibility tests
- Capacity One plate per reading (55 mm, 90 mm, 140 mm round; 120 mm square)
- Compatible with SIRscan Discs, i2a disc dispensers
- Country of origin France
- Dimensions 210 x 420 x 540 mm (W x H x D)
- Electrical 100-240 VAC, 50-60 Hz, 30 W max
- Method Agar disc diffusion AST (Kirby-Bauer)
- Model SIRscan Lynx
- Regulations CE IVD (IVDR)
- Software SIRxpert Antibiogram module, Bidirectional
- Sub category Antibiogram Readers
- Technology HD colour-camera reading of disc-diffusion antibiograms
- Weight 8 kg
links and documants
- Manual url Click here
- Source url Click here
