The Tribioscience Fast Human PD-1 ELISA is designed to quantitatively detect Human PD-1 levels in different tissues including skin, muscle, neural, serum, and other biological samples. The main feature is that the kit uses our novel proprietary approaches to combine samples and detections into a one-step instead of the complicated traditional methods. It makes the assay simple, easy, accurate and fast. The measurement can be finished in 3 hours, not needing 4-5 hours (Fig. 1). The detection range is from 15 to 1000 pg/mL. The levels of human PD-1 samples are parallel to the standard curves obtained using the kit standards linearly. These results indicate that this kit can be used to determine relative mass values for natural human PD-1 protein.
Typical Data
This standard curve(R2=0.9995) is provided for demonstration only. A standard curve should be generated for each set of samples assayed. Fig. 3 is an example of typical Data.
Sensitivity
The minimum detectable dose (MDD) of human PD-1 is typically 10 ng/mL.
The Intra-assay CV is 3.79% the Inter-assay CV is ˂10%.
Specificity
This assay recognizes natural and recombinant human PD-1.
Simple Procedures (Fig. 1)
Simple Standard Preparation
Accurate Standard Curve

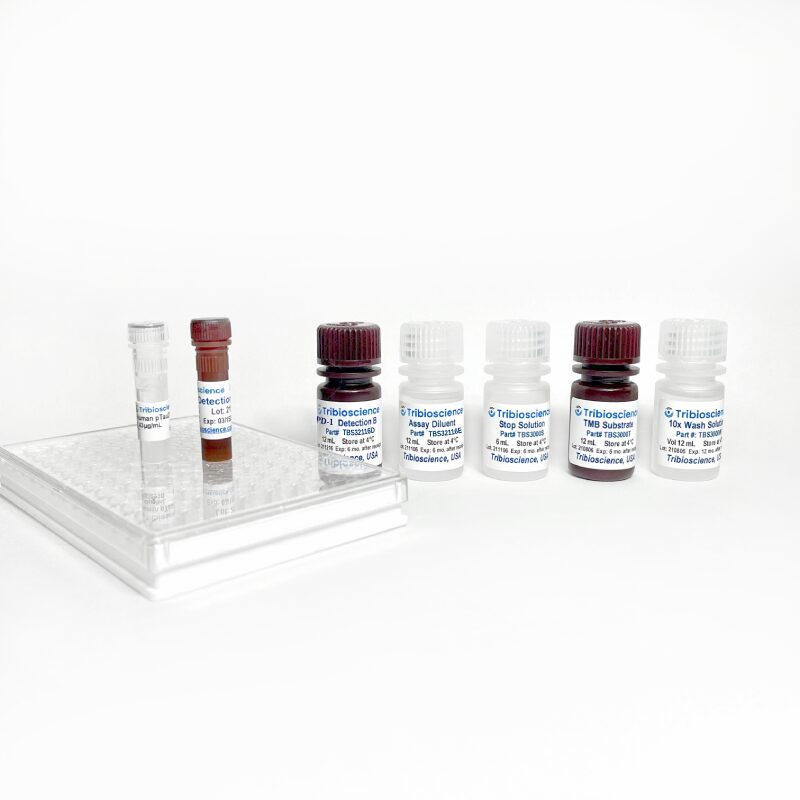

Kit Content and Storage Conditions
PART
PART#
DESCRIPTION
STORAGE OF OPENED/ RECONSTITUTED
Human PD-1 Microplate
TBS32116A
96 well polystyrene microplate (12 strips of 8 wells) coated with a polyclonal antibody specific for human PD-1.
Return unused wells to the foil pouch. Reseal along the entire edge of the zip-seal. May be stored for up to 1 month at 2-8 °C.
Human PD-1 Standard
TBS32116B
30 µL of Recombinant human PD-1 protein (50 ng/mL).
Aliquot and store at -20 ℃ for up to 1 month in a manual defrost the freezer. Avoid repeated freeze-thaw cycles.
Detection A
TBS32116C
220 µL of Biotin-Human PD-1 antibody (10x).
May be stored for up to
3 months at 2-8 °C.*
Detection B
TBS32116D
300 µL of Streptavidin-HRP (50x).
Assay Diluent
TBS32116E
15 mL of a buffered protein base with preservatives.
Wash Buffer
TBS3000W
15 mL of concentrated solution (10x).
TMB Substrate
TBS3000T
12 mL of ultra-sensitive TMB substrate.
Stop Solution
TBS3000S
6 mL of 2 N sulfuric acid.
Store the unopened kit at 2-8 ℃. Do not use past kit expiration dates.
The kit contains sufficient materials to run an ELISA on one 96-well plate.
Alternative Names: CD279 antigen; CD279; hPD-1; PD1; PD-1; PDCD1; programmed cell death 1 protein; programmed cell death 1; programmed cell death protein 1; Protein PD-1; SLEB2; systemic lupus erythematosus susceptibility 2; hSLE1.
