Homogeniser Bead Mill MAX for High-Impact Grinding, Lysis and Homogenisation

VWR® Homogeniser Bead Mill MAX creates the highest bead impact force of any bead mill on the market, designed to grind, lyse or homogenise the most difficult samples with repeatable results.

• Unique tube carriage motion reduces swirling and maximises bead impact force

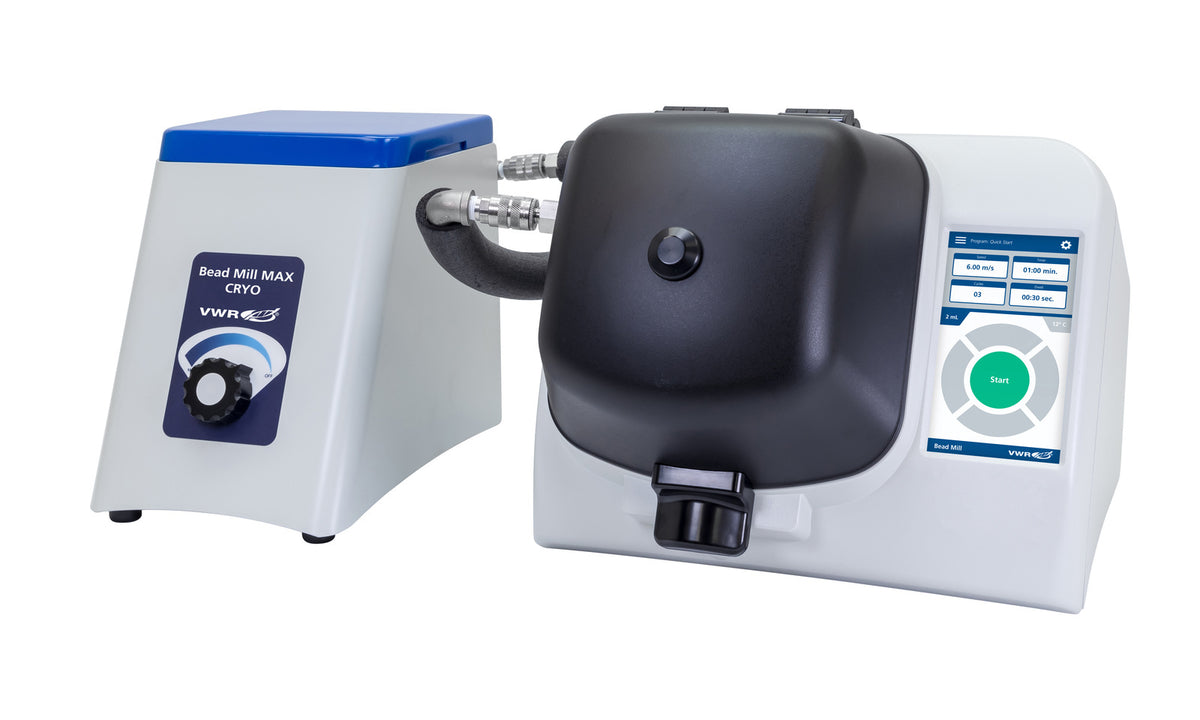

• Optional cryo cooling helps manage heat during demanding homogenisation workflows
• No cool-down period required between runs supports high-throughput sample processing
• Front-loading design supports straightforward setup and efficient daily operation

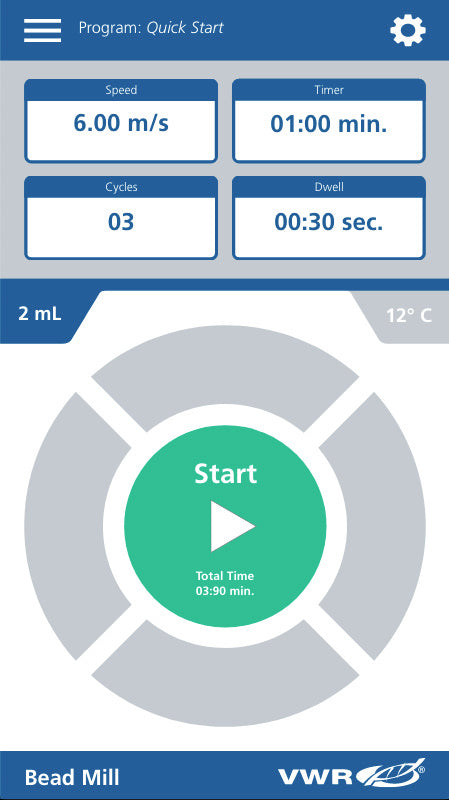

• Multilingual touchscreen simplifies method selection in shared laboratory environments
• Unlimited programmable method storage supports protocol standardisation across users

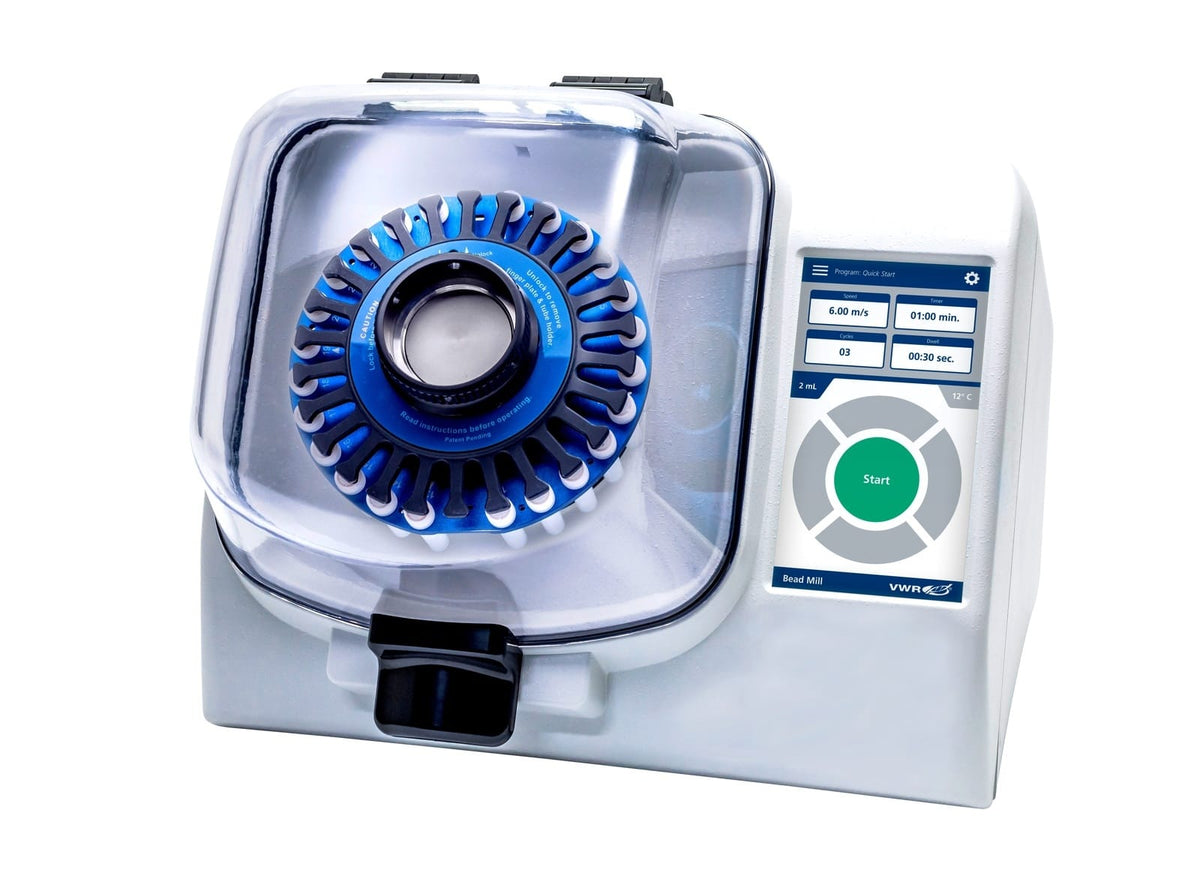

The VWR® Bead Mill MAX is the flagship model in the VWR bead mill homogeniser range, engineered for rapid disruption of difficult biological and environmental samples. Using sample tubes pre-filled with a variety of bead media, the mill vigorously and uniformly shakes the tubes to maximise impact and reduce swirling for efficient and consistent high yield and quality homogenisation.

The system fits both routine and multi-user environments by combining simple method control with fast processing, often complete in less than 30 seconds. A touchscreen interface, stored protocols and front access help reduce setup time and make it easier to maintain repeatable workflows across different operators and sample types.

The Bead Mill MAX platform includes a standard homogeniser configuration as well as packages that add bead-filled tubes for faster startup, while optional cryo cooling is available for temperature-sensitive work. Designed to grind, lyse and homogenise tissues and other challenging materials, it delivers highly reproducible results for downstream DNA, RNA, protein and metabolite workflows.

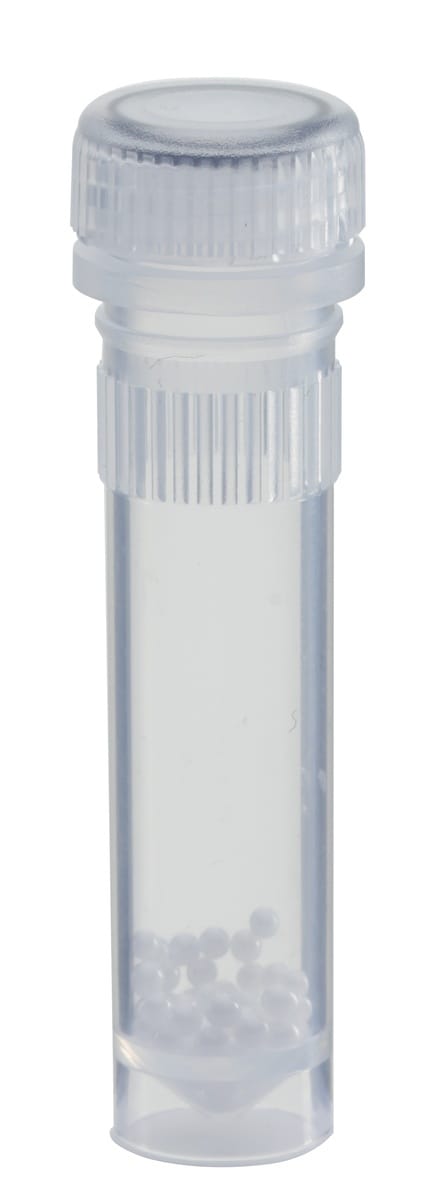

Delivery: Drive unit is supplied with 2 ml tube carriage, user manual and 2 year warranty. VWR® disposable bead tubes must be ordered separately.

Specifications

• Model: Bead Mill MAX
• Speed range: 0,8 - 6,5 m/s
• W×D×H: 305×432×368 mm
• Weight: 29,5 kg
• Sample volume: 0,5 - 50 ml
• No. of cycles: 1 - 10
• Application areas: Sample preparation, DNA, RNA, Protein extraction
• Capacity: Max. 24 tubes: (24×0,5 ml / 24×1,5 ml / 24×2 ml / 12×7 ml / 6×30 ml / 3×15 ml / 3×50 ml)

Documents

• Manual Bead Mill Max Homogenizer – VWR (Manual)
• Manual VWR Cryo Unit (Bead Mill Cryo) (Manual)
• Quick Start Guide Bead Mill Max Homogenizer – VWR (Manual)
• Avantor Cell Culture Solutions (Brochure)
• VWR Products for Nucleic Acid Preparation (Brochure)
• Bead Mill Max and E.Z.N.A. Soil DNA Mini Kit for Extracting DNA from Red Clay Soil (Application note)
• Bead Mill Max and peqGOLD DNA Mini Kit for extracting DNA from rat brain (Application note)
• Bead Mill Max and peqGOLD Kits for DNA/RNA Preparation from Large Rat Liver Samples (Application note)
• Bead Mill Max and peqGOLD Plant DNA Kit for extracting Hemp flower DNA (Application note)
• Bead Mill Max and peqGOLD Total RNA Kit for Extracting RNA from Murine Tissues (Application note)
• Bead Mill Max for Extracting Proteins from Hard Rat Tissues (Application note)
• Bead Mill Max for Extracting Proteins from Soft Rat Tissues (Application note)
• Using Bead Mill Max and peqGOLD kits for extracting DNA and RNA from leaves of Ocimum basilicum (Application note)
• Using Bead Mill Max for direct PCR on viral RNA from swabs (Application note)
• Recommendations for sample preparation via bead beating (Application note)
