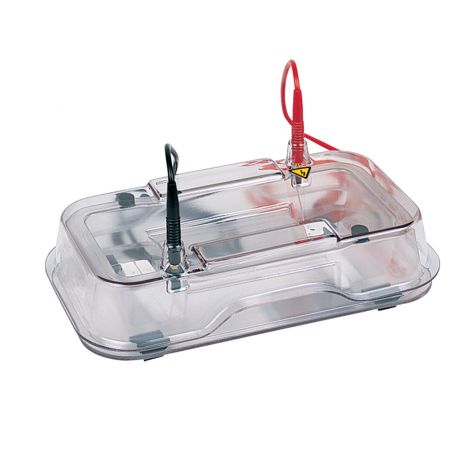

The HE33 Mini Horizontal Agarose Electrophoresis Unit is designed for very fast separations of DNA restriction fragments in agarose gels. To achieve passive cooling, you simply fill the clear molded base with 50% ethylene glycol coolant solution, seal it, and place it in a freezer or ice bath until ready to use.
Features and Benefits
Fast separations—run a 7 x 10 cm gel in as little as 5 minutes
UV transparent running tray—allows the user to image the gel without risk of damage due to handling
Variety of comb sizes—enables customization of sample throughput to fit your laboratory's requirements
Adjustable comb height—complete control over well depth
Complete Unit (HE33-8-1.5) Includes:
Buffer Chamber Assembly
Safety Lid with High Voltage Leads
Running Tray
Casting Tray
Foam Gaskets, 4 pcs
Bubble Level
1.5 mm thick, 8-well comb
Comb Back
Basic Unit (HE33B) Includes: The same as above without the comb and comb back. Order separately.
Ordering Information:
Cat #
Description
HE33-8-1.5
HE33 Complete Unit
HE33B
HE33 Basic Unit
Specifications:
Gel Dimensions (W x L)
7 x 10 cm
Maximum Buffer Volume
250 ml
Maximum Power Settings
500 V for (5 min or less), 500 mA, 15 W
Maximum Sample Capacity
32
Maximum Temperature
50°C
Indoor Use
4 to 40°C
Humidity
Up to 80%
Unit Dimensions (L x H x W)
24 x 7 x 13 cm
Basic Unit Weight
0.80 kg
Operation Guide
Specifications
Gel dimensions
7 x 10 cm
Humidity
Up to 80%
Max buffer volume
250 ml
Max power settings
500 V for (5 min or less), 500 mA, 15 W
