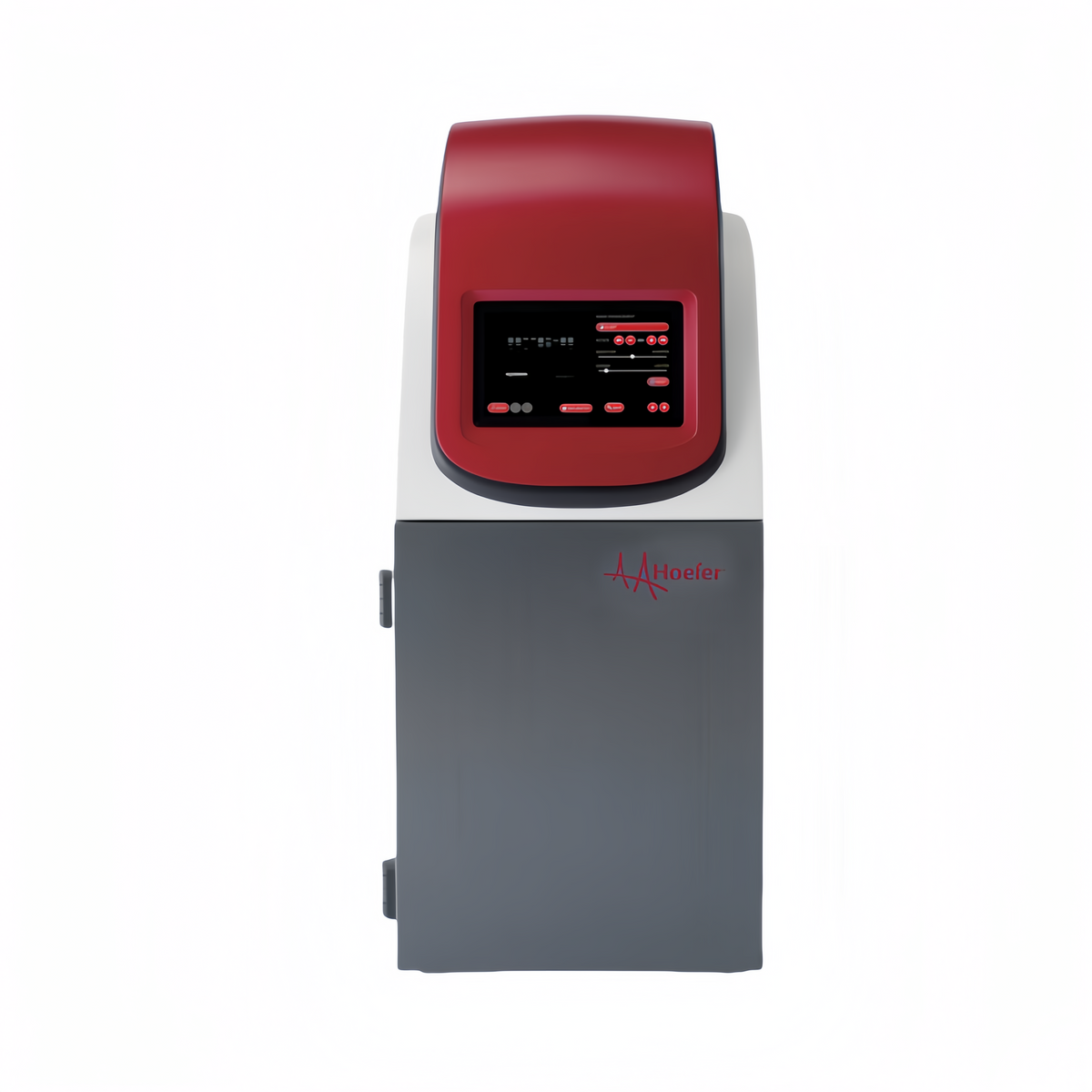

FPGD2 FlexPro Gel Doc imaging System

Powerful

A groundbreaking 5m pixel camera gives exquisite pixel resolution and unrivalled sensitivity in its class. FPGD2 uses an f/1.2 motor-driven zoom lens to enable perfect gel or blot-size imaging. The maximum viewing area is 20 x 24cm, which is very large for such a small, compact unit.

Flexible

Internal lighting includes a UV transilluminator option for working with DNA gels, stain free and autorads analysis. The overhead LED white lighting is included as standard for easy sample positioning and focusing.

Versatile

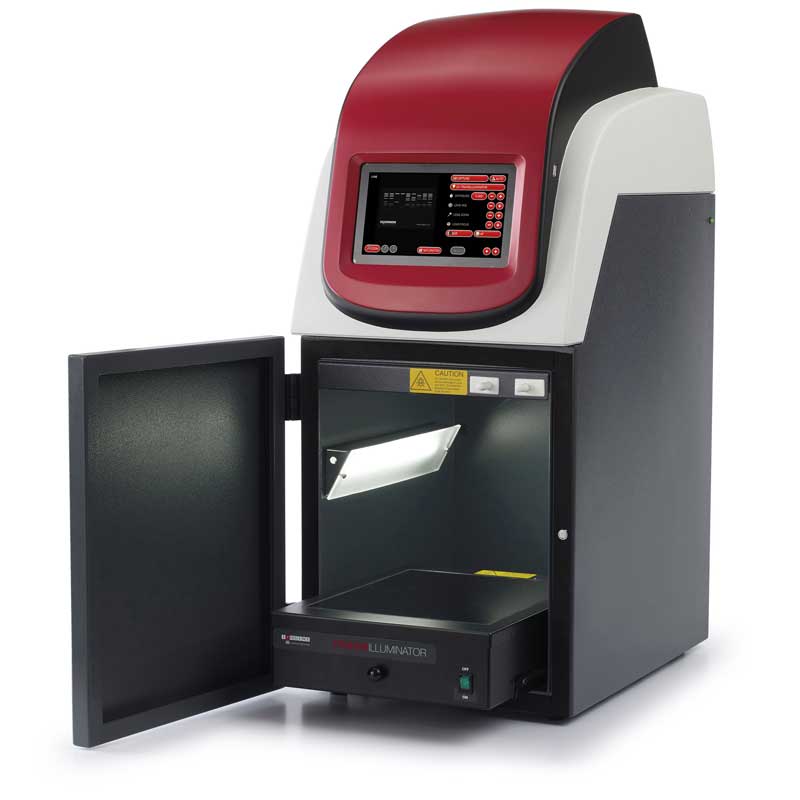

The FPGD2 has been designed for stain free applications. Its camera enables the sample to be exposed for extended periods. Safely excise your DNA bands from an agarose gel with the darkroom door open using the optional safety shield protecting the user when working with UV.

Intuitive

Images are saved directly to USB or network for easy transfer. Quickly generate quantitative data with GelTools analysis software. FPGD2 comes with unlimited copies of GelTools.

The FPGD2 imaging system includes:

• The mainframe equipment
• UV Transilluminator (20 x 20cm; 302nm)
• Visible light converter (Silver Stain, Coomassie Blue)
• UV to Blue Light converter, suitable for 'safe' dyes (GFP, SYBRGreen, SYPRGold, SYBRSafe, SYPRORuby)

The FPGD2  imaging unit includes:

The mainframe equipment, order the Transilluminator, Visible light converter, and Blue Light converter separately.

Specifications
