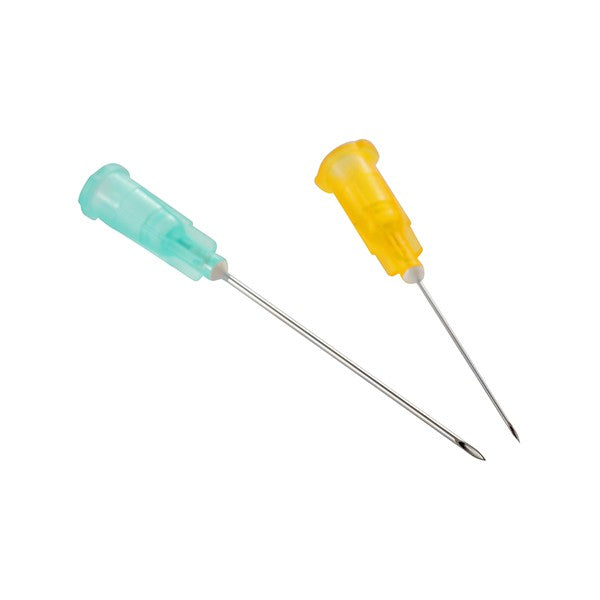

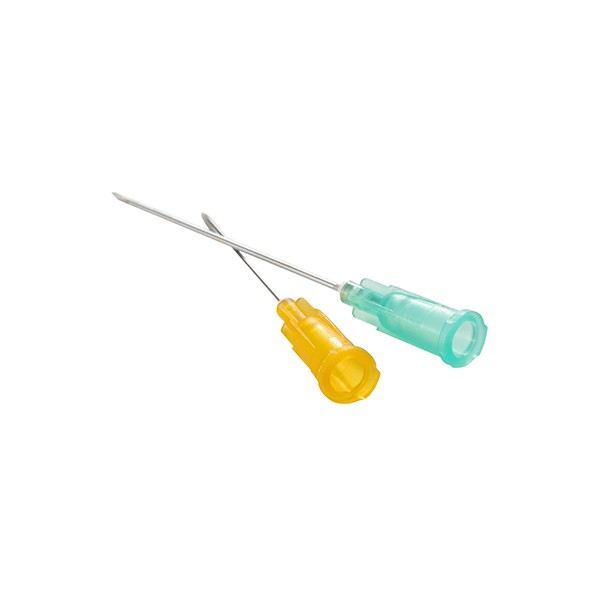

Sterile single-use hypodermic needle with a thin-wall stainless-steel cannula and a tri-bevel tip for fast, low-pain penetration, a translucent colour-coded polypropylene hub (ISO colour code by gauge) and a protective cap. The 6% luer conical hub fits standard luer slip and luer lock syringes.
Manufactured by Jiangsu Eyoung Medical Devices Co., Ltd. (Changzhou, China).
Key Features
The needle is composed of needle hub, needle cannula and protective cap. All materials are medical grade.
Needle hub and protective cap (sheath) are made of medical-grade polypropylene.
Cannula is made of medical-grade SUS304 stainless steel.
Suitable for intradermal, subcutaneous, intramuscular and intravenous injection.
Thin-wall cannula design, with large inner diameter and high flow rate.
Sharp tri-bevel needle tip for fast puncture with less pain and less tissue damage.
6% (6:100) luer conical fitting made to international standards, compatible with standard medical devices.
Gauge identified by the hub colour; translucent hub for easy flashback observation.
Pyrogen-free, toxic-free, BPA-free, DEHP-free. Sterilized by EO gas.
Ordering Information
REF
Size
Outer diameter
Hub colour
Pcs / box
Pcs / carton
EHN30/12
30G x 1/2" (13 mm)
0.3 mm
Light yellow
100
10000
EHN25/58
25G x 5/8" (16 mm)
0.5 mm
Orange
100
10000
EHN23/1
23G x 1" (25 mm)
0.6 mm
Dark blue
100
10000
EHN19/112
19G x 1 1/2" (38 mm)
1.1 mm
Cream
100
10000
Specifications
Applications
Subcutaneous, intramuscular and intravenous injection
Material
SUS304 stainless-steel cannula; medical-grade polypropylene hub and protective cap
Sterility
Sterile (EO gas), single use; pyrogen-free, non-toxic, BPA- and DEHP-free
