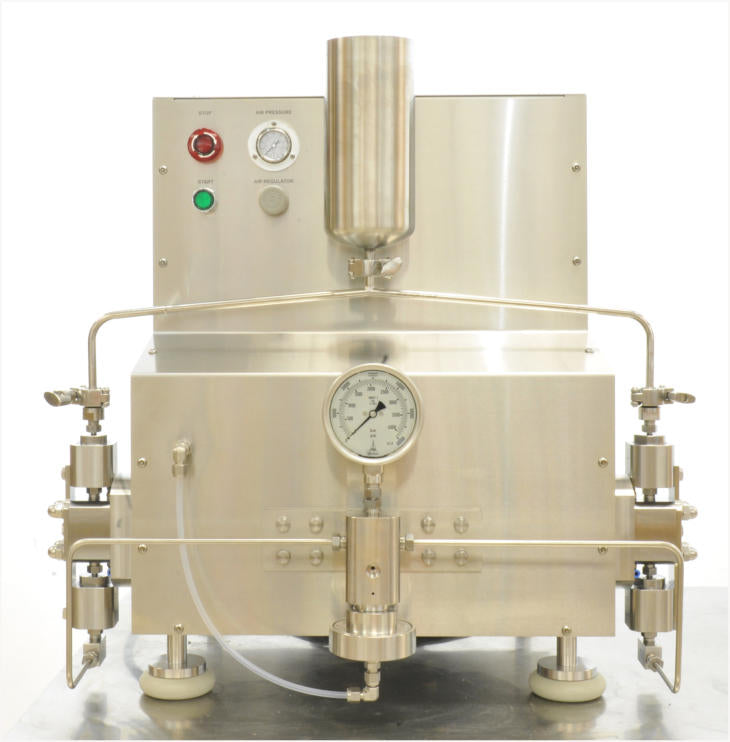

EmulsiFlex-D20 homogenizer. Electrically driven double-acting pump. Dynamic homogenizing valve with ceramic seat and stem. Pressure adjustable by pneumatic control 500 to 20000psi/35 to 1380bar. Includes sample cylinder, necessary tools, operating manual.
Specifications
Capacity: 20 L/h, independent of pressure
Pressure: EF-D20A: up to 20,000 psi (1,380 bar), EF-D20B : up to 30,000 psi (2,000 bar)
Minimum Sample Volume: 50 mL
Power: 380 to 500 VAC 50/60 Hz
Air: 120 psi (8 bar) max., virtually no air consumption
Dimensions [W x D x H]: 28 in x 24 in x 25 in (715 mm x 610 mm x 635 mm)
Weight: 240 lbs (110 kg)
Ordering Information
Catalogue No.
Description
EF-D20A
EmulsiFlex-D20 homogenizer. Electrically driven double-acting pump. Dynamic homogenizing valve with ceramic seat and stem. Pressure adjustable by pneumatic control 500 to 20000psi/35 to 1380bar. Includes sample cylinder, necessary tools, operating manual.
EF-D20B
EmulsiFlex-D20 homogenizer. Electrically driven double-acting pump. Dynamic homogenizing valve with ceramic seat and stem. Pressure adjustable by pneumatic control 500 to 30000psi/35 to 2000bar. Includes sample cylinder, necessary tools, operating manual.
Specifications
Air requirements
120 psi (8 bar) max., virtually no air consumption
Capacity
20 L/h, independent of pressure
Dimensions
28 in x 24 in x 25 in (715 mm x 610 mm x 635 mm)
Minimum sample volume
50 mL
Power requirements
380 to 500 VAC 50/60 Hz
Pressure
EF-D20A: up to 20,000 psi (1,380 bar), EF-D20B : up to 30,000 psi (2,000 bar)
