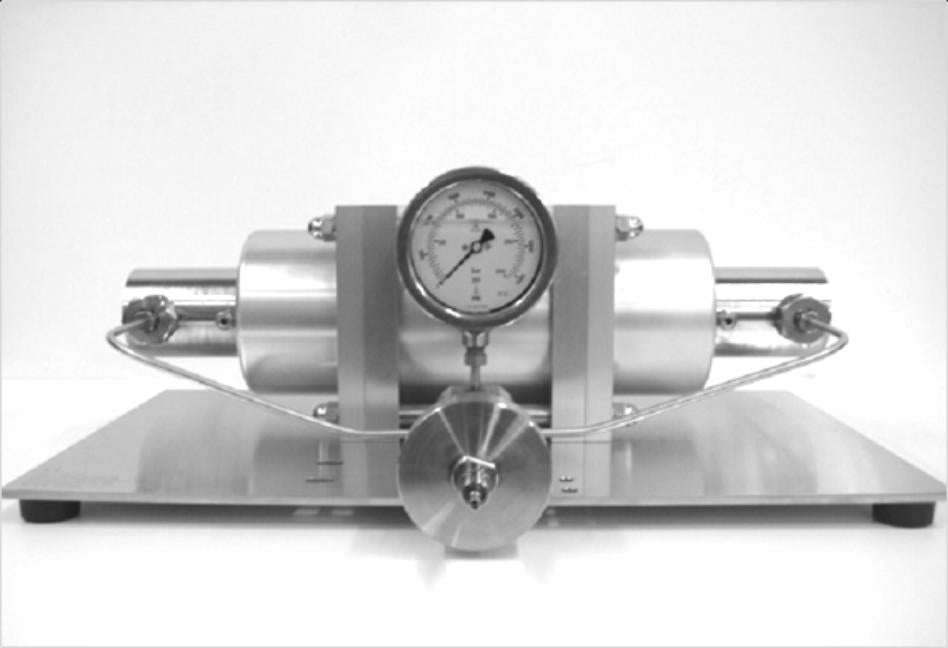

EmulsiFlex-C50 homogenizer. Pressure adjustable by pneumatic control 500 to 30000psi/35 to 2000bar. Includes dynamic homogenizing valve, necessary tools, spare plug, operating manual. Does not include sample container.
Specifications
Capacity: 15 to 50 L/h, depending on pressure and air supply
Pressure: up to 30,000 psi (2,000 bar)
Minimum Sample Volume: 25 mL
Power: 100 to 240 VAC 50/60 Hz (for control panel)
Air: 45 cfm (1,275L/min) @ 90-120 psi (6-8 bar)
Dimensions [W x D x H]: 24 in x 21 in x 10.2 in (610 mm x 530 mm x 260 mm)
Weight: 176 lbs (80 kg)
Ordering Information
Catalogue No.
Description
EF-C50
EmulsiFlex-C50 homogenizer. Pressure adjustable by pneumatic control 500 to 30000psi/35 to 2000bar. Includes dynamic homogenizing valve, necessary tools, spare plug, operating manual. Does not include sample container.
EF-C50P
EmulsiFlex-C50 high pressure pump. Pressure from 500 to 30000psi/35 to 2000bar. Includes high pressure adaptor C50FXAPR2, necessary tools, spare plug, operating manual. Does not include sample container.
Specifications
Air requirements
45 cfm (1,275L/min) @ 90-120 psi (6-8 bar)
Capacity
15 to 50 L/h, depending on pressure and air supply
Dimensions
24 in x 21 in x 10.2 in (610 mm x 530 mm x 260 mm)
Minimum sample volume
25 mL
Power requirements
100 to 240 VAC 50/60 Hz (for control panel)
