The STELLA® 100/285 is the 2.23 l open working dewar of the series (inside Ø 100 mm × 285 mm).

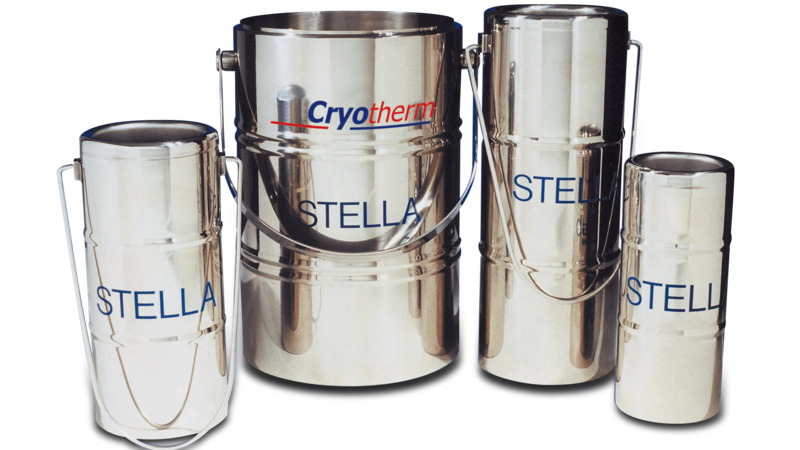

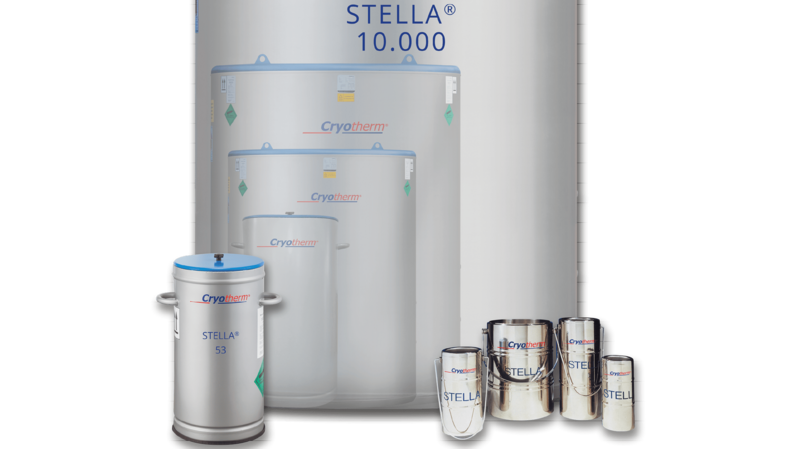

The STELLA® series is a series of robust, vacuum super insulated Dewars for working with liquid nitrogen in laboratories, industry and research.
The STELLA® series includes working vessels for liquid nitrogen, with and without lid, for cooling components and biological materials.
Special designs are also available.
Standard Equipment
- With flat bottom
- Stable and protected from edges
- Also available with flange (version STELLA® F)
- STELLA® - for open work in the laboratory
- STELLA® D - with lid mainly for research and industry
- Special versions, e.g. with gas-tight welded stainless steel flange for connection to cold holding systems like detectors
Benefits
- Integrated vacuum sealing and safety device
- Long-term vacuum protection through higher quality adsorption and getter materials
- Optimized super insulation, through multi-layer vacuum insulation and computer-optimized thermodynamic design
- Rugged stainless steel construction
- Low maintenance requirements
- Comprehensive range of accessories
Technical Data
| Volume (l) |
2.23 |
| Height outside (mm) |
312 |
| Height inside (mm) |
285 |
| Diameter outside (mm) |
122 |
| Diameter inside (mm) |
100 |
| Weight, empty (kg) |
1.23 |
| Weight, full (kg) |
2.83 |
| Operating overpressure, max. (bar) |
0 |
| Cover |
optional |
Available Options
- Roller base
- Outlet bottom
- Level control
Documents
Ordering Information
| Item No. |
Description |
| 79408223 |
STELLA 100/285 2.23 l |
