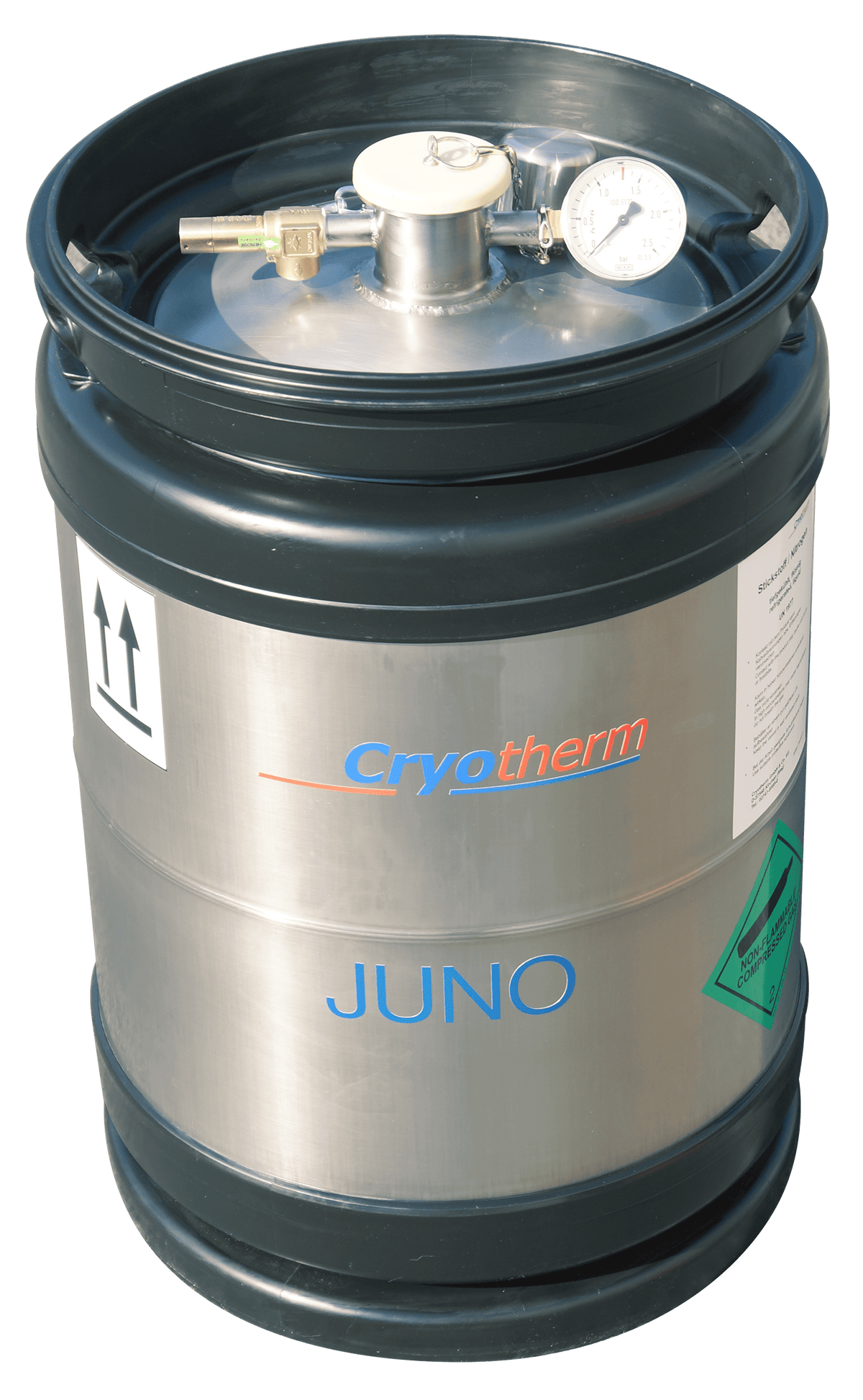

The JUNO® 30 holds 30 l of liquid nitrogen at up to 1.3 bar.
Supply tank for cryogenic liquefied nitrogen with Vacuum super insulation and long-term vacuum protection.
Nitrogen liquid storage and transport container with integrated safety device on the container neck.
JUNO® has a built-in pressure indicator.
Standard Equipment
- Integrated safety device on the container neck
- Vacuum sealing and safety device
- Separate transport plug with safety device to prevent falling out
- Pressure display
- Cold protection gloves and safety goggles with side protection
- Rubber ring and fitting protection
Benefits
- Efficient exhaust gas cooling
- Compact dimensions
- Integrated vacuum sealing and safety device
- Robust construction made of highly corrosion resistant cold tough stainless steel
- Long-term vacuum protection through high-quality adsorption and getter materials
- Optimized super insulation, through multi-layer vacuum insulation and computer-optimized thermodynamic design
- Inner and outer container each separately helium leak tested
- Wide range of accessories
Technical Data
| Content, geometric (l) |
30 |
| Operating overpressure (bar) |
1.3 |
| Weight, empty (kg) |
18 |
| Weight full (kg) |
41 |
| Neck connection |
KF 50 |
| Total height A (mm) |
660 |
| Immersion depth B (mm) |
533 |
| Outer diameter C (mm) |
396 |
| Total width D (mm) |
407 |
| Evaporation rate, statistical (l/day) |
0.75 |
| Evaporation rate, statistical (%/day) |
2.5 |
Available Options
- Roller base
- EK-Siphon with exhaust and overflow valve
- Filling hose (1,5m)
- Phase Separator
Documents
Ordering Information
| Item No. |
Description |
| 78220205 |
JUNO 30 1.3 bar |
