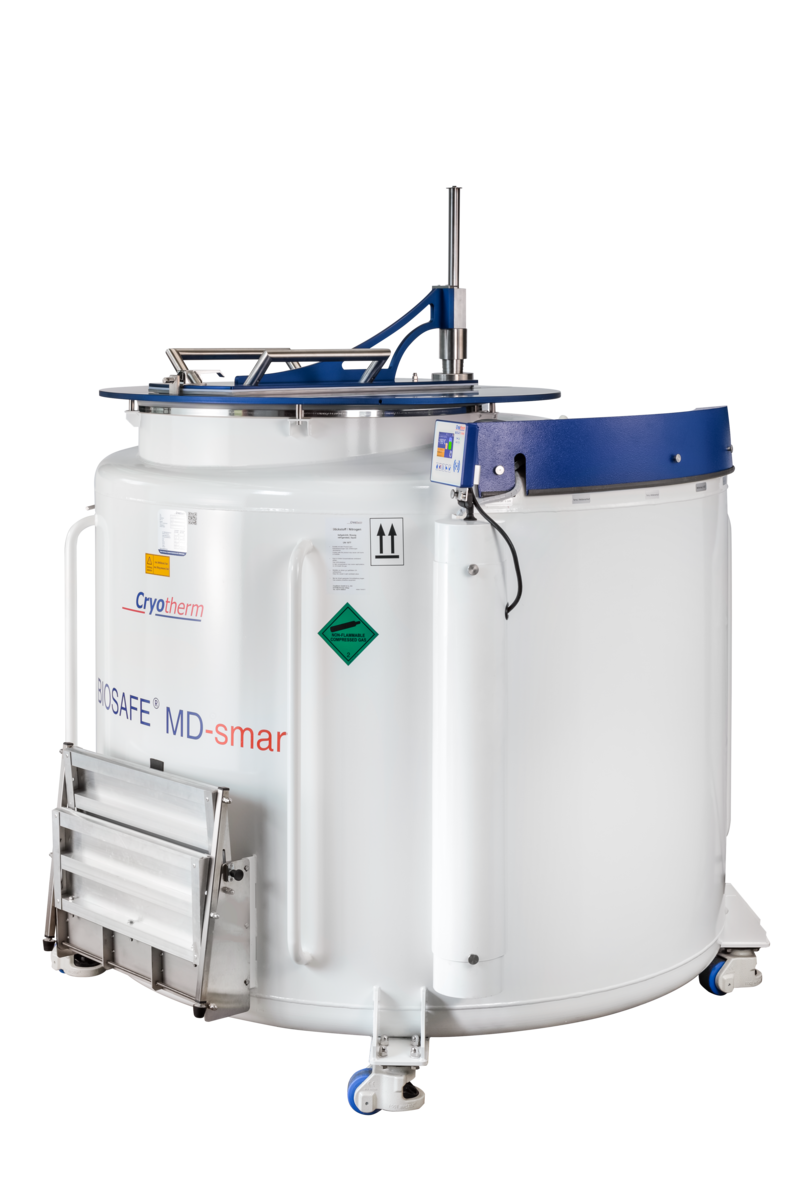

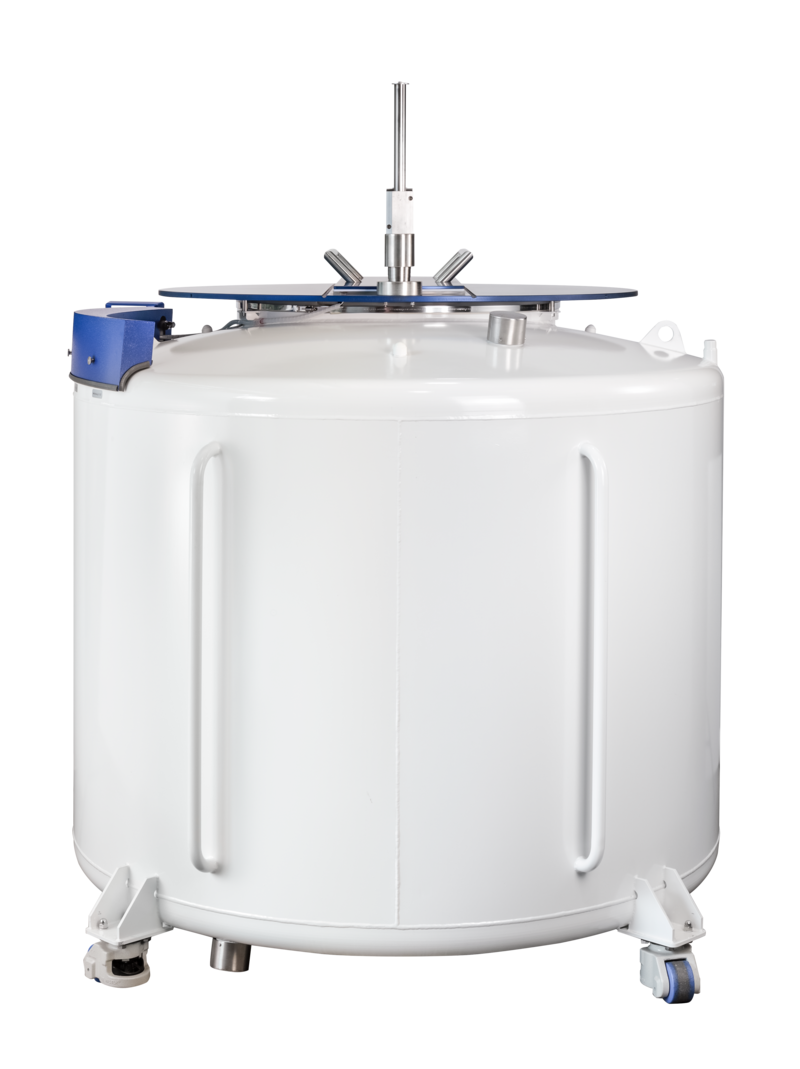

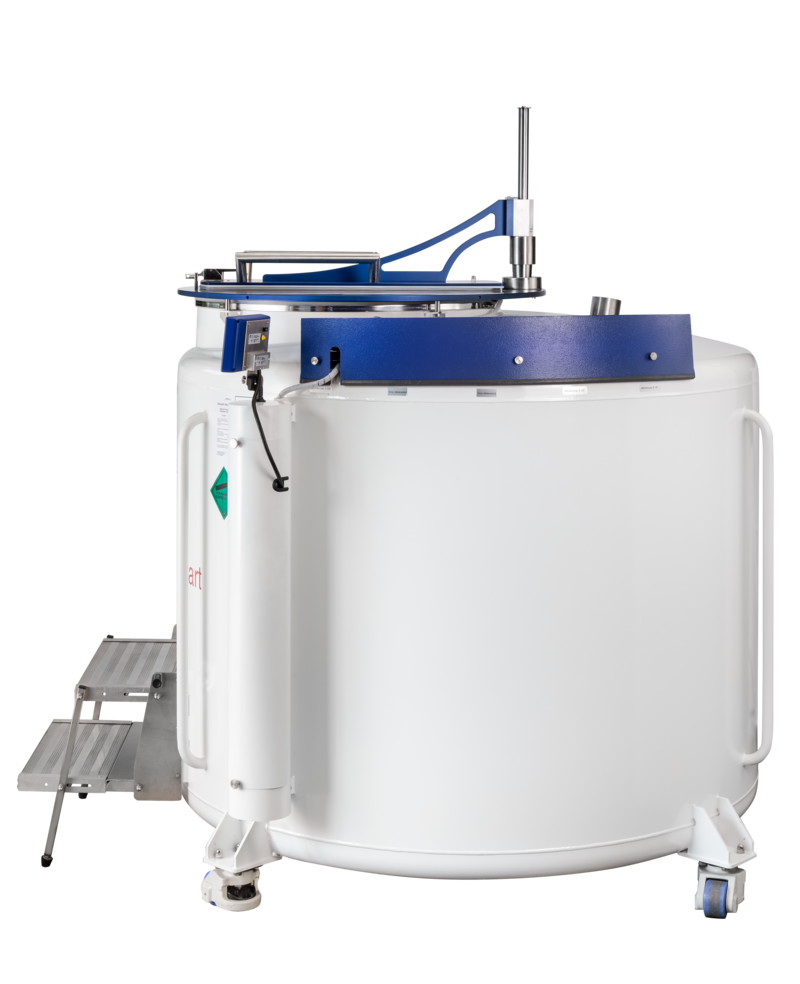

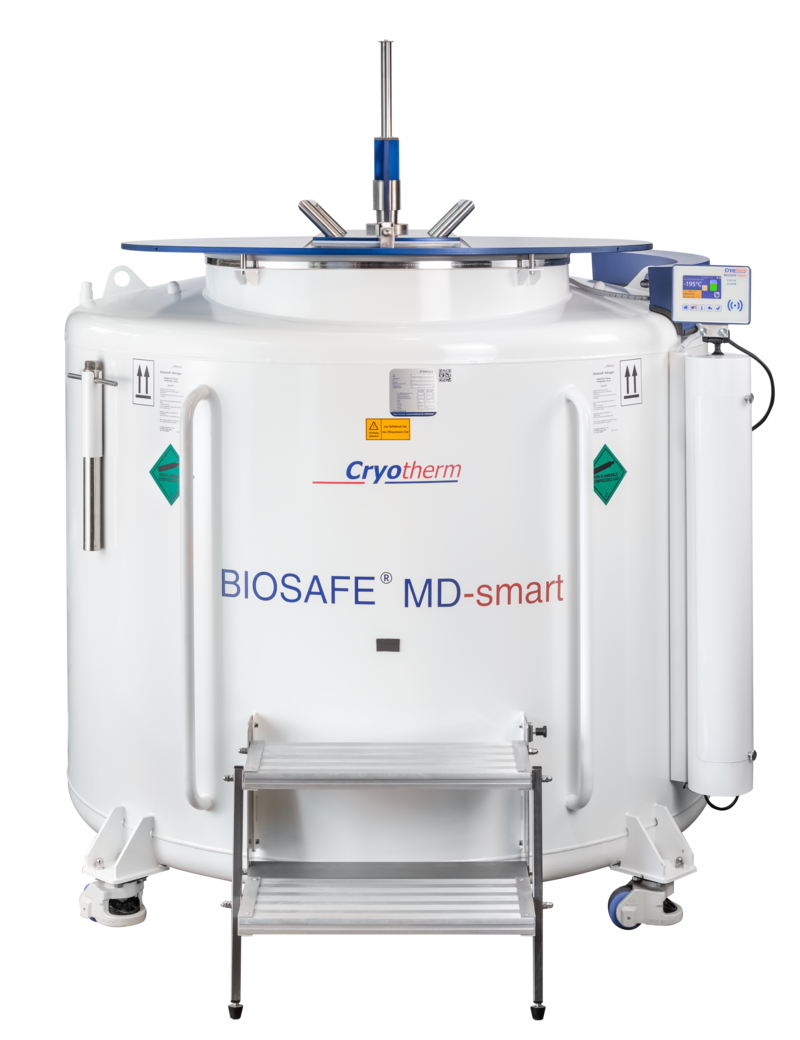

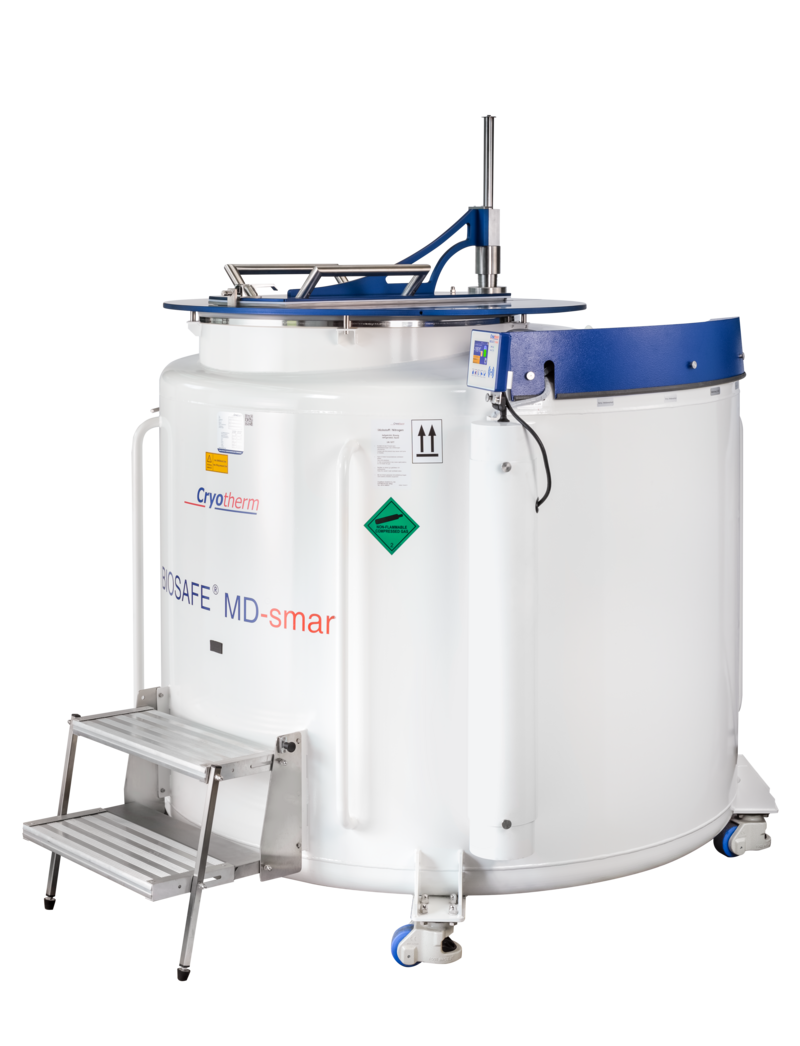

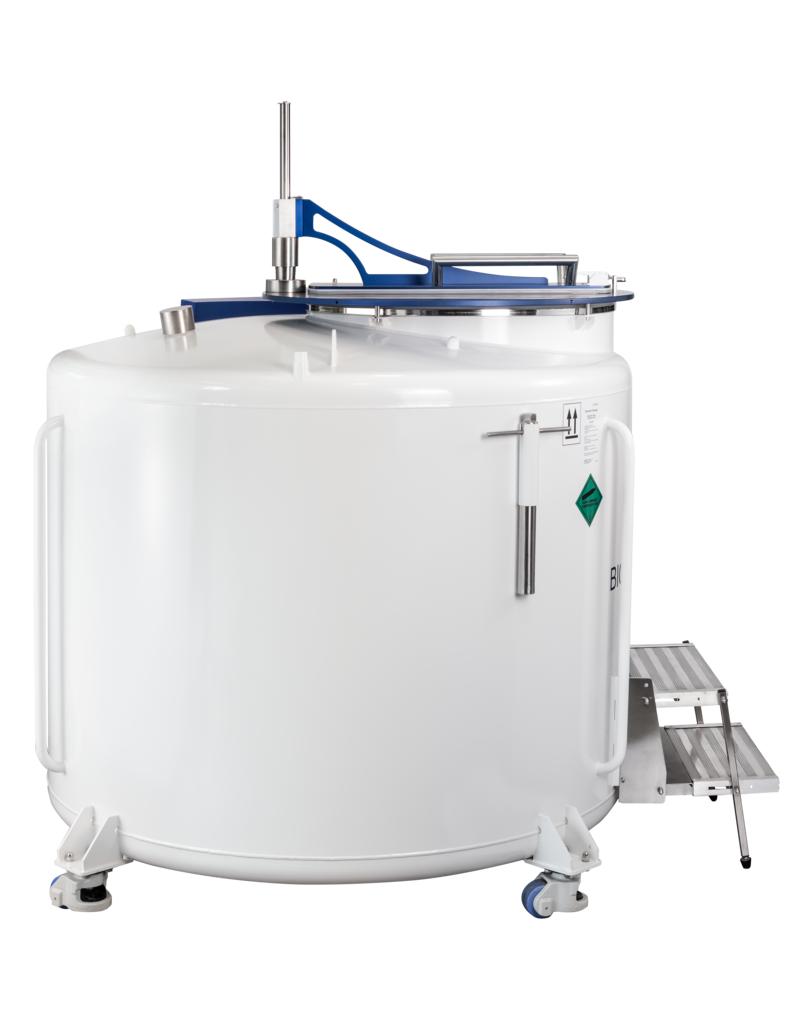

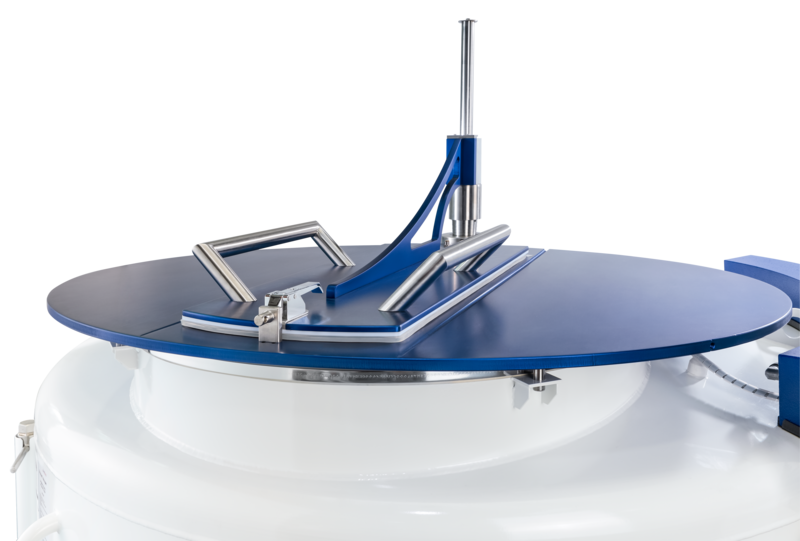

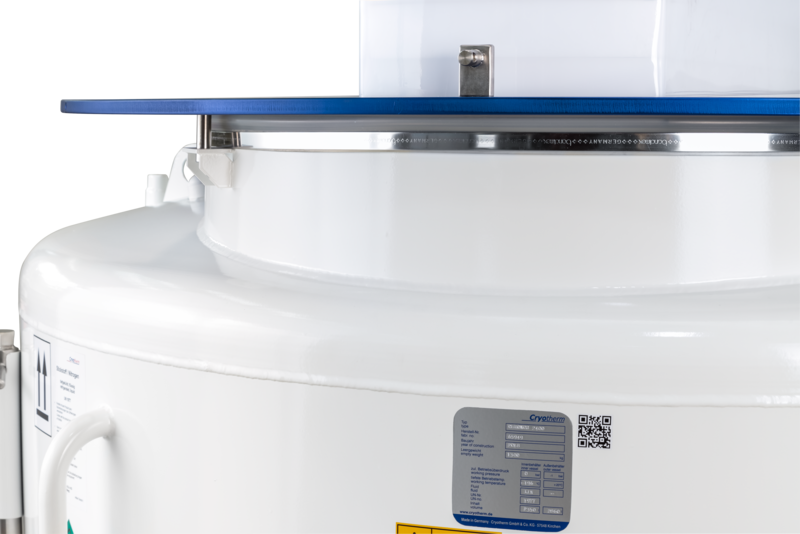

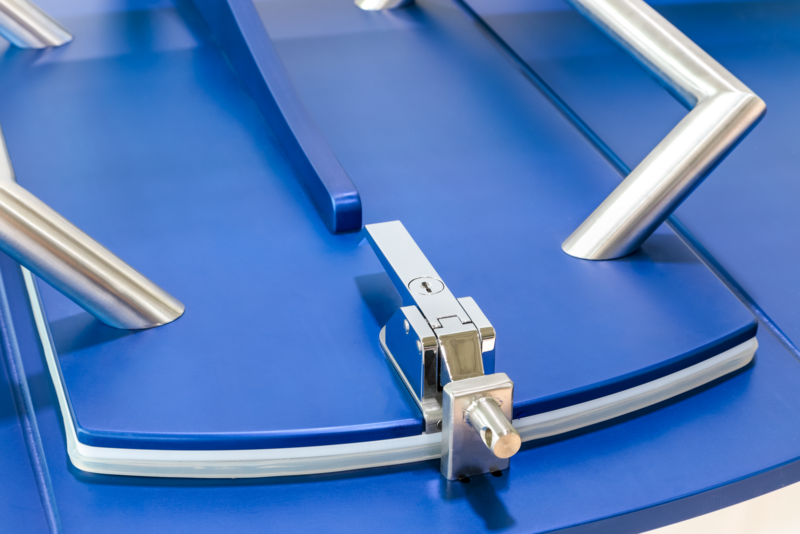

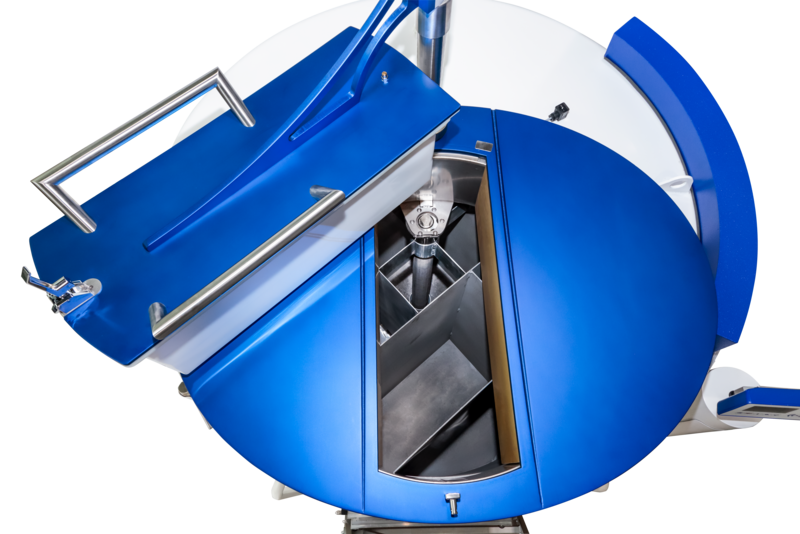

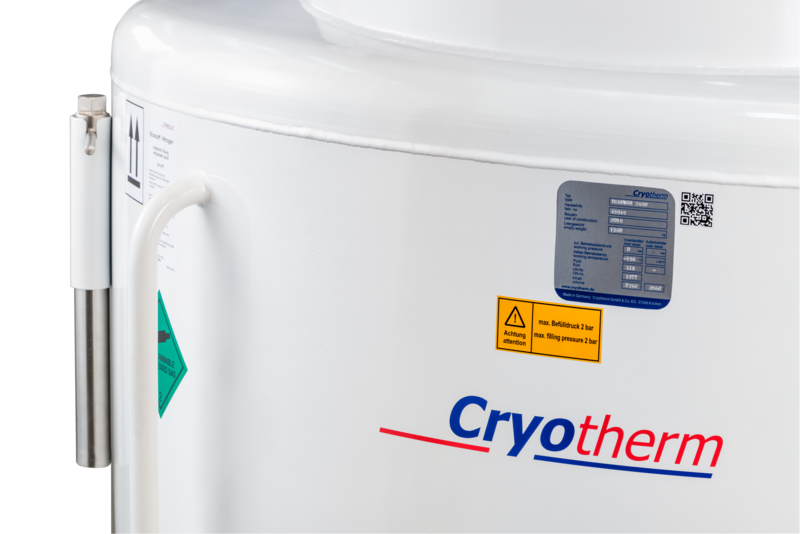

The BIOSAFE® 2400 is the 2400 l narrow-neck long-term storage model of the series, storing up to 122,400 cryogenic vials (2 ml) in the gas or liquid phase.
The BIOSAFE® Cryocooler from Cryotherm has long been a byword for quality and safety. Experience, technology and our know-how make your decision for the cryocooler BIOSAFE® easy. With various sizes and designs of BIOSAFE®, CRYOTHERM offers the complete solution for all cryopreservation tasks.
Cryopreservation of cryogenic liquefied nitrogen is proven practice in science, research, medicine, environmental research and technology. The safe cold down to -190 °C in the gas phase and the inert atmosphere enable optimum freezing and storage of valuable medical and biological samples and materials.
The Complete BIOSAFE Solution
Controlled and programmed freezing of your samples in freezers
Administration and backup of your sample data by the sample management system
Supply system for the cryogenic liquefied nitrogen via APOLLO®-supply tanks, optimised to your requirements, or directly supplied from a super insulated transfer line
The orderly, safe packaging and classification of the samples using the BIOSAFE® classification system
Remote monitoring of your samples by the remote monitoring system CRYO-MESSENGER®
Benefits
Nitrogen reserve under the adjustable bottom is sufficient for up to two weeks, depending on the size of the tank for cooling even after an occuring failure
Redundant hardware for software-independent monitoring of minimum alarm and maximum alarm
Low temperatures of -180°C, whether for small or large tanks and whether for wide-neck tanks or tanks with carousel
Remote diagnosis and remote monitoring
Medcert certified
Very low evaporation rate
Full storage capacity for gas phase storage

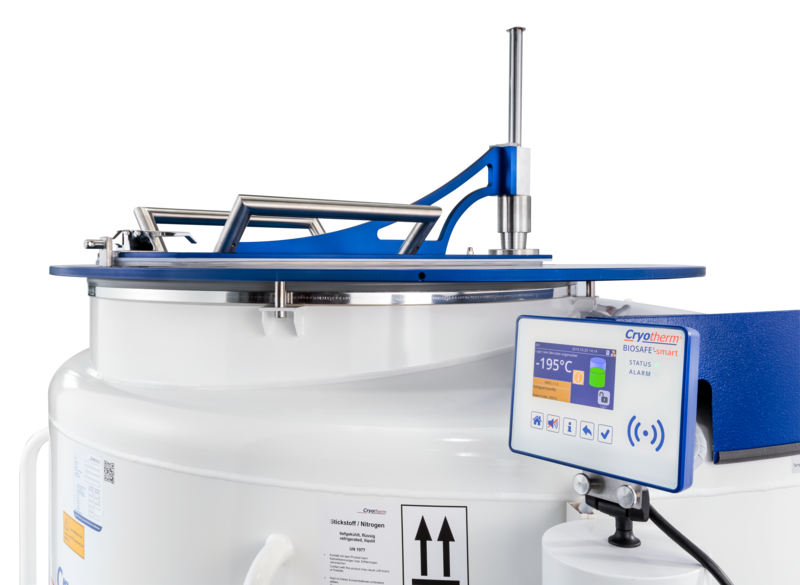

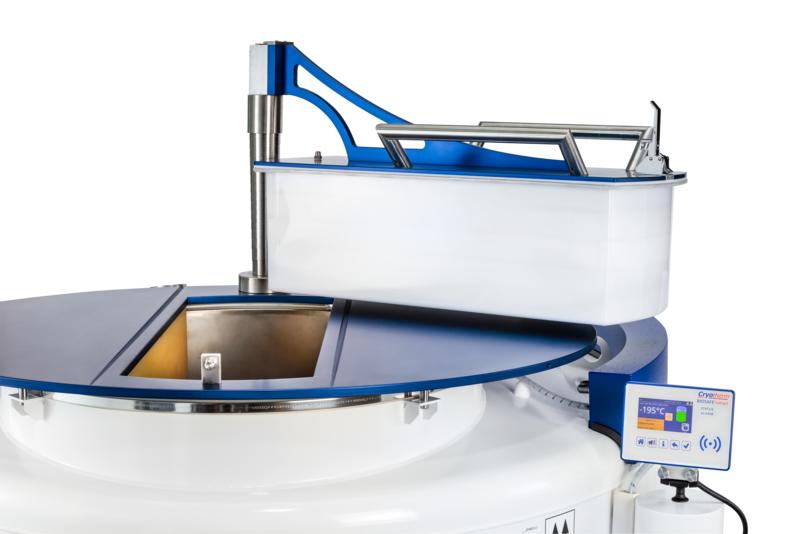

Integrated level control device and container monitoring system BIOSAFE® smart
Stainless steel design
Service for commissioning and execution of qualifications (IQ/OQ)
Technical Data
Vessel material
stainless steel
Content, geometric (l)
2400
Content, geometrically below the adjustable floor (l)
300
Weight, empty (kg)
1300
Outer diameter (mm)
1650
Inside diameter (mm)
1500
Neck diameter (mm)
830
Total height (mm)
2100/2100
Adjustment height (mm)
915

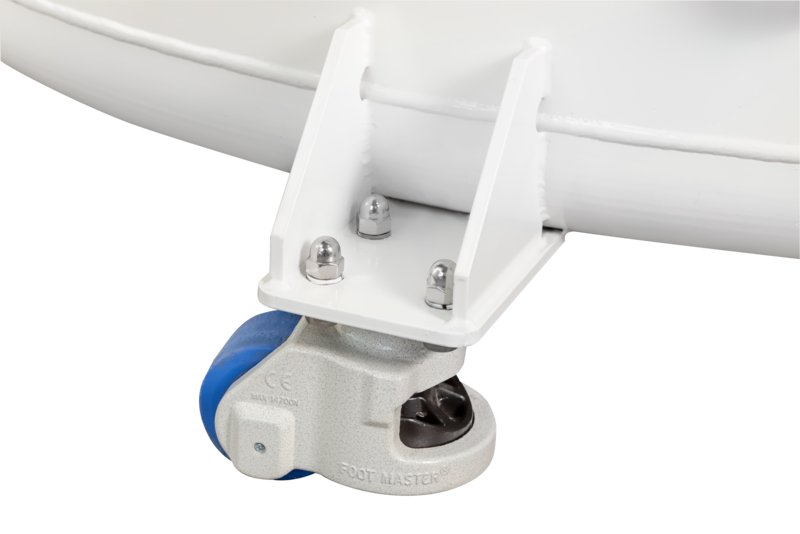

Roll diameter (mm)
100
Evaporation rate, statistical (%/day)
0.6
Storage Capacities
Sample format
Up to
2 ml vials in cryoboxes (Ø 12mm)
122,400
50ml cassettes (CryoMACS50 bags)
4,600
500ml cassettes (CryoMACS500 bags)
2,400
SBS boxes (up to 30mm height)
3,328
Flat cassettes in goblets (2 per canister)
31,488
0.25ml straws in goblets (4 - 5 per canister)
1,426,800
Vial holder in goblets (2 per canister)
11,808
Available Options
Other container sizes
Redundant fill level and container monitoring system
