The FAST READ 102® system improves the standardization of microscopic urinalysis and provides precision and reproducibility to guarantee constant readings which wiII not be influenced by variations of techniques among different operators.

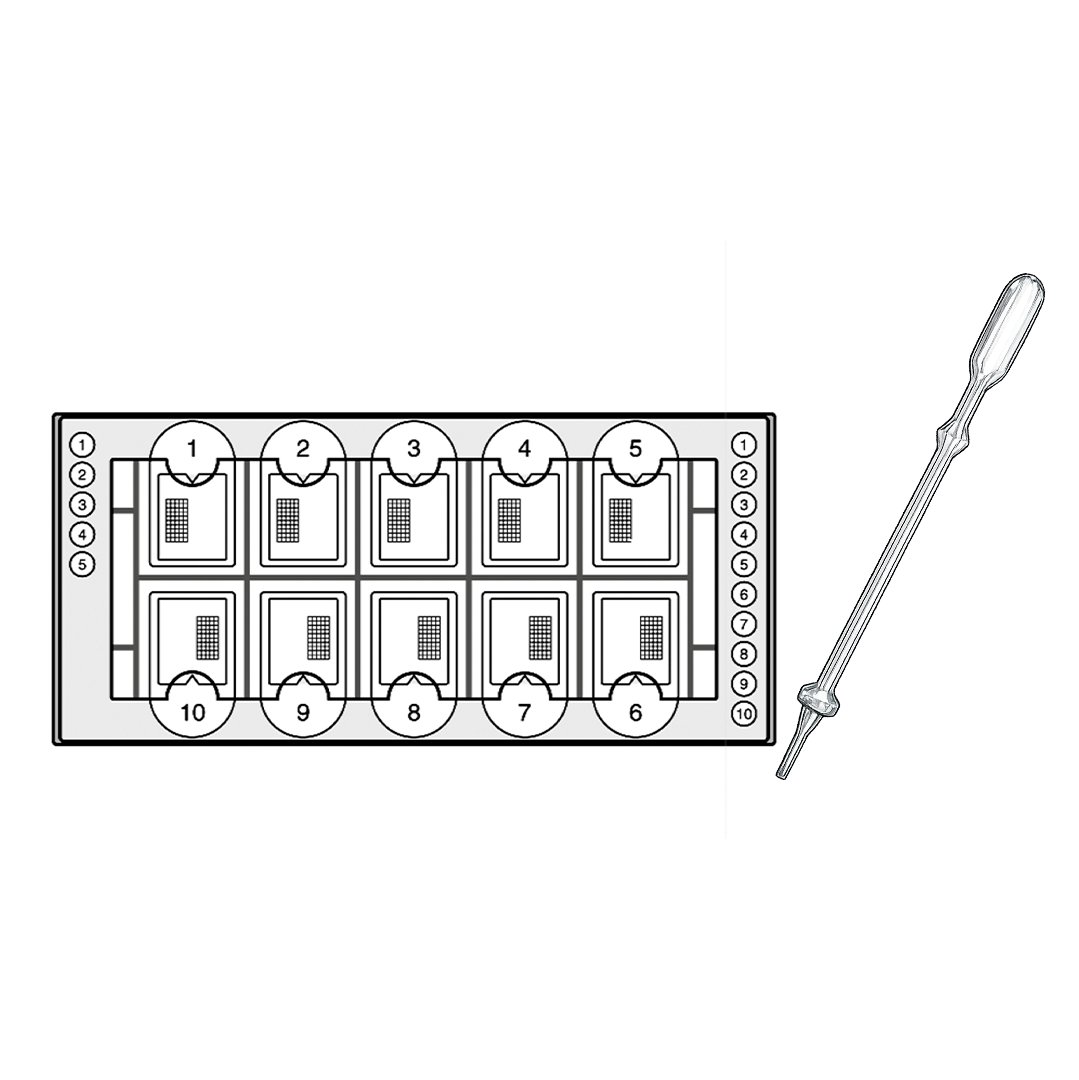

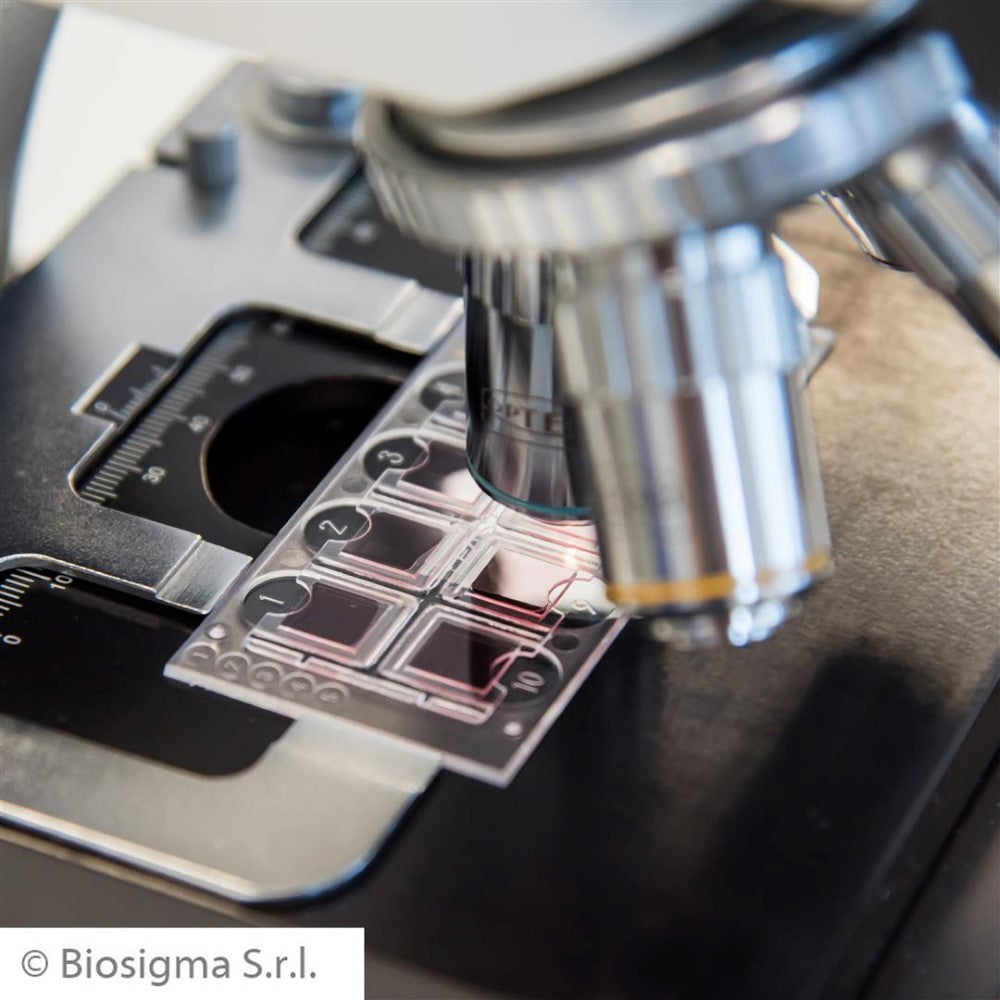

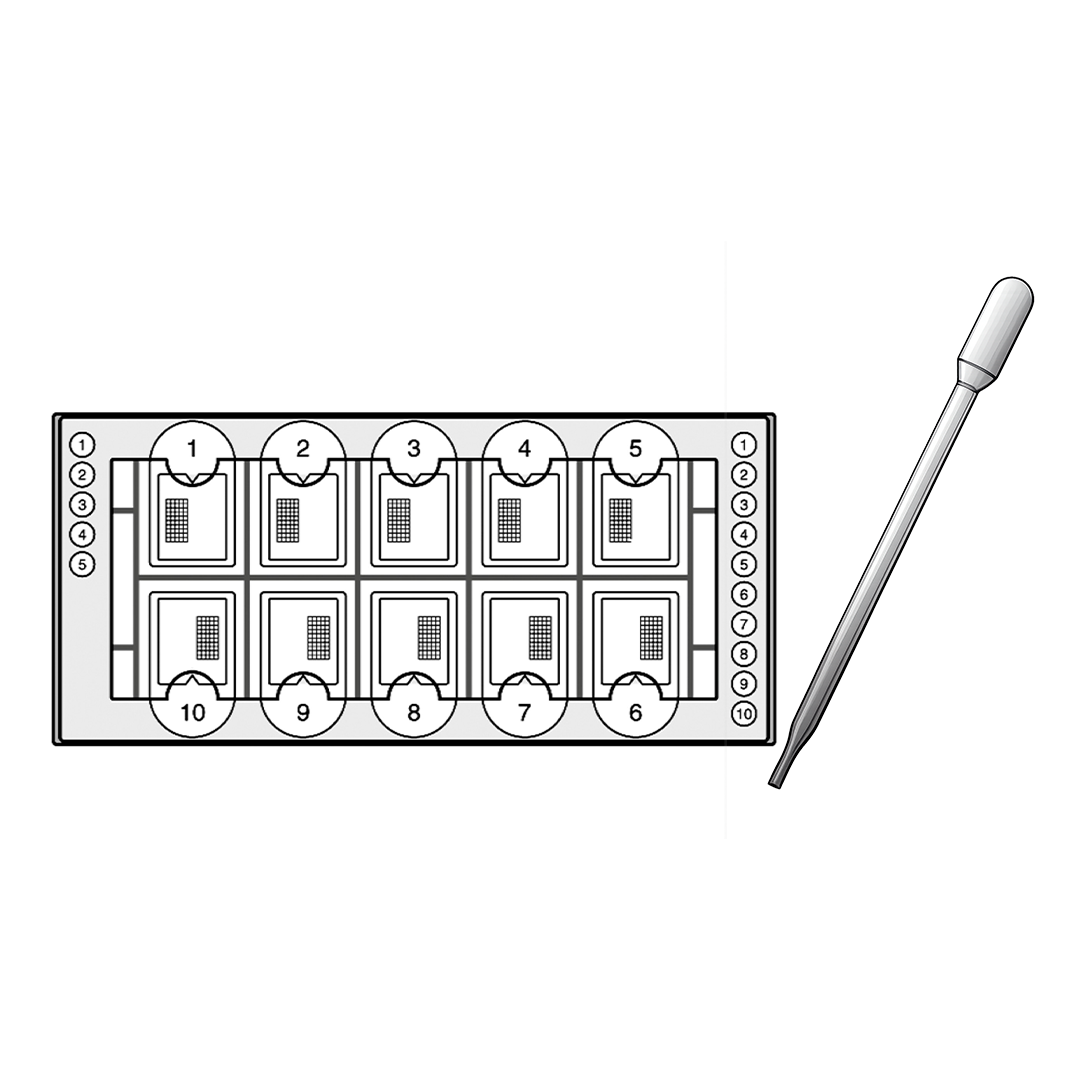

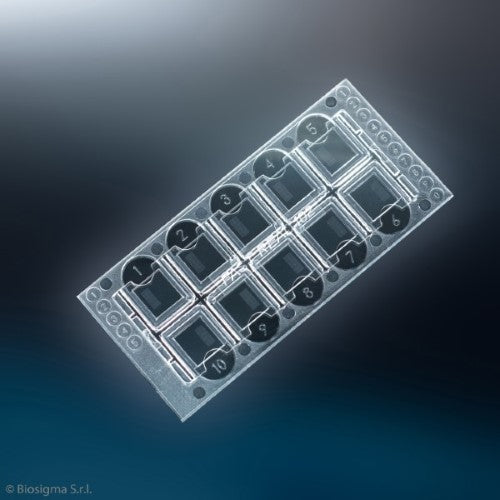

FAST READ 102® is made of a slide which is protected by an optically transparent film, with 10 independent chambers containing a standard volume of 7 µL. After dispensing the sample on the slide application area and thanks to a capillary mechanism, the sediment becomes homogeneously distributed in the reading chamber. Each chamber is fitted with its own system for the collection of excess urine to prevent any possible contamination. Furthermore FAST READ 102® slide allows easy identification of the sample by using the numbers printed on the sides.

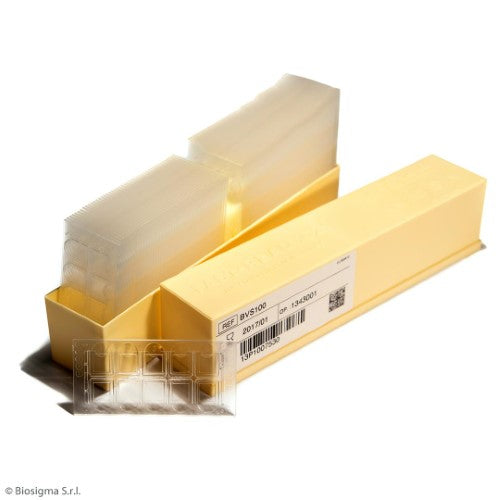

The BVS100 device is manufactured in METHACRYLATE: rigid, transparent, resistant to atmospherics agents, it replaces the glass in every its applications reaching high temperatures (lower than 90-100 °C).
Features
10 indipendent counting chambers
Easly determine specimen's number of cells per µl
Easy identification of the sample
Precision and reproducibility
Manufactured in methacrylate
CE-IVD marked
Product Information
M-T system
During urine sedimentation count it is very important using always the same sample preparation method in order to have tests’repeatibility. With traditional urine reading system, actually used by many laboratories, sedimentation compaction creates a superimposition of epithelial cells causing difficulties in verifying the presence amount of different cells components. With Biosigma M-T System it is possible to overcome those inconveniences in a few standardisation steps during sample preparation.

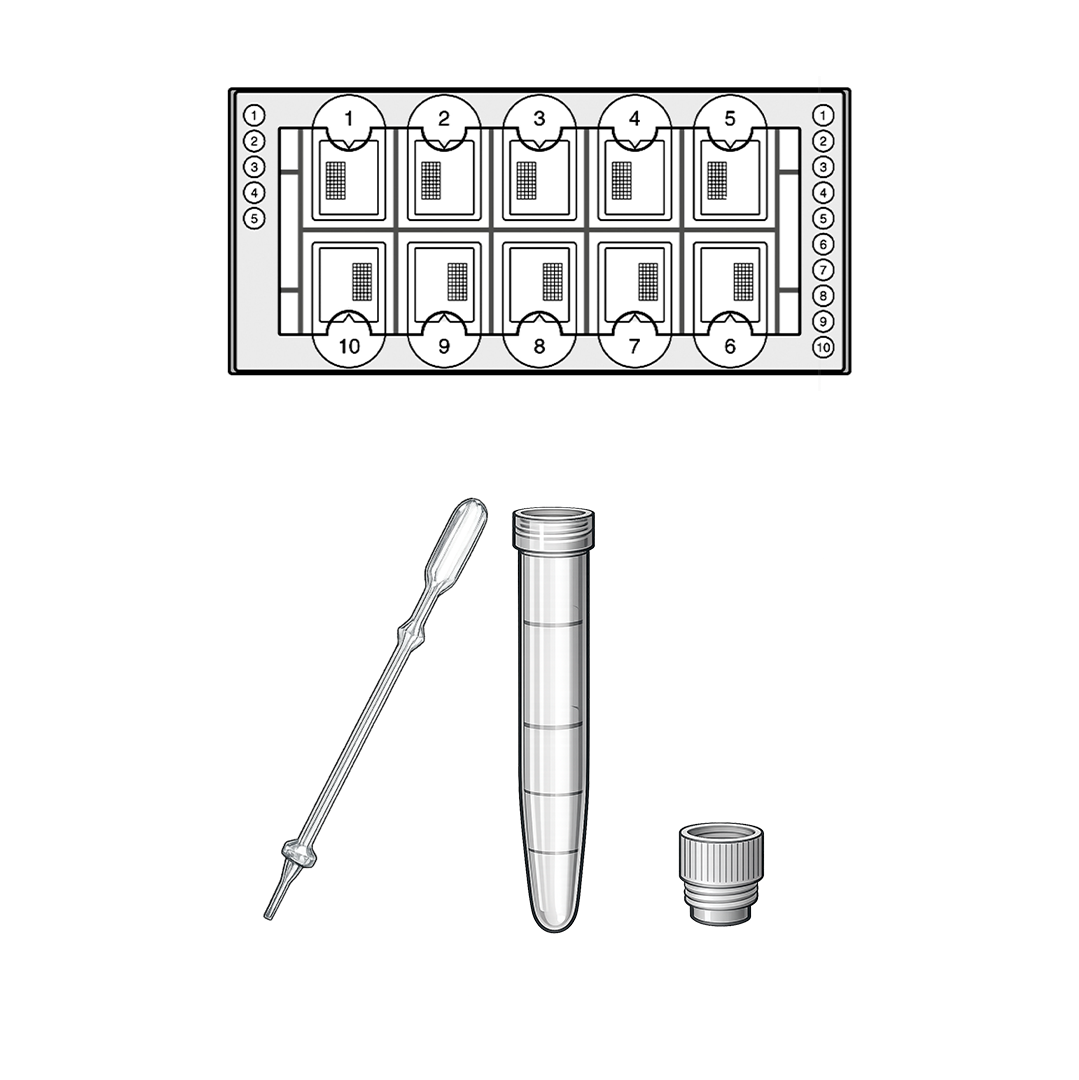

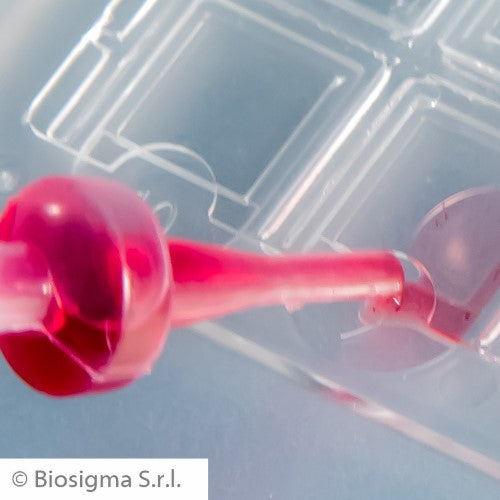

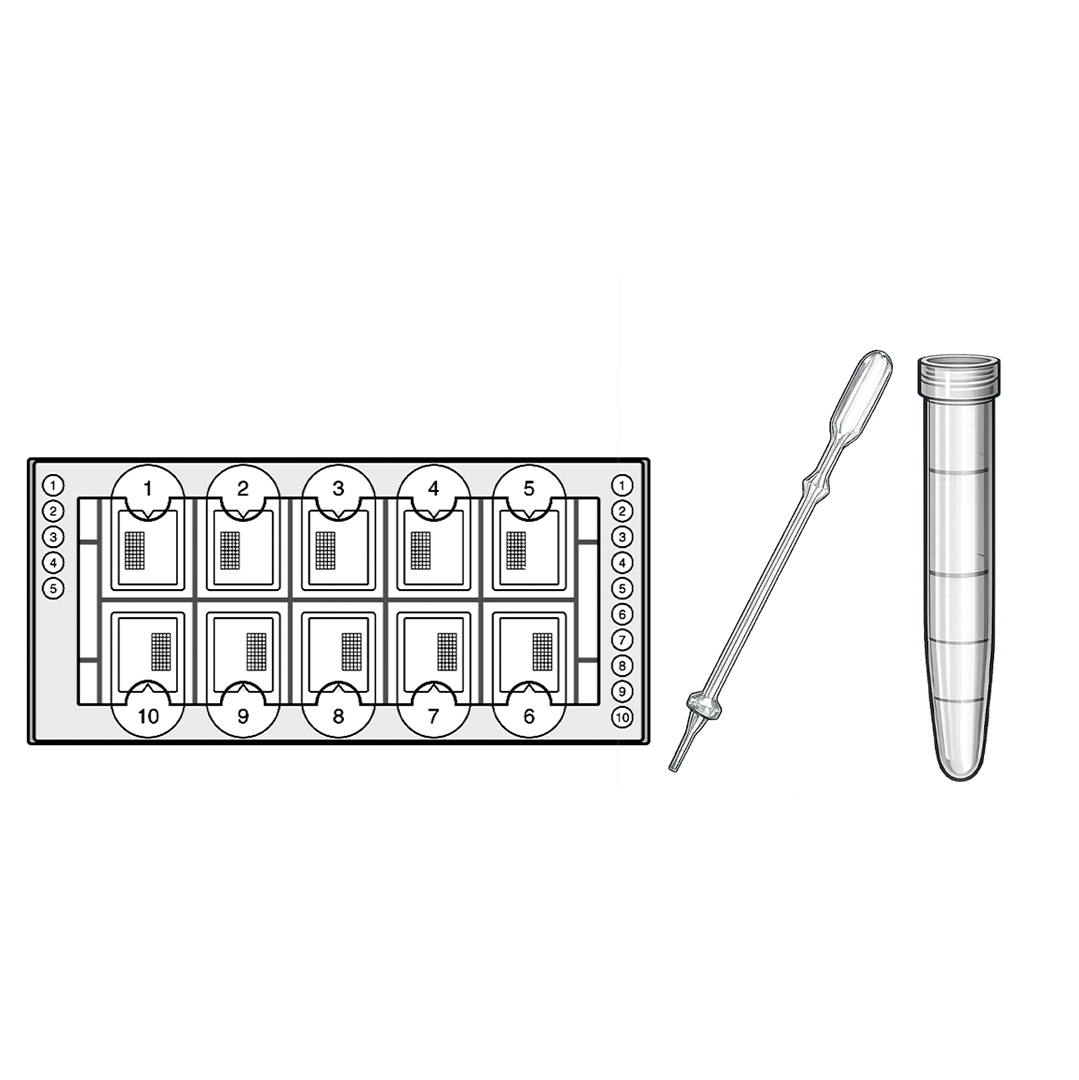

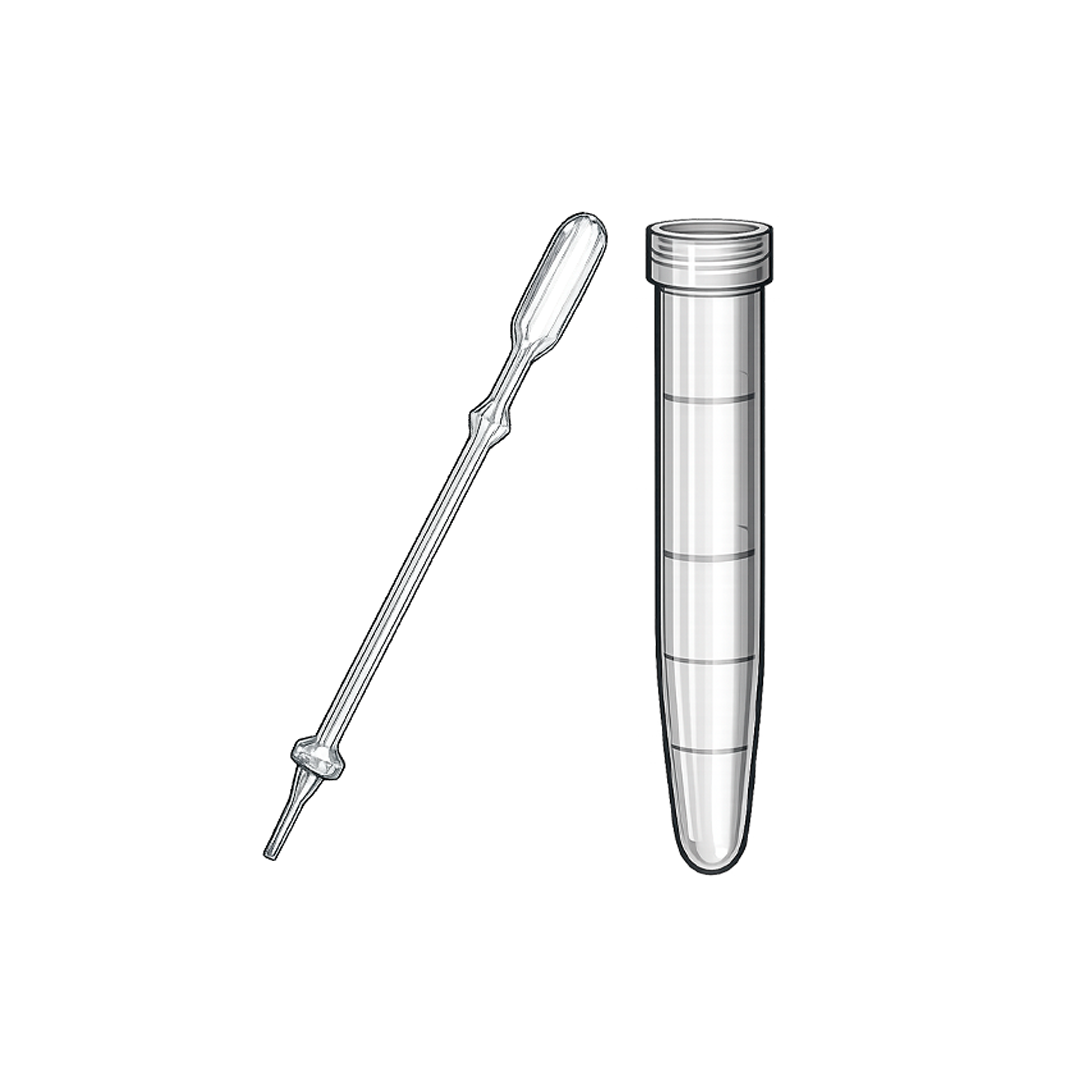

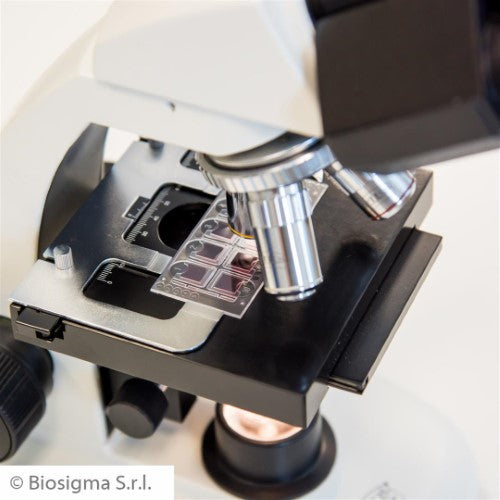

1. Fill BSP074 test tubes with 10ml of urine and then centrifuge 2. Insert tribulb M-T Microtips® BSV143 making sure to trap the tubes 3. Overturn the rack for the excess urine 4. You will get 1 ml of sediment, resuspended and ready to be analysed on Fast Read 102 ® Slides 5. Deposit a drop in the Fast Read 102® cell
How to order FAST-READ® kits 1 kit = 1.000 determinations
