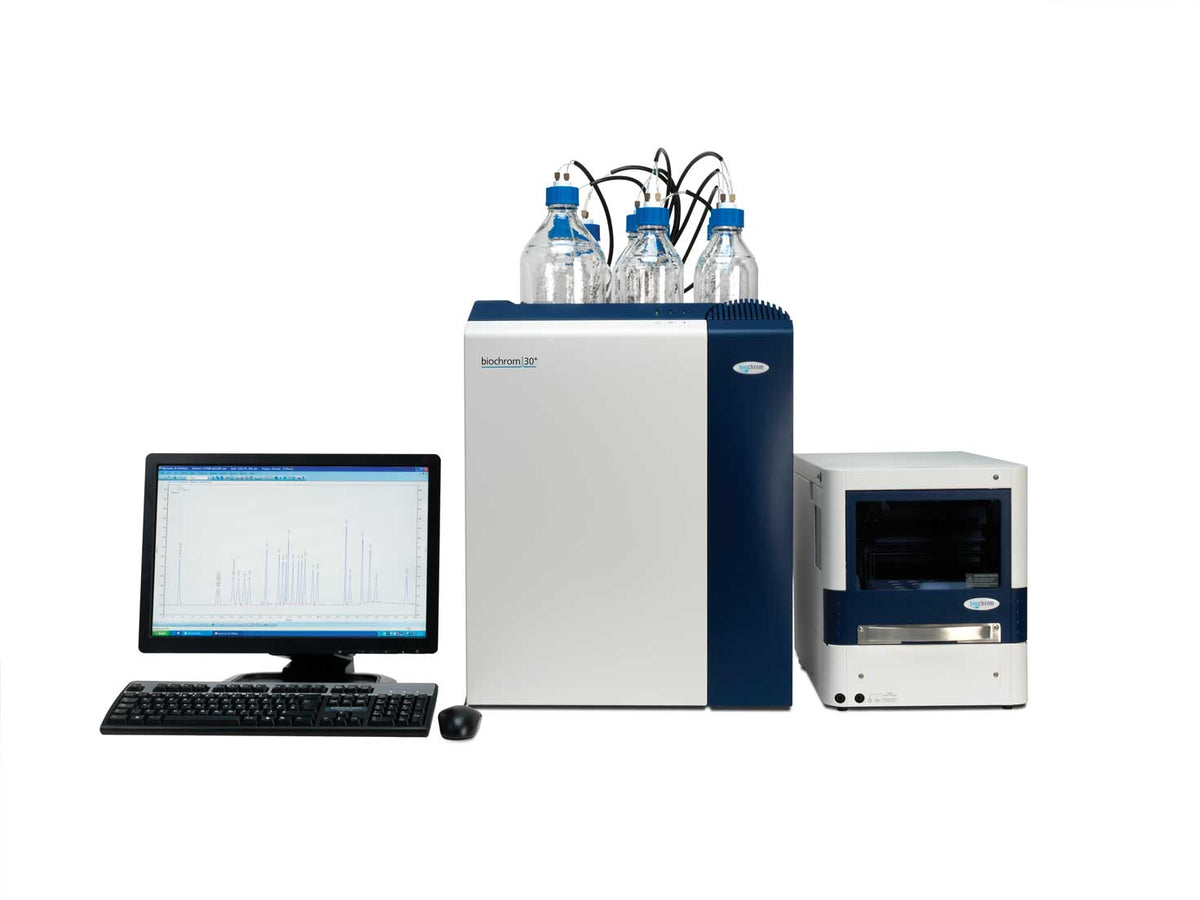

Biochrom Bio 30+ General Lab Use Amino Acid Analyzer Systems (80-6000-50)

Biochrom Bio 32+ Oxidized Protein Hydrolysate Amino Acid Analyzer Systems

SKU: 80-6000-79

0.00 NIS

Quote Required

In stock

In the competitive food industry, dieticians rely on dedicated amino acid analysis for precise protein measurement, crucial for ensuring food quality and serving as a valuable sales aid. This analysis is integral for producers to monitor quality from raw materials through final product processing.

A Dedicated Amino Acid Analysis System

Accurate:	Superb separation, accurately identifies and quantifies free amino acids, as well as the amino acid composition of proteins and peptides.
Reliable:	Minimal matrix interference and near baseline separation. Automated derivatization of amino acids maximizes reproducibility.
Fast:	Rapid protocols that increase sample throughput by cutting analysis time.
Economical:	The column cleaning and repacking service, gives columns an almost indefinite life and cuts the cost of ownership.
Fully Automated:	Total PC control allows 24/7 operations.
Versatile:	Wide variety of sample types compatible: Protein hydrolysates from various food and feedstuff samples or synthetic drugs, nutraceuticals, beverages.
Easy to implement:	No lengthy method development required as this well characterized system is established worldwide. All customers have their instrument optimized to their application directly from the factory.
Convenient:	Interchangeable sample trays allow samples to be prepared in advance and stored refrigerated.
Robust:	Advanced fluidics and robust hardware mean easy maintenance for users, backed by the reassurance of Biochrom's dedicated service and support team.
Flexible:	Integrated software, choice of different methods to adapt to the user's needs. Automatic sample set-up. Networking and exporting of data.
Compact:	Bench top design requiring minimum lab space.

Instrument Typical Package

The Instrument package consists of the Analyzer (electronics unit, pumps, and detection system) plus:

Cooled or Non-Cooled Autosampler
Column kit: analytical column and top-up ion exchange resin, prewash column and top-up ion exchange resin
Ninhydrin
Buffer Chemical Kit suitable for up to 170 analyses
Spare parts and Consumables Kit
Calibration Standard
Hardware control and data handling software
Desktop PC, LED widescreen monitor
User Manual (PDF format)
Power cables

For buffer and chemicals information, consult the Consumables tab below.

Specifications

Reproducibility: Area: < 1.5% RSD at 10 nanomoles Retention time: < 0.5 %RSD
Pumps: Two dual piston pumps with integrated pressure transducer and drain valve Ceramic pump head, sapphire pistons and valves Electronically controlled piston wash
Operating Pressures: Buffer pressure: maximum 150 bar Ninhydrin pressure: maximum 24 bar
Analytical Column: High pressure PEEK column packed with Ultropac 8 cation exchange resin. Peltier heating/cooling system
Sample Injection: 3 injection modes (full loop, partial loop and micro), 84 position autosampler Sample volumes from 1 µL to 5000 µL (200 µL loop supplied as standard)
Temperatures: Column temperature variable between 20°C and 99°C Reaction coil temperature adjustable between 40°C and 145°C (135°C is optimum)
Software: Phoenix Integrated Control Software Agilent OpenLAB CDS EZChrom Edition
Photometer: Single flow cell with optical beam splitter with detection at 440 nm and 570 nm
Weight and Dimensions: Main System: 50 kg (110 lb.) 48 x 59 x 57 cm (19 x 23 x 22 in.) Autosampler: 21kg (46 lb.) 30 x 57.5 x 36 cm (12 x 23 x 14 in.)
Required Services: Oxygen free nitrogen gas (99.99%) or argon gas regulated to 5 bar Drainage facility 240V/100V, 50Hz/60Hz, 300VA mains supply
Safety Systems: Automatic shut down and reaction coil flushing in the event of: Power failure Photometer lamp failure Low ninhydrin, low buffer, low coil or low nitrogen pressures High coil or column temperatures, high ninhydrin, high buffer or high coil pressures

Documents

Ordering Information

Catalogue No.	Configuration	Description
80-6000-79	Accelerated Buffers, Cooled Autosampler	BIO32+ ACCELERATED BUFFERS
80-6000-80	Accelerated Buffers, without Autosampler	BIO32+ ACCELERATED BUFF NO A/S
80-6000-81	Accelerated, Autosampler (no cooling)	BIO32+ ACCELERATED NO COOL A/S
80-6004-60	Sodium Oxidized High Performance, Autosampler (no cooling), Phoenix	BIO32+ NA OXHP NCOOL A/S PHNX
80-6004-61	Sodium Oxidized High Resolution, Autosampler (no cooling), Phoenix	BIO32+ NA OXHR NCOOL A/S PHNX
80-6004-62	Sodium Accelerated, Autosampler (no cooling), Phoenix	BIO32+ NA ACC NONCOOL A/S PHX
80-6004-66	Sodium Oxidized High Performance, Cooled Autosampler, Phoenix	BIO32+ NA OXHP COOL A/S PHNX
80-6004-67	Sodium Oxidized High Resolution, Cooled Autosampler, Phoenix	BIO32+ NA OXHR COOL A/S PHNX
80-6004-68	Sodium Accelerated, Cooled Autosampler, Phoenix	BIO32+ NA ACC COOL A/S PHOENIX

Specifications

Analytical column High pressure PEEK column packed with Ultropac 8 cation exchange resin. Peltier heating/cooling system
Dimensions Main System: 50 kg (110 lb.) 48 x 59 x 57 cm (19 x 23 x 22 in.) Autosampler: 21kg (46 lb.) 30 x 57.5 x 36 cm (12 x 23 x 14 in.)
Operating pressures Buffer pressure: maximum 150 bar Ninhydrin pressure: maximum 24 bar
Sample injection 3 injection modes (full loop, partial loop and micro), 84 position autosampler Sample volumes from 1 µL to 5000 µL (200 µL loop supplied as standard)
Software Phoenix Integrated Control Software Agilent OpenLAB CDS EZChrom Edition
