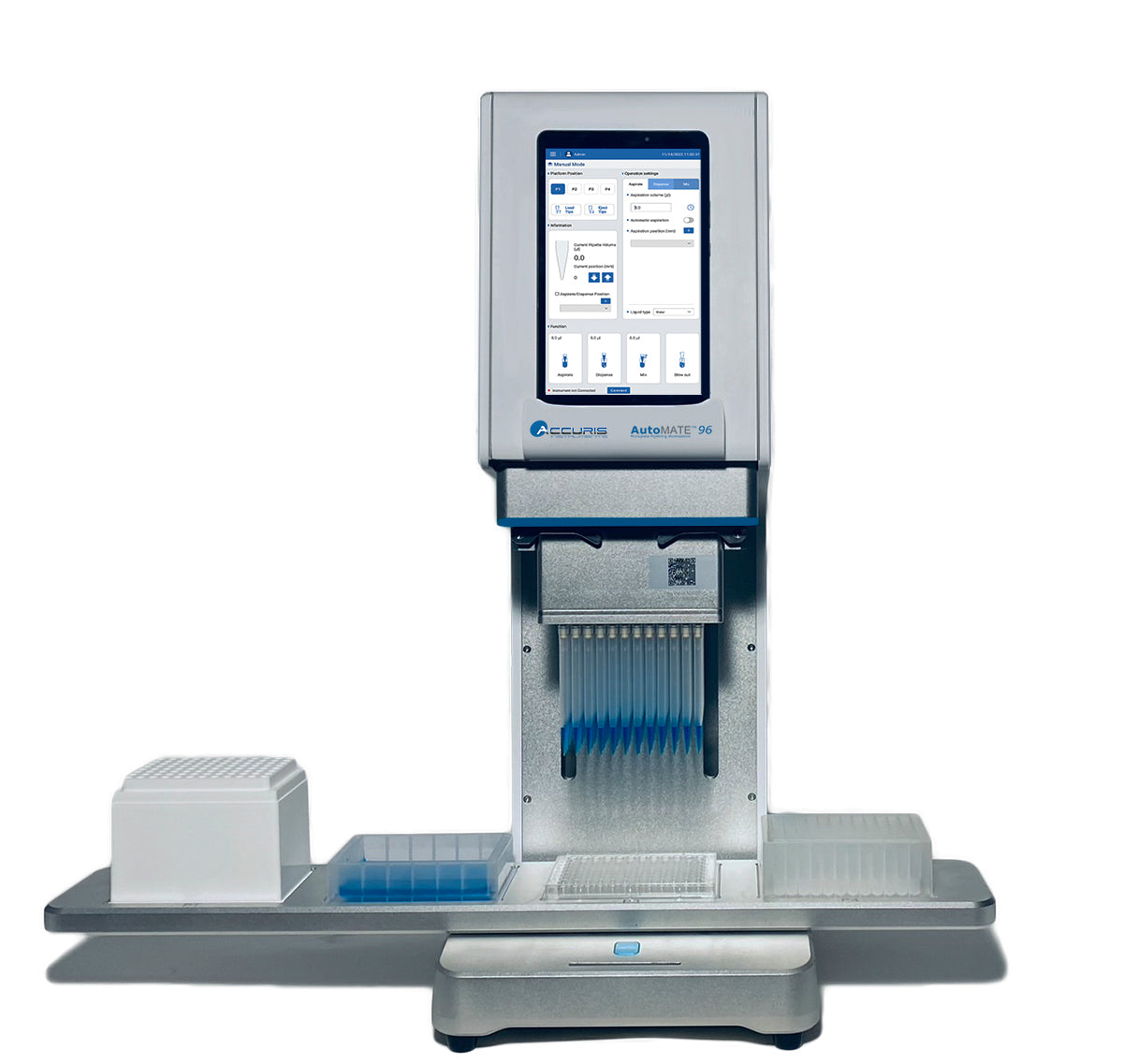

AutoMATE™ 96 Channel Pipetting Station (head not included)

The AutoMATE™ 96 from Accuris Instruments is a fully automated, high throughput liquid handling workstation that improves productivity when filling microplates. Capable of dispensing up to 96 channels simultaneously, the AutoMATE 96 significantly reduces the processing time and errors associated with manual pipetting. The included tablet features an intuitive app for programming and operation. Unlike many 96-well pipetting stations, the AutoMATE 96 is “hands-free”, with motorized tip loading/ejection and a four position, automated, sliding platform that precisely aligns the tips with the appropriate microplate/reservoir. Once programmed, the instrument can run protocols to completion without any manual positioning or adjustment. Three interchangeable heads allow for a pipetting range from 1.0µL to 1000µL. The AutoMATE 96 is compact enough to fit onto a standard lab bench or into a biosafety cabinet. Pipetting Modes: Standard Pipetting: Aspirating and dispensing reagents by hand is labor-intensive and error prone. With the AutoMATE 96, reagents can be aspirated and dispensed automatically, ensuring accurate and precise transfer to and from microplates or reservoirs. Multi-Dispensing (Repeat Pipetting): Continually filling microplates is a time-consuming process that can often result in hand fatigue. With the Multi-Dispensing function, repeatedly filling microplates can be automated and accomplished quickly without introducing hand strain or fatigue. Secondary-Dispensing (Plate Filling): Many protocols and applications call for filling a plate with multiple samples or reagents. With the AutoMATE 96, multiple reagents can be aspirated and dispensed into the same microplate. For improved results, each dispense can be programmed to be include a mixing step. Serial Dilutions: Performing serial dilutions via manual methods is labor-intensive and error prone. Errors in this process will amplify subsequent dilutions as the process continues. With the AutoMATE 96, serial dilutions can be performed automatically and error free. Mixing: Mixing reagents by hand is strenuous and can be inconsistent. With the AutoMATE 96, mixing can be performed automatically with adjustable speeds, ensuring consistency. Reverse Pipetting: When the accuracy of pipetting volume is critical, the AutoMATE 96 can be set to reverse pipetting mode. This technique greatly improves accuracy &precision with small volumes of biological fluids. Software and Programming Two operating modes are available and can be selected per the user’s preference. Manual Mode: Perform operations quickly & efficiently simply by selecting each function individually. Manual functions: • Load tips • Eject tips • Aspirate reagents • Dispense reagents • Mix reagents • Blow out reagents Automated Program Mode: Create a protocol made up of multiple steps in succession. This interface allows for complex protocols to be run from tip-loading through completion with the touch of a button. Programmable steps: • Load/Eject Tips • Aspirate/Dispense reagents • Perform serial dilutions • Rinse tips • Repeat a cycle • Pause after a certain step Broad Labware Compatibility: All brands of microplates and reservoirs meeting SLAS/ANSI formats are compatible for use with the AutoMATE 96. Included plate adapters allow 384 well microplates and PCR plates to be used. Fully Automated Tip Loading and Ejection: Motorized tip loading and ejection provides handsfree, consistent tip loading throughout all 96 wells.

Specifications

Display	8-inch color touch screen tablet (included)
Aspirate/Dispense volume	1-1000µl (depending on pipetting
Platform capacity	4 (tip racks/plates/reservoirs)
Channels	96 individual pistons
Pipetting technology	Air Displacement
Compatible plate formats	96/384 well microplates, shallow/deep well plates, PCR plates
Communication Ports	USB Ports for importing/exporting
Voltage Input	Universal 120 to 240VAC, 50-60Hz
Power	100W
Weight	32.6 kg / 71.8 lbs
Dimensions	69.0 x 35.0 x 67.3 cm / 27.2 x 13.8 x 26.5 in.

Documents

• Brochure (PDF)
• Manual (PDF)
