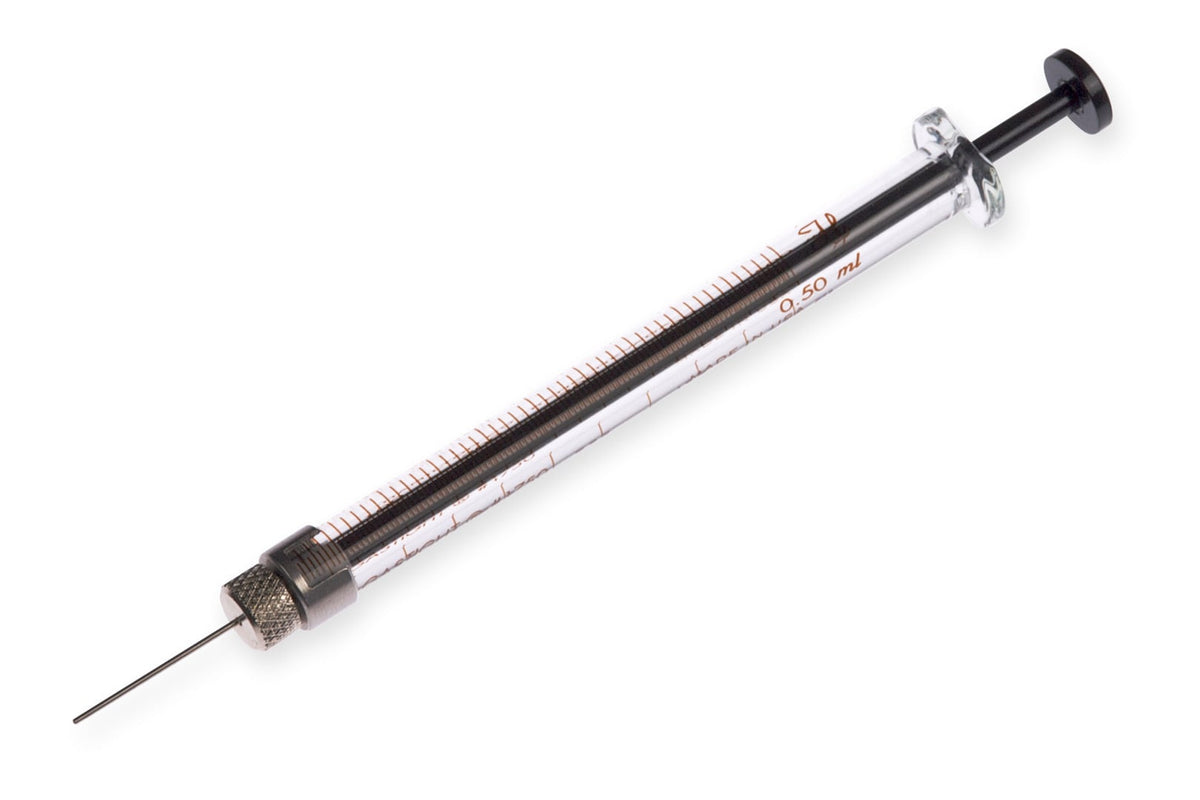

500 µL, Gastight Valco VISP-1 Syringe, Large Removable Needle (RN)
Vendor: Hamilton Company
SKU: 81231
In stock
Hamilton’s 1700 series, Gastight #1750 Removable Hub (RN) Needle syringe is designed for use with Valco VISF-1 HPLC injection valves.
Hamilton 1700 series syringes are Gastight versions of the 700 series, ideal for dispensing liquids and gases. Their polymer plunger tip ensures a leak-free seal. These syringes offer upto 1% accuracy, superior durability, and are made from high-quality, chemically resistant materials.
Specifications
| Volume | 500 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1700 |
| Termination | Removable Needle (RN) |
| Needle | Large RN |
| Gauge | 22 gauge |
| Point Style | 3: Blunt |
| Needle Length | 0.75 inches (19.0 mm) |
| Plunger Style | Standard Plunger |
| Fluid Path | SST, Borosilicate glass, PTFE |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 700 psig (48.3 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.128 inches (3.26 mm) |
| Barrel Outer Diameter | 0.305 inches (7.75 mm) |
| Needle Inner Diameter | 0.0161 inches (0.41 mm) |
| Needle Outer Diameter | 0.0283 inches (0.72 mm) |
| Std Needle Dead Volume | 2.55 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 1750 |
Documents
Specifications
- Autoclavable Yes
- Barrel inner diameter 0.128 inches (3.26 mm)
- Barrel outer diameter 0.305 inches (7.75 mm)
- Fluid path SST, Borosilicate glass, PTFE
- Gas sterilizable Yes
- Gauge 22 gauge
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle Large RN
- Needle inner diameter 0.0161 inches (0.41 mm)
- Needle length 0.75 inches (19.0 mm)
- Needle outer diameter 0.0283 inches (0.72 mm)
- Plunger style Standard Plunger
- Point style 3: Blunt
- Pressure 700 psig (48.3 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 2.55 µL
- Sub category Gastight Syringes
- Syringe model number 1750
- Syringe series 1700
- Syringe type Gastight
- Termination Removable Needle (RN)
- Volume 500 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
