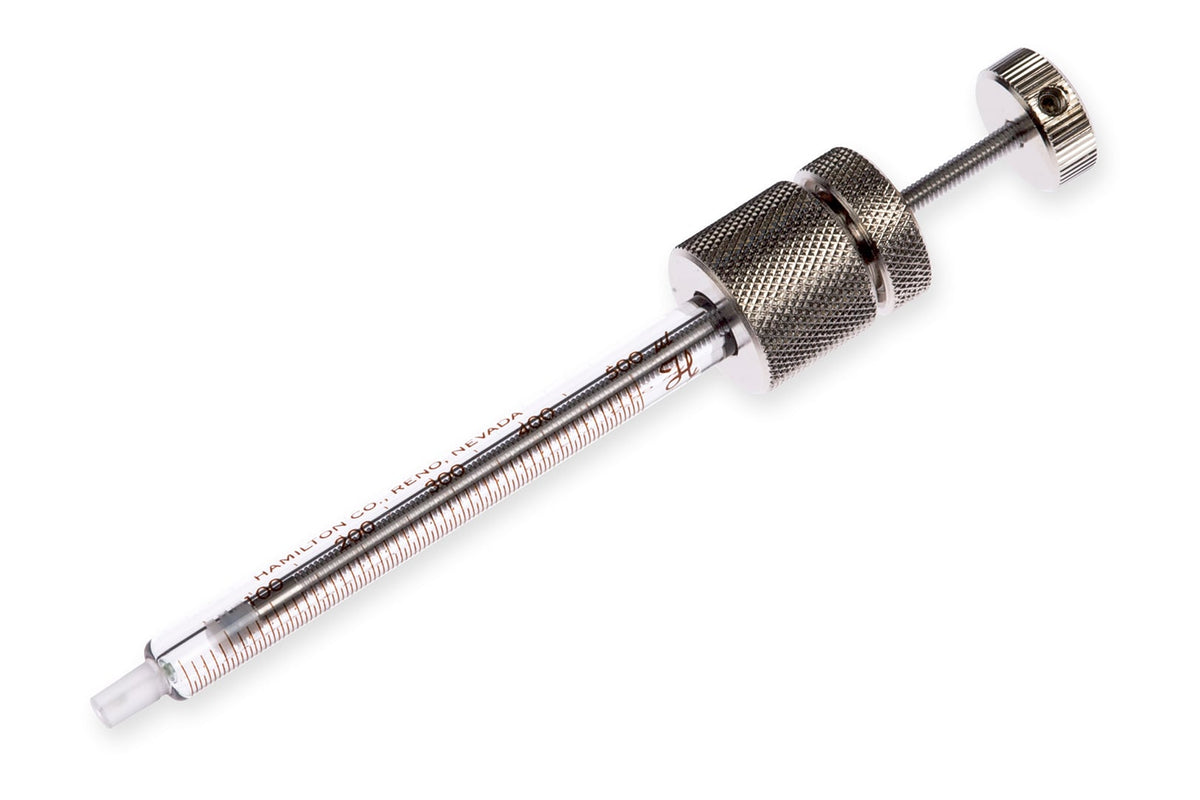

500 µL, Gastight Threaded Plunger Syringe, Luer Tip (LT)
Vendor: Hamilton Company
SKU: 81242
In stock
Hamilton's 1700 series, Gastight Instrument # 1750 Diluter PTFE Luer Lock (D) Syringe with X-Style plunger has a PTFE Luer Lock male fitting with an M6 female side port. The X-style plunger is intended for use with syringe pumps, diluters, and dispensers. A special plunger button protects the delicate plunger wire by stopping the pump at the zero line before damaging the tip. The Hamilton 1700 series syringes are Gastight versions of the 700 series, ideal for dispensing liquids and gases. Their polymer plunger tip ensures a leak-free seal. These syringes offer up to 1% accuracy, superior durability, and are made from high-quality, chemically resistant materials.
Specifications
| Volume | 500 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1700 |
| Termination | Luer Tip (LT) |
| Needle | Kel-F Hub |
| Gauge | No Needle Included |
| Point Style | No Needle Included |
| Needle Length | No Needle Included |
| Plunger Style | Threaded Plunger |
| Fluid Path | Borosilicate glass, PTFE |
| Autoclavable | Yes to 115 °C |
| Gas Sterilizable | Yes |
| Pressure | 700 psig (48.3 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.128 inches (3.26 mm) |
| Barrel Outer Diameter | 0.305 inches (7.75 mm) |
| Volume per rotation | 5.29 µL |
| Std Needle Dead Volume | N/A |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 1750 |
Documents
Specifications
- Autoclavable Yes to 115 °C
- Barrel inner diameter 0.128 inches (3.26 mm)
- Barrel outer diameter 0.305 inches (7.75 mm)
- Fluid path Borosilicate glass, PTFE
- Gas sterilizable Yes
- Gauge No Needle Included
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle Kel-F Hub
- Needle length No Needle Included
- Plunger style Threaded Plunger
- Point style No Needle Included
- Pressure 700 psig (48.3 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume N/A
- Sub category Gastight Syringes
- Syringe model number 1750
- Syringe series 1700
- Syringe type Gastight
- Termination Luer Tip (LT)
- Volume 500 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
