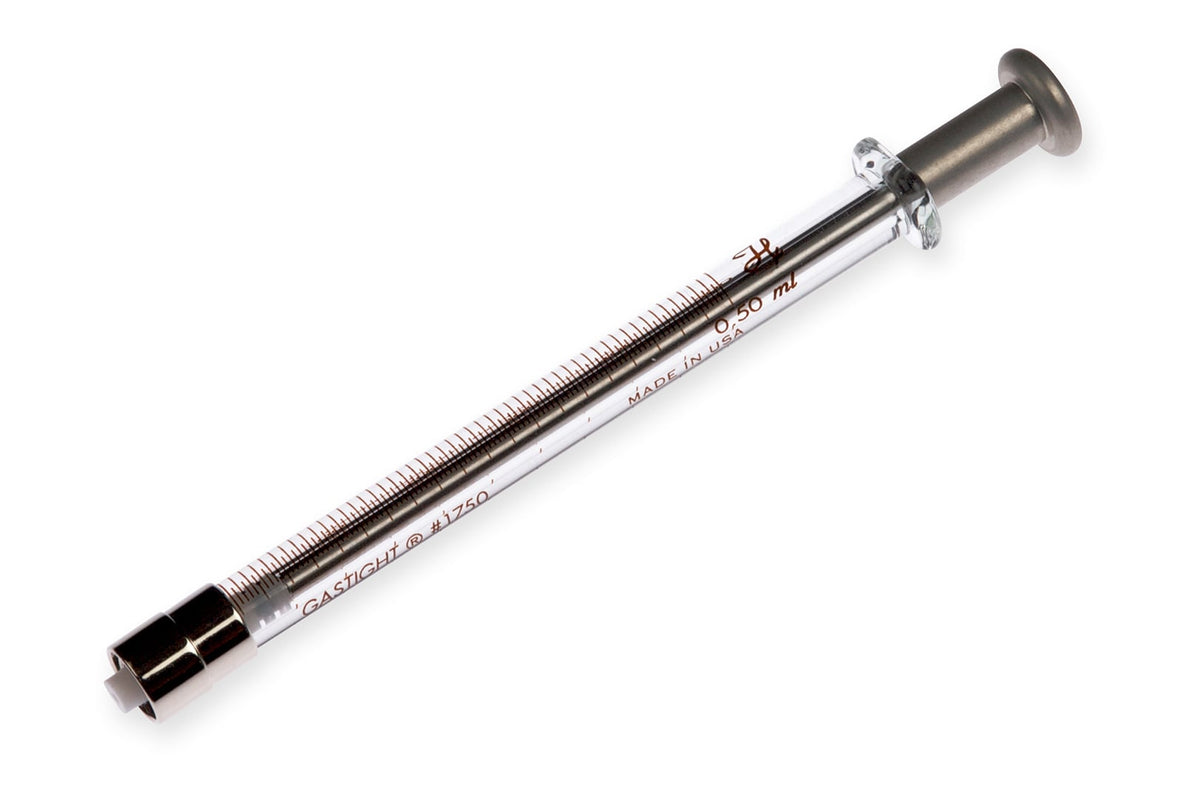

500 µL, Gastight Instrument Syringe, Luer Lock (TLL)
Vendor: Hamilton Company
SKU: 81222
In stock
Hamilton’s 1700 series, Gastight #1750 Luer Lock (TLL) syringe with X-style plunger is designed for use with instruments. Compatible with standard female Luer Lock connectors. Commonly used as instrument syringes with PSD/ 6 syringes, Tecan Diluters and Samplers.
The 1700 series syringes are the Gastight version of the Hamilton 700 series syringes. This series of syringes are ideal for dispensing both liquids and gases. They have a polymer plunger tip that creates a leak-free seal. With a wide range of volume capabilities, terminations, needle options and plunger styles, this syringe series provides exceptional flexibility and versatility. Hamilton syringes ensure an accuracy of ± 1%, superior durability, and are manufactured with the highest quality chemically resistant materials.
Specifications
| Volume | 500 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1700 |
| Termination | PTFE Luer Lock (TLL) |
| Needle | Metal (N) or Kel-F |
| Gauge | No Needle Included |
| Point Style | No Needle Included |
| Needle Length | No Needle Included |
| Plunger Style | X-Style |
| Fluid Path | Borosilicate glass, PTFE |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 200 psig (13.8 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.128 inches (3.26 mm) |
| Barrel Outer Diameter | 0.305 inches (7.75 mm) |
| Std Needle Dead Volume | N/A |
| Sales Quantity | 1 syringe per pack |
| Stroke Length | 60 mm |
| Syringe Model Number | 1750 |
Documents
Specifications
- Autoclavable Yes
- Barrel inner diameter 0.128 inches (3.26 mm)
- Barrel outer diameter 0.305 inches (7.75 mm)
- Fluid path Borosilicate glass, PTFE
- Gas sterilizable Yes
- Gauge No Needle Included
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle Metal (N) or Kel-F
- Needle length No Needle Included
- Plunger style X-Style
- Point style No Needle Included
- Pressure 200 psig (13.8 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume N/A
- Sub category Gastight Syringes
- Syringe model number 1750
- Syringe series 1700
- Syringe type Gastight
- Termination PTFE Luer Lock (TLL)
- Volume 500 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
