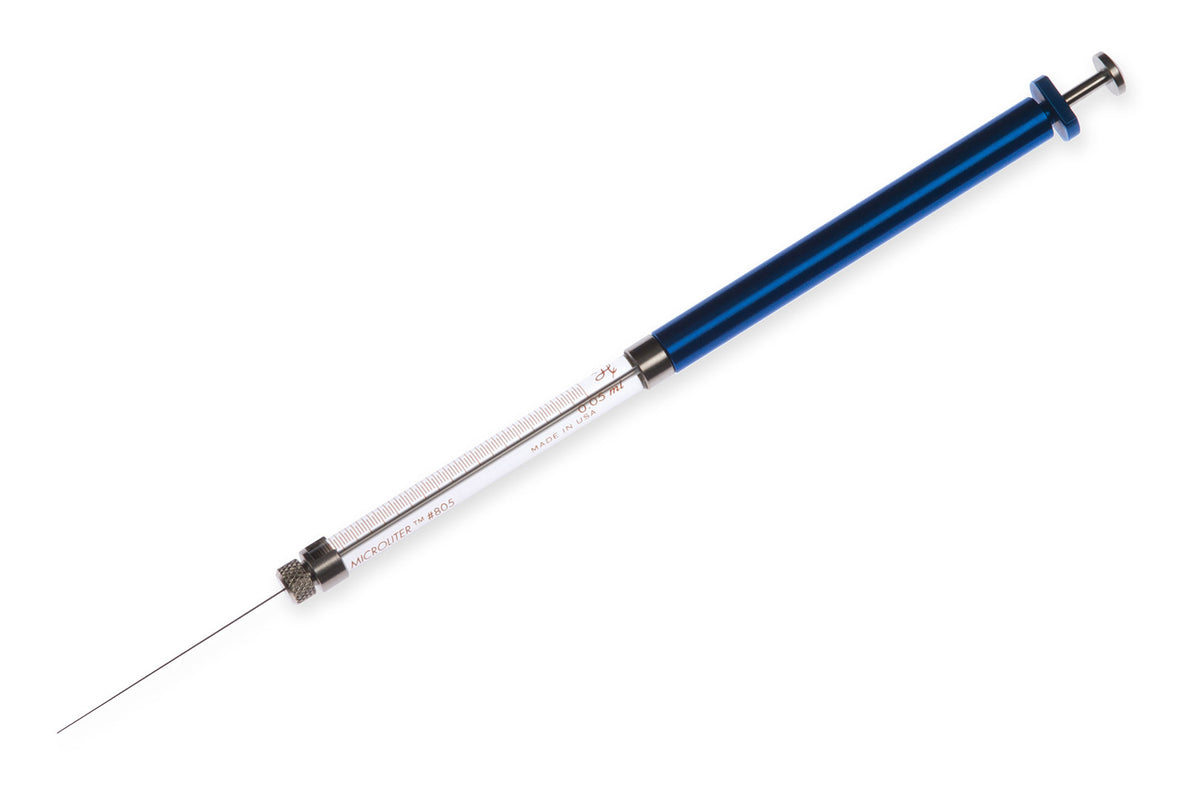

50 µL, Microliter Waters Autosampler Syringe, Removable Needle (RN)
Vendor: Hamilton Company
SKU: 84817
In stock
Hamilton's 800 series, Microliter # 805 Removable Needle (RN) Waters Autosampler Syringe is a reinforced plunger version of the 700 series syringe. This syringe also features a blue Syringe Holder attached to the flange. This unique component safeguards against any heat transfer from the barrel, ensuring accurate dispensing. The reinforced plunger provides crucial support to delicate small-volume plungers, preventing bending and maintaining injection integrity. Commonly used with Waters U6K valve for manual HPLC injections.
Specifications
| Volume | 50 µL |
|---|---|
| Syringe Type | Microliter |
| Syringe Series | 800 |
| Termination | Removable Needle (RN) |
| Needle | Small RN |
| Gauge | 25s gauge |
| Point Style | 3: Blunt |
| Needle Length | 1.97 inches (50.0 mm) |
| Plunger Style | Reinforced Plunger |
| Fluid Path | SST, borosilicate glass |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 2000 psig (137.9 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.041 inches (1.03 mm) |
| Barrel Outer Diameter | 0.305 inches (7.75 mm) |
| Needle Inner Diameter | 0.007 inches (0.18 mm) |
| Needle Outer Diameter | 0.02 inches (0.508 mm) |
| Std Needle Dead Volume | 0.91 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 805 |
Documents
Specifications
- Autoclavable Yes
- Barrel inner diameter 0.041 inches (1.03 mm)
- Barrel outer diameter 0.305 inches (7.75 mm)
- Fluid path SST, borosilicate glass
- Gas sterilizable Yes
- Gauge 25s gauge
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle Small RN
- Needle inner diameter 0.007 inches (0.18 mm)
- Needle length 1.97 inches (50.0 mm)
- Needle outer diameter 0.02 inches (0.508 mm)
- Plunger style Reinforced Plunger
- Point style 3: Blunt
- Pressure 2000 psig (137.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 0.91 µL
- Sub category Microliter Syringes
- Syringe model number 805
- Syringe series 800
- Syringe type Microliter
- Termination Removable Needle (RN)
- Volume 50 µL
links and documants
- Instructions url Click here
- Source url Click here
- Specification url Click here
