50 µL, Gastight Syringe, Constant Rate
Vendor: Hamilton Company
SKU: 84303
In stock

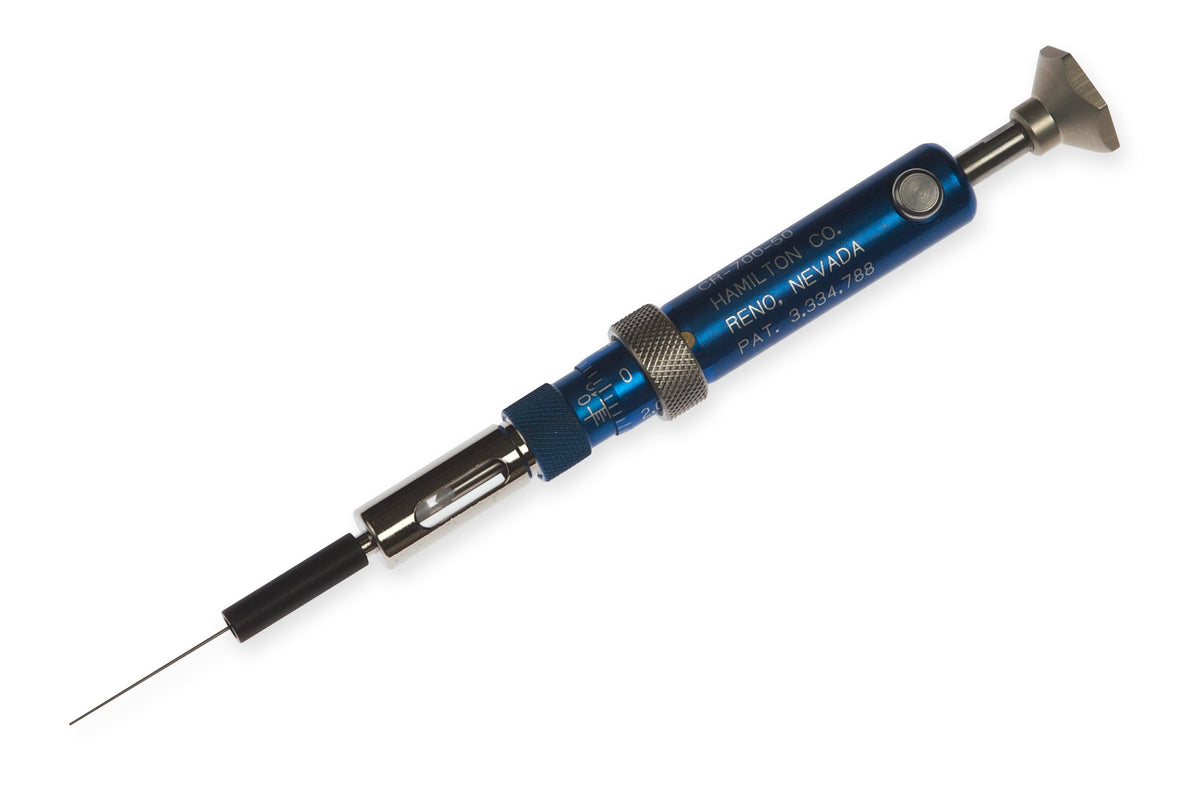

Hamilton's Gastight #CR700 Constant Rate syringe has preset volumes that can be dispensed at a constant flow rate. The volume is adjustable with a precisely adjustable micrometer screw. The adjusted volume can be fixed with a locking ring. Reproducible injection speed is obtained by means of a spring. The sample is delivered by pressing the push button. Constant Rate Syringe needles are 51 mm in length and point style 3.
Specifications
| Volume | 50 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | CR-700 |
| Termination | Special |
| Needle | CR-700 |
| Gauge | 22 gauge |
| Point Style | 3: Blunt |
| Needle Length | 2 inch (51 mm) |
| Fluid Path | SST, Borosilicate glass, PTFE |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 1000 psig (68.9 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Needle Inner Diameter | 0.0161 inches (0.41 mm) |
| Needle Outer Diameter | 0.0283 inches (0.72 mm) |
| Std Needle Dead Volume | 6.81 µL |
| Sales Quantity | 1 syringe per pack |
Documents
Specifications
- Autoclavable No
- Fluid path SST, Borosilicate glass, PTFE
- Gas sterilizable Yes
- Gauge 22 gauge
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle CR-700
- Needle inner diameter 0.0161 inches (0.41 mm)
- Needle length 2 inch (51 mm)
- Needle outer diameter 0.0283 inches (0.72 mm)
- Point style 3: Blunt
- Pressure 1000 psig (68.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 6.81 µL
- Sub category Syringe Applications
- Syringe series CR-700
- Syringe type Gastight
- Termination Special
- Volume 50 µL
links and documants
- Instructions url Click here
- Source url Click here
- Specification url Click here
