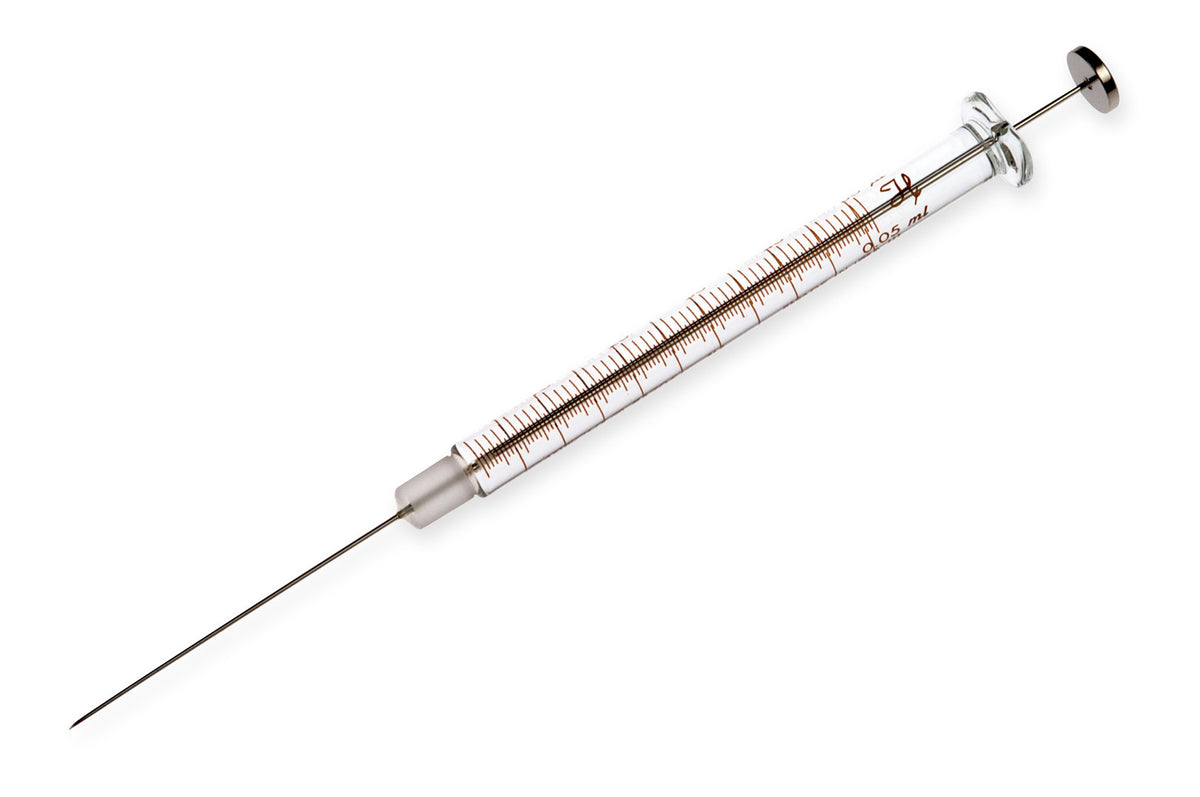

50 µL, Gastight Syringe, Cemented Needle (N)
Vendor: Hamilton Company
SKU: 80900
In stock
Hamilton’s 1700 series, Gastight #1705 Cemented Needle (N) syringe is designed for manual dispensing and standard injections in GC.
The 1700 series syringes are the Gastight version of the Hamilton 700 series syringes. This series of syringes are ideal for dispensing both liquids and gases. They have a polymer plunger tip that creates a leak-free seal. With a wide range of volume capabilities, terminations, needle options and plunger styles, this syringe series provides exceptional flexibility and versatility. Hamilton syringes ensure an accuracy of ± 1%, superior durability, and are manufactured with the highest quality chemically resistant materials.
Specifications
| Volume | 50 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1700 |
| Termination | Cemented Needle (N) |
| Needle | Cemented Needle |
| Gauge | 22s gauge |
| Point Style | 2: Curved, Beveled |
| Needle Length | 2 inch (51 mm) |
| Plunger Style | Standard Plunger |
| Fluid Path | SST, Borosilicate glass, PTFE |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 1000 psig (68.9 bar) |
| Maximum Operating Temperature | 50°C / 122°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.041 inches (1.03 mm) |
| Barrel Outer Diameter | 0.305 inches (7.75 mm) |
| Needle Inner Diameter | 0.0059 inches (0.15 mm) |
| Needle Outer Diameter | 0.0283 inches (0.72 mm) |
| Std Needle Dead Volume | 1.13 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 1705 |
Documents
Specifications
- Autoclavable No
- Barrel inner diameter 0.041 inches (1.03 mm)
- Barrel outer diameter 0.305 inches (7.75 mm)
- Fluid path SST, Borosilicate glass, PTFE
- Gas sterilizable Yes
- Gauge 22s gauge
- Maximum operating temperature 50°C / 122°F
- Minimum operating temperature 10°C / 50°F
- Needle Cemented Needle
- Needle inner diameter 0.0059 inches (0.15 mm)
- Needle length 2 inch (51 mm)
- Needle outer diameter 0.0283 inches (0.72 mm)
- Plunger style Standard Plunger
- Point style 2: Curved, Beveled
- Pressure 1000 psig (68.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 1.13 µL
- Sub category Gastight Syringes
- Syringe model number 1705
- Syringe series 1700
- Syringe type Gastight
- Termination Cemented Needle (N)
- Volume 50 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
