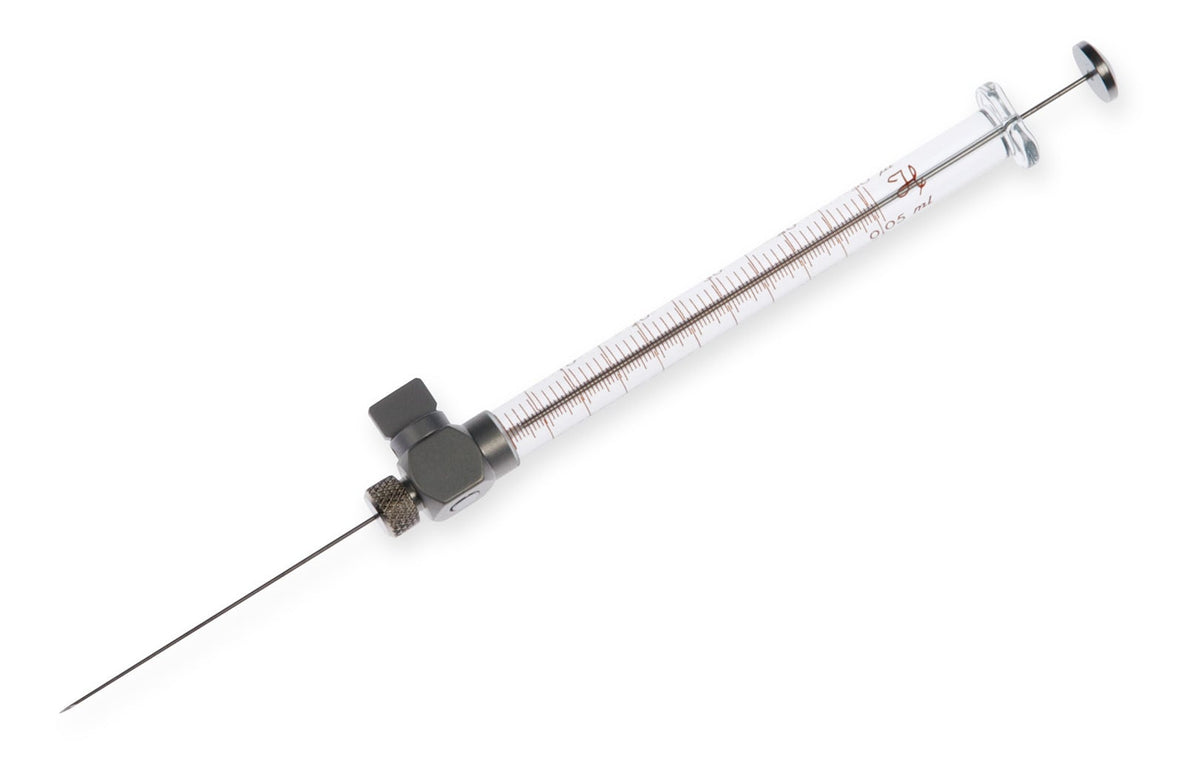

50 µL, Gastight Sample Lock Syringe, Large Removable Needle (RN)
Vendor: Hamilton Company
SKU: 80956
In stock
Hamilton’s 1700 series, Gastight #1705 Sample Lock (SL) syringe is designed for convenient sample collection and transport. Its unique twist valve mechanism simplifies operation. These syringes are suitable for dispensing both liquids and gases, utilizing a polymer plunger tip to ensure a leak-free seal. The 1700 series offers a broad spectrum of volume capacities, terminations, needle options, and plunger styles, providing exceptional versatility for various applications. Manufactured with high-quality, chemically resistant materials, Hamilton syringes are known for their ± 1% accuracy and robust durability.
Specifications
| Volume | 50 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1700 |
| Termination | Sample Lock (SL) |
| Needle | Large RN |
| Gauge | 22s gauge |
| Point Style | 2: Curved, Beveled |
| Needle Length | 2 inch (51 mm) |
| Plunger Style | Standard Plunger |
| Fluid Path | SST, Borosilicate glass, PTFE |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 1000 psig (68.9 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.041 inches (1.03 mm) |
| Barrel Outer Diameter | 0.305 inches (7.75 mm) |
| Needle Inner Diameter | 0.0059 inches (0.15 mm) |
| Needle Outer Diameter | 0.0283 inches (0.72 mm) |
| Std Needle Dead Volume | 1.13 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 1705 |
Documents
Specifications
- Autoclavable No
- Barrel inner diameter 0.041 inches (1.03 mm)
- Barrel outer diameter 0.305 inches (7.75 mm)
- Fluid path SST, Borosilicate glass, PTFE
- Gas sterilizable Yes
- Gauge 22s gauge
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle Large RN
- Needle inner diameter 0.0059 inches (0.15 mm)
- Needle length 2 inch (51 mm)
- Needle outer diameter 0.0283 inches (0.72 mm)
- Plunger style Standard Plunger
- Point style 2: Curved, Beveled
- Pressure 1000 psig (68.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 1.13 µL
- Sub category Gastight Syringes
- Syringe model number 1705
- Syringe series 1700
- Syringe type Gastight
- Termination Sample Lock (SL)
- Volume 50 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Instructions url Click here
- Source url Click here
- Specification url Click here
