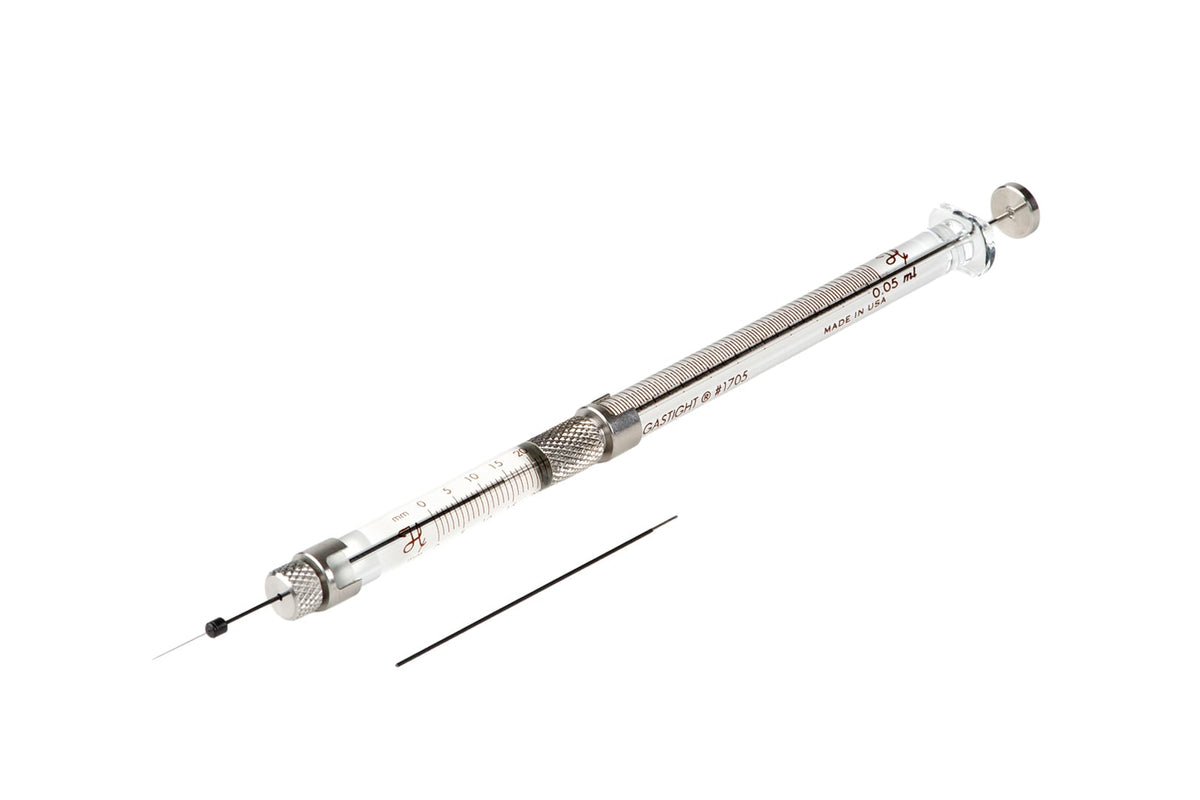

50 µL, Gastight Neuros Syringe, Small RN
Vendor: Hamilton Company
SKU: 65460-15
In stock
Hamilton's 1700 series, Gastight #1705 Small RN Neuros Syringes offers syringe technology that provides unprecedented functionality for controlled animal injections. Developed specifically for neuroscience applications, this animal injection syringe enables the delivery of microvolumes to an exact location while minimizing injection site damage. Neuros syringes come with two types of protective needle sleeves. The sleeve with a blind stop is perfect for cannulated applications and ensures targeted administration with an adjustable penetration depth. The version without a blind stop works best with stereotaxic holders. Both models provide an adjustable needle exposure of 0 to 20 mm.
Specifications
| Volume | 50 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1700 |
| Termination | Neuros |
| Needle | Small RN |
| Gauge | 33 gauge |
| Point Style | 3: Blunt |
| Needle Length | 0 - 20 mm adjustable |
| Plunger Style | Standard Plunger |
| Fluid Path | SST, Borosilicate glass, PTFE |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 1000 psig (68.9 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.041 inches (1.03 mm) |
| Barrel Outer Diameter | 0.305 inches (7.75 mm) |
| Needle Inner Diameter | 0.004 inches (0.108 mm) |
| Needle Outer Diameter | 0.008 inches (0.210 mm) |
| Std Needle Dead Volume | 0.79 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 1705 |
Documents
Specifications
- Autoclavable Yes
- Barrel inner diameter 0.041 inches (1.03 mm)
- Barrel outer diameter 0.305 inches (7.75 mm)
- Fluid path SST, Borosilicate glass, PTFE
- Gas sterilizable Yes
- Gauge 33 gauge
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle Small RN
- Needle inner diameter 0.004 inches (0.108 mm)
- Needle length 0 - 20 mm adjustable
- Needle outer diameter 0.008 inches (0.210 mm)
- Plunger style Standard Plunger
- Point style 3: Blunt
- Pressure 1000 psig (68.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 0.79 µL
- Sub category Gastight Syringes
- Syringe model number 1705
- Syringe series 1700
- Syringe type Gastight
- Termination Neuros
- Volume 50 µL
links and documants
- Datasheet url Click here
- Instructions url Click here
- Source url Click here
- Specification url Click here
