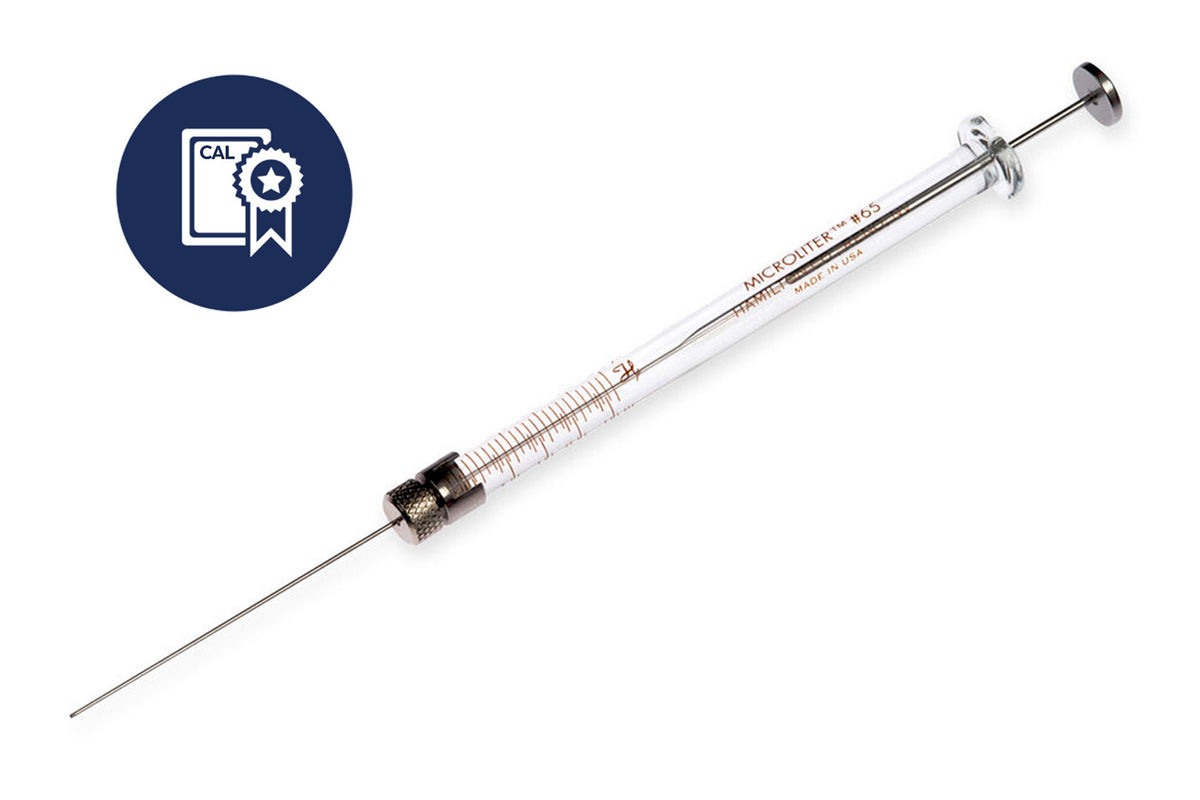

5 µL, Microliter Syringe, Removable Needle (RN), Calibrated Syringe
Vendor: Hamilton Company
SKU: CAL87943
In stock
Hamilton 600 Series Microliter Syringes are engineered for precise liquid handling in microliter volumes. With a precision-fit, stainless-steel plunger and finely crafted glass barrel, these syringes provide smooth, leak-free operation for applications that demand absolute control. As a half stroke (27 mm) version of our original 700 series syringes, the 600 series syringes offer convenient one-handed operation.
| Model Number | Volume | Barrel Inner Diameter | Stroke Length | Operating Pressure | Operating Temperature |
|---|---|---|---|---|---|
| 62 | 2.5 µL | 0.34 mm | 27 mm | 14 MPa | 10 - 115 °C1 |
| 65 | 5 µL | 0.48 mm | 27 mm | 14 MPa | 10 - 115 °C1 |
1 If the syringe termination is a cemented needle or luer tip cemented needle then the maximum temperature is 50 °C.
Specifications
| Volume | 5 µL |
|---|---|
| Syringe Type | Microliter |
| Syringe Series | 600 |
| Termination | Removable Needle (RN) |
| Needle | Small RN |
| Gauge | 22s gauge |
| Point Style | 3: Blunt |
| Needle Length | 2 inch (51 mm) |
| Plunger Style | Standard Plunger |
| Fluid Path | SST, borosilicate glass |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 2000 psig (137.9 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.0189 inches (0.480 mm) |
| Barrel Outer Diameter | 0.260 inches (6.60 mm) |
| Needle Inner Diameter | 0.005 inches (0.13 mm) |
| Needle Outer Diameter | 0.028 inches (0.711 mm) |
| Std Needle Dead Volume | 1.13 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 65 |
Documents
Specifications
- Autoclavable Yes
- Barrel inner diameter 0.0189 inches (0.480 mm)
- Barrel outer diameter 0.260 inches (6.60 mm)
- Fluid path SST, borosilicate glass
- Gas sterilizable Yes
- Gauge 22s gauge
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle Small RN
- Needle inner diameter 0.005 inches (0.13 mm)
- Needle length 2 inch (51 mm)
- Needle outer diameter 0.028 inches (0.711 mm)
- Plunger style Standard Plunger
- Point style 3: Blunt
- Pressure 2000 psig (137.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 1.13 µL
- Sub category Microliter Syringes
- Syringe model number 65
- Syringe series 600
- Syringe type Microliter
- Termination Removable Needle (RN)
- Volume 5 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
