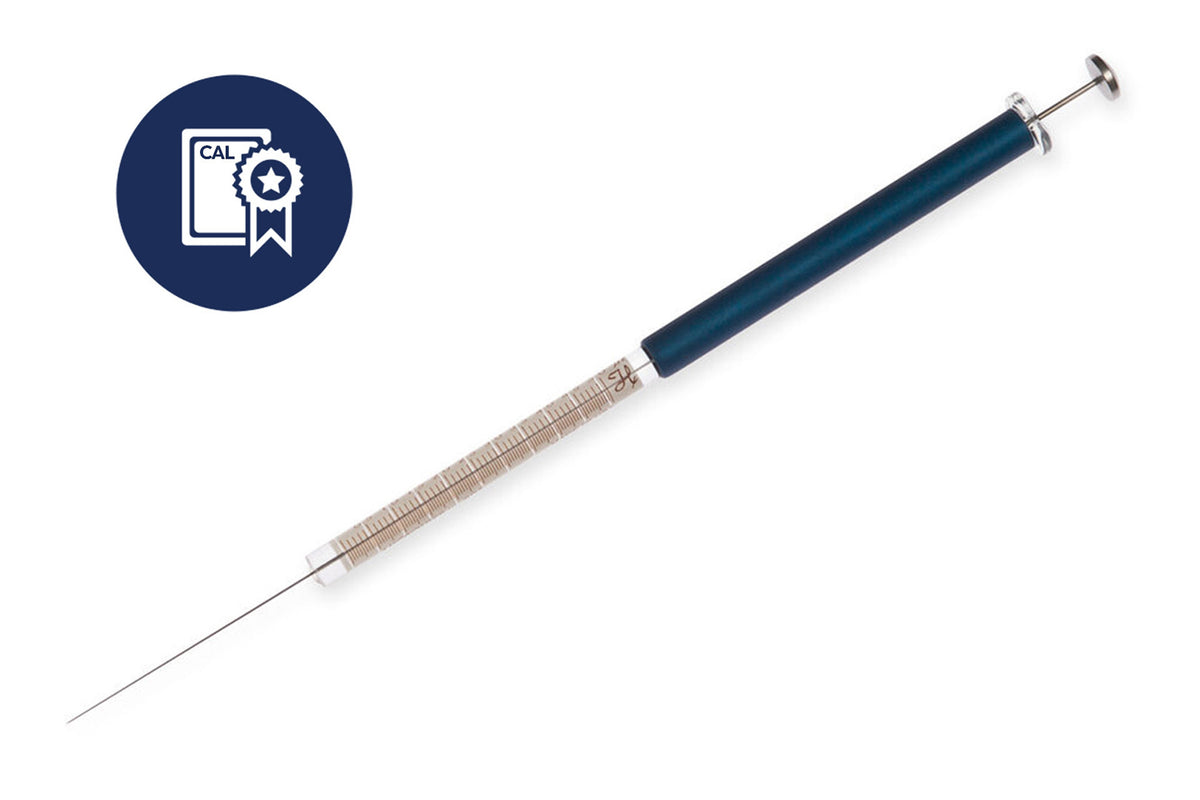

5 µL, Microliter Syringe, Cemented Needle (N), Calibrated Syringe
Vendor: Hamilton Company
SKU: CAL87920
In stock
For added protection during HPLC and everyday lab applications, trust in the 900 Series Microliter Syringe from Hamilton. This cost-effective alternative to our 800 Series Syringe has an integrated, non-removable Syringe Holder with a reinforced plunger that will not accidentally bend during injections. Its protective sleeve prevents heat transfer to sensitive samples.
These reinforced lab syringes handle 0.5 μL to 10 μL liquid volumes for HPLC and other general laboratory uses.
| Model Number | Volume | Barrel Inner Diameter | Stroke Length | Operating Pressure | Operating Temperature |
|---|---|---|---|---|---|
| 95 | 5 µL | 0.34 mm | 54 mm | 14 MPa | 10 - 115 °C1 |
| 901 | 10 µL | 0.49 mm | 54 mm | 14 MPa | 10 - 115 °C1 |
1 If the syringe termination is a cemented needle or luer tip cemented needle then the maximum temperature is 50 °C.
Specifications
| Volume | 5 µL |
|---|---|
| Syringe Type | Microliter |
| Syringe Series | 900 |
| Termination | Cemented Needle (N) |
| Needle | Cemented Needle |
| Gauge | 26s gauge |
| Point Style | 2: Curved, Beveled |
| Needle Length | 2 inch (51 mm) |
| Plunger Style | Reinforced Plunger |
| Fluid Path | SST, borosilicate glass |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 2000 psig (137.9 bar) |
| Maximum Operating Temperature | 50°C / 122°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.014 inches (0.343 mm) |
| Barrel Outer Diameter | 0.260 inches (6.60 mm) |
| Needle Inner Diameter | 0.005 inches (0.13 mm) |
| Needle Outer Diameter | 0.019 inches (0.474 mm) |
| Std Needle Dead Volume | 0.64 µL |
| Sales Quantity | 1 syringe per pack |
Documents
Specifications
- Autoclavable No
- Barrel inner diameter 0.014 inches (0.343 mm)
- Barrel outer diameter 0.260 inches (6.60 mm)
- Fluid path SST, borosilicate glass
- Gas sterilizable Yes
- Gauge 26s gauge
- Maximum operating temperature 50°C / 122°F
- Minimum operating temperature 10°C / 50°F
- Needle Cemented Needle
- Needle inner diameter 0.005 inches (0.13 mm)
- Needle length 2 inch (51 mm)
- Needle outer diameter 0.019 inches (0.474 mm)
- Plunger style Reinforced Plunger
- Point style 2: Curved, Beveled
- Pressure 2000 psig (137.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 0.64 µL
- Sub category Microliter Syringes
- Syringe series 900
- Syringe type Microliter
- Termination Cemented Needle (N)
- Volume 5 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
