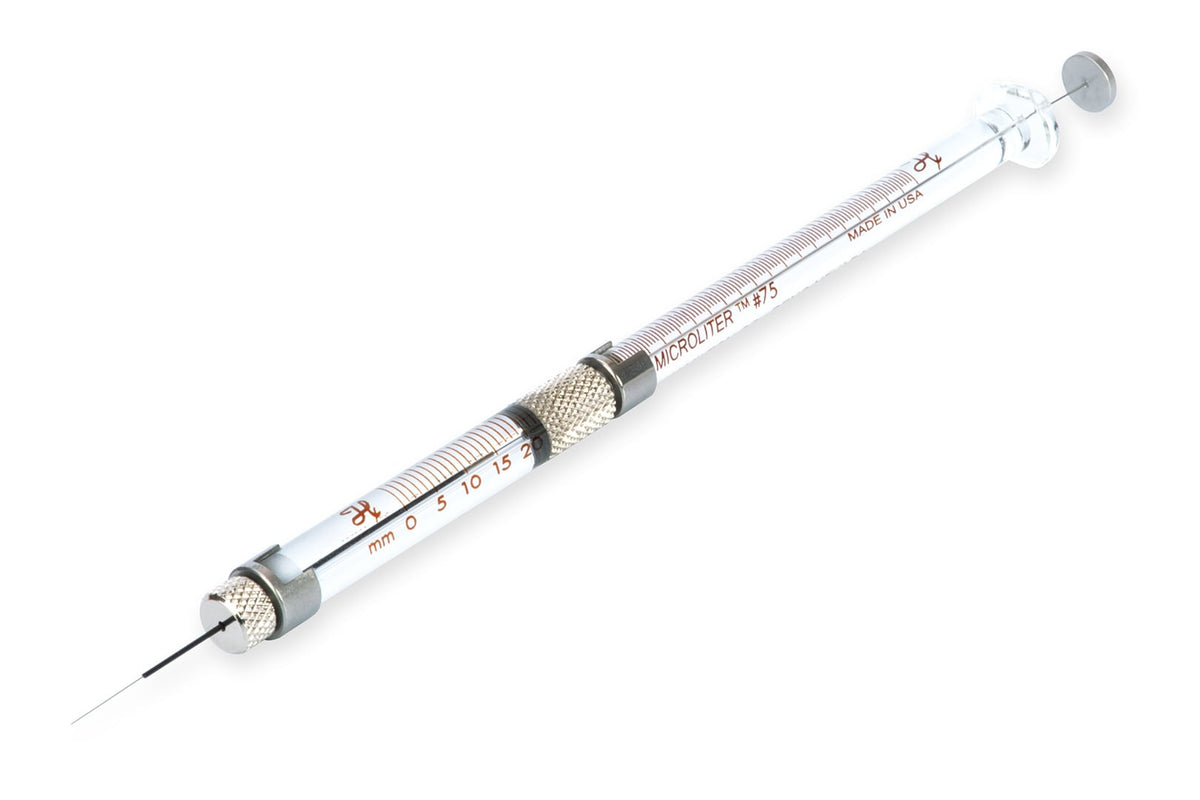

5 µL, Microliter Neuros Syringe, Small RN
Vendor: Hamilton Company
SKU: 65460-03
In stock
Hamilton's 700 series, Microliter #75 Small RN Neuros Syringes offers a syringe technology that provides unprecedented functionality for controlled animal injections. Developed specifically for neuroscience applications, this animal injection syringe enables the delivery of microvolumes to an exact location while minimizing injection site damage. Neuros syringes come with two types of protective needle sleeves. The sleeve with a blind stop is perfect for cannulated applications and ensures targeted administration with an adjustable penetration depth. The version without a blind stop works best with stereotaxic holders. Both models provide an adjustable needle exposure of 0 to 20 mm.
Common applications Veterinary Sciences
Specifications
| Volume | 5 µL |
|---|---|
| Syringe Type | Microliter |
| Syringe Series | 700 |
| Termination | Neuros |
| Needle | Small RN |
| Gauge | 33 gauge |
| Point Style | 4: Beveled |
| Needle Length | 0 - 20 mm adjustable |
| Plunger Style | Standard Plunger |
| Fluid Path | SST, borosilicate glass |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 2000 psig (137.9 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.014 inches (0.343 mm) |
| Barrel Outer Diameter | 0.260 inches (6.60 mm) |
| Needle Inner Diameter | 0.004 inches (0.108 mm) |
| Needle Outer Diameter | 0.008 inches (0.210 mm) |
| Std Needle Dead Volume | 0.79 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 75 |
Documents
Specifications
- Autoclavable Yes
- Barrel inner diameter 0.014 inches (0.343 mm)
- Barrel outer diameter 0.260 inches (6.60 mm)
- Fluid path SST, borosilicate glass
- Gas sterilizable Yes
- Gauge 33 gauge
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle Small RN
- Needle inner diameter 0.004 inches (0.108 mm)
- Needle length 0 - 20 mm adjustable
- Needle outer diameter 0.008 inches (0.210 mm)
- Plunger style Standard Plunger
- Point style 4: Beveled
- Pressure 2000 psig (137.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 0.79 µL
- Sub category Microliter Syringes
- Syringe model number 75
- Syringe series 700
- Syringe type Microliter
- Termination Neuros
- Volume 5 µL
links and documants
- Datasheet url Click here
- Instructions url Click here
- Source url Click here
- Specification url Click here
