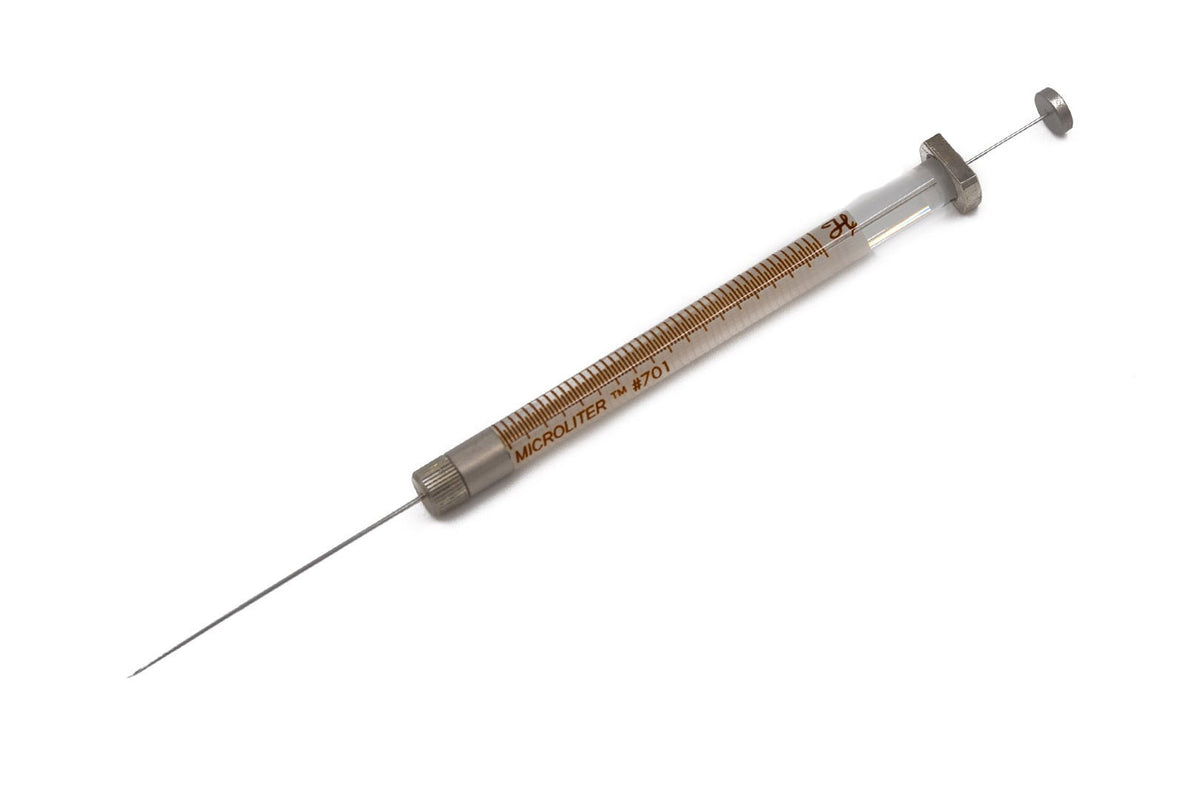

5 µL, Microliter Autosampler Syringe
Vendor: Hamilton Company
SKU: 202630
In stock
Hamilton's 700 series, Microliter #75 syringe with a Removable Needle (RN) termination and a metal flange is designed for use in autosamplers. Commonly used with autosamplers such as Shimadzu AOC 14, AOC-17, and AOC-20. Hamilton syringes ensure an accuracy of ± 1%, superior durability, and are manufactured with the highest quality, chemically resistant materials.
The 700 series syringes offer a velvet feel, featuring a stainless-steel plunger crafted to fit the glass barrel with a tolerance of less than three-thousandths of a millimeter. Hamilton's rigorous quality control guarantees the highest standards of accuracy and precision.
Compatible Autosamplers:
Shimadzu AOC-14 AOC-17 and AOC-20 Syringes
Common applications Veterinary Sciences
Specifications
| Volume | 5 µL |
|---|---|
| Syringe Type | Microliter |
| Syringe Series | 700 |
| Termination | Removable Needle (RN) |
| Needle | Small RN |
| Gauge | 22s gauge |
| Point Style | 2: Curved, Beveled |
| Needle Length | 1.69 inches (42.9 mm) |
| Plunger Style | Standard Plunger |
| Fluid Path | SST, borosilicate glass |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 2000 psig (137.9 bar) |
| Maximum Operating Temperature | 50°C / 122°F |
| Minimum Operating Temperature | 20°C / 68°F |
| Needle Inner Diameter | 0.005 inches (0.13 mm) |
| Needle Outer Diameter | 0.028 inches (0.711 mm) |
| Std Needle Dead Volume | 0.95 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 75 |
Documents
Specifications
- Autoclavable No
- Fluid path SST, borosilicate glass
- Gas sterilizable Yes
- Gauge 22s gauge
- Maximum operating temperature 50°C / 122°F
- Minimum operating temperature 20°C / 68°F
- Needle Small RN
- Needle inner diameter 0.005 inches (0.13 mm)
- Needle length 1.69 inches (42.9 mm)
- Needle outer diameter 0.028 inches (0.711 mm)
- Plunger style Standard Plunger
- Point style 2: Curved, Beveled
- Pressure 2000 psig (137.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 0.95 µL
- Sub category Microliter Syringes
- Syringe model number 75
- Syringe series 700
- Syringe type Microliter
- Termination Removable Needle (RN)
- Volume 5 µL
links and documants
- Instructions url Click here
- Source url Click here
- Specification url Click here
