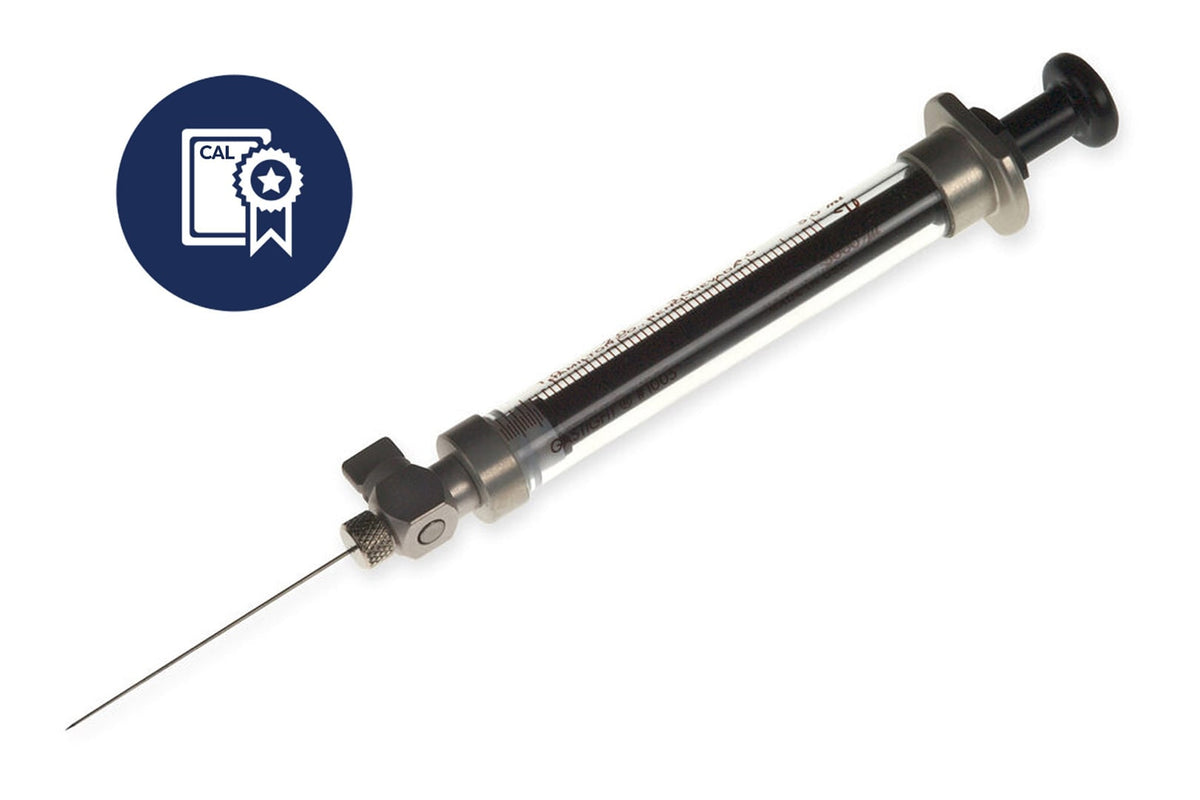

5 mL Gastight Syringe Model 1005 SL, Gastight Syringe, Sample Lock (SL), Calibrated Syringe CAL81556 - Lab Syringes

2.5 mL, Gastight Syringe, PEEK ChemSeal (C) 10103663 - Lab Syringes - Hamilton Company

5 mL Gastight Syringe Model 1005 SL, Gastight Syringe, Sample Lock (SL), Calibrated Syringe

Name: 5 mL Gastight Syringe Model 1005 SL, Gastight Syringe, Sample Lock (SL), Calibrated Syringe
Brand: Hamilton Company
SKU: CAL81556
Price: 2338.00 ILS
Availability: InStock

Vendor: Hamilton Company

SKU: CAL81556

2,338.00 NIS

Stock on Request

In stock

Hamilton 1000 series syringes dispense liquid and gas volumes in a multitude of applications like gas chromatography (GC), liquid chromatography (LC), analytical chemistry, and more. Designed for consistently leak-free performance, every Hamilton 1000 gastight syringe features a PTFE plunger tip to prevent sample loss. Additionally, a precision-machined glass syringe barrel makes the Hamilton 1000 gastight syringe an ideal choice when handling volatile gases and liquids with precise accuracy.

Choose from multiple sizes and options to match your scientific or analytical workflow and personal preference.

Model Number	Volume	Barrel Inner Diameter	Stroke Length	Operating Pressure	Operating Temperature
1001	1 mL	4.61 mm	60 mm	1 MPa	10 - 115 °C¹
1002	2.5 mL	7.29 mm	60 mm	1 MPa	10 - 115 °C¹
1005	5 mL	10.30 mm	60 mm	1 MPa	10 - 115 °C¹
1010	10 mL	14.57 mm	60 mm	1 MPa	10 - 115 °C¹
1025	25 mL	23.03 mm	60 mm	0.7 MPa	10 - 80 °C¹
1050	50 mL	32.54 mm	60 mm	0.7 MPa	10 - 80 °C¹
1100	100 mL	32.54 mm	120 mm	0.7 MPa	10 - 80 °C¹

¹ If the syringe termination is a cemented needle or luer tip cemented needle then the maximum temperature is 50 °C.

Specifications

Volume	5 mL
Syringe Type	Gastight
Syringe Series	1000
Termination	Sample Lock (SL)
Needle	Large RN
Gauge	22 gauge
Point Style	2: Curved, Beveled
Needle Length	2 inch (51 mm)
Plunger Style	Standard Plunger
Fluid Path	SST, Borosilicate glass, PTFE
Autoclavable	No
Gas Sterilizable	Yes
Pressure	200 psig (13.8 bar)
Maximum Operating Temperature	80°C / 176°F
Minimum Operating Temperature	10°C / 50°F
Barrel Inner Diameter	0.406 inches (10.3 mm)
Barrel Outer Diameter	0.530 inches (13.5 mm)
Needle Inner Diameter	0.0161 inches (0.41 mm)
Needle Outer Diameter	0.0283 inches (0.72 mm)
Std Needle Dead Volume	6.81 µL
Sales Quantity	1 syringe per pack
Syringe Model Number	1005

Documents

Specifications

Autoclavable No
Barrel inner diameter 0.406 inches (10.3 mm)
Barrel outer diameter 0.530 inches (13.5 mm)
Fluid path SST, Borosilicate glass, PTFE
Gas sterilizable Yes
Gauge 22 gauge
Maximum operating temperature 80°C / 176°F
Minimum operating temperature 10°C / 50°F
Needle Large RN
Needle inner diameter 0.0161 inches (0.41 mm)
Needle length 2 inch (51 mm)
Needle outer diameter 0.0283 inches (0.72 mm)
Plunger style Standard Plunger
Point style 2: Curved, Beveled
Pressure 200 psig (13.8 bar)
Sales quantity 1 syringe per pack
Std needle dead volume 6.81 µL
Sub category Gastight Syringes
Syringe model number 1005
Syringe series 1000
Syringe type Gastight
Termination Sample Lock (SL)
Volume 5 mL
