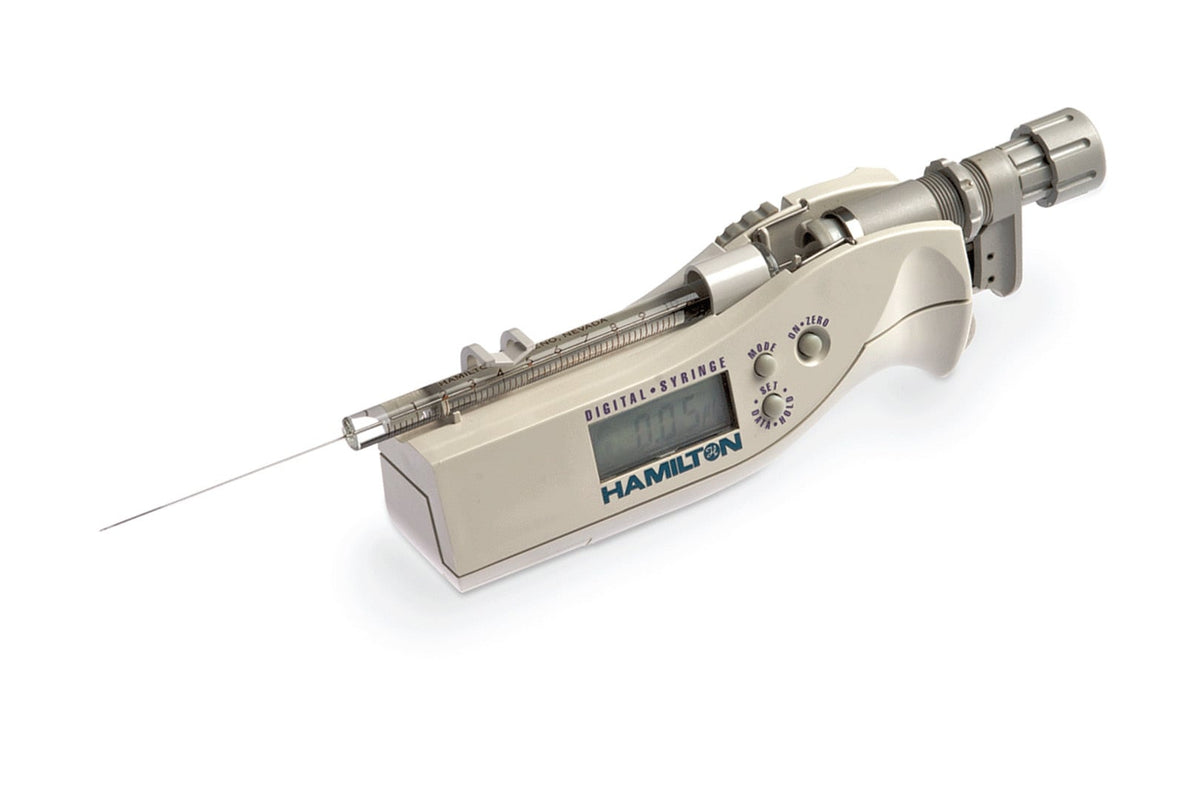

250 µL, Gastight Syringe, Luer Tip Cemented Needle (LTN), Digital Syringe
Vendor: Hamilton Company
SKU: DS81100
In stock
As the gastight version of our renowned 700 series syringes, Hamilton 1700 Series Gastight Syringes deliver high-precision liquid and gas handling in analytical and laboratory applications. Constructed with a high-precision glass barrel and a gastight PTFE plunger tip, the 1700 series syringes are ideal for applications requiring high accuracy and repeatability.
Select from multiple volumes, syringe types, terminations, and needles for diverse application compatibility.
| Model Number | Volume | Barrel Inner Diameter | Stroke Length | Operating Pressure | Operating Temperature |
|---|---|---|---|---|---|
| 1701 | 10 µL | 0.46 mm | 60 mm | 7 MPa | 10 - 115 °C1 |
| 1702 | 25 µL | 0.73 mm | 60 mm | 7 MPa | 10 - 115 °C1 |
| 1705 | 50 µL | 1.03 mm | 60 mm | 7 MPa | 10 - 115 °C1 |
| 1710 | 100 µL | 1.40 mm | 60 mm | 7 MPa | 10 - 115 °C1 |
| 1725 | 250 µL | 2.30 mm | 60 mm | 3 MPa | 10 - 115 °C1 |
| 1750 | 500 µL | 3.26 mm | 60 mm | 3 MPa | 10 - 115 °C1 |
1 If the syringe termination is a cemented needle or luer tip cemented needle, then the maximum temperature is 50 °C.
Specifications
| Volume | 250 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1700 |
| Termination | Luer Tip Cemented Needle (LTN) |
| Needle | Cemented Needle |
| Gauge | 22s gauge |
| Point Style | 2: Curved, Beveled |
| Needle Length | 2 inch (51 mm) |
| Plunger Style | Standard Plunger |
| Fluid Path | SST, Borosilicate glass, PTFE |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 500 psig (34.5 bar) |
| Maximum Operating Temperature | 50°C / 122°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.091 inches (2.30 mm) |
| Barrel Outer Diameter | 0.305 inches (7.75 mm) |
| Needle Inner Diameter | 0.0059 inches (0.15 mm) |
| Needle Outer Diameter | 0.0283 inches (0.72 mm) |
| Std Needle Dead Volume | 1.13 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 1725 |
Documents
Specifications
- Autoclavable No
- Barrel inner diameter 0.091 inches (2.30 mm)
- Barrel outer diameter 0.305 inches (7.75 mm)
- Fluid path SST, Borosilicate glass, PTFE
- Gas sterilizable Yes
- Gauge 22s gauge
- Maximum operating temperature 50°C / 122°F
- Minimum operating temperature 10°C / 50°F
- Needle Cemented Needle
- Needle inner diameter 0.0059 inches (0.15 mm)
- Needle length 2 inch (51 mm)
- Needle outer diameter 0.0283 inches (0.72 mm)
- Plunger style Standard Plunger
- Point style 2: Curved, Beveled
- Pressure 500 psig (34.5 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 1.13 µL
- Sub category Gastight Syringes
- Syringe model number 1725
- Syringe series 1700
- Syringe type Gastight
- Termination Luer Tip Cemented Needle (LTN)
- Volume 250 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
