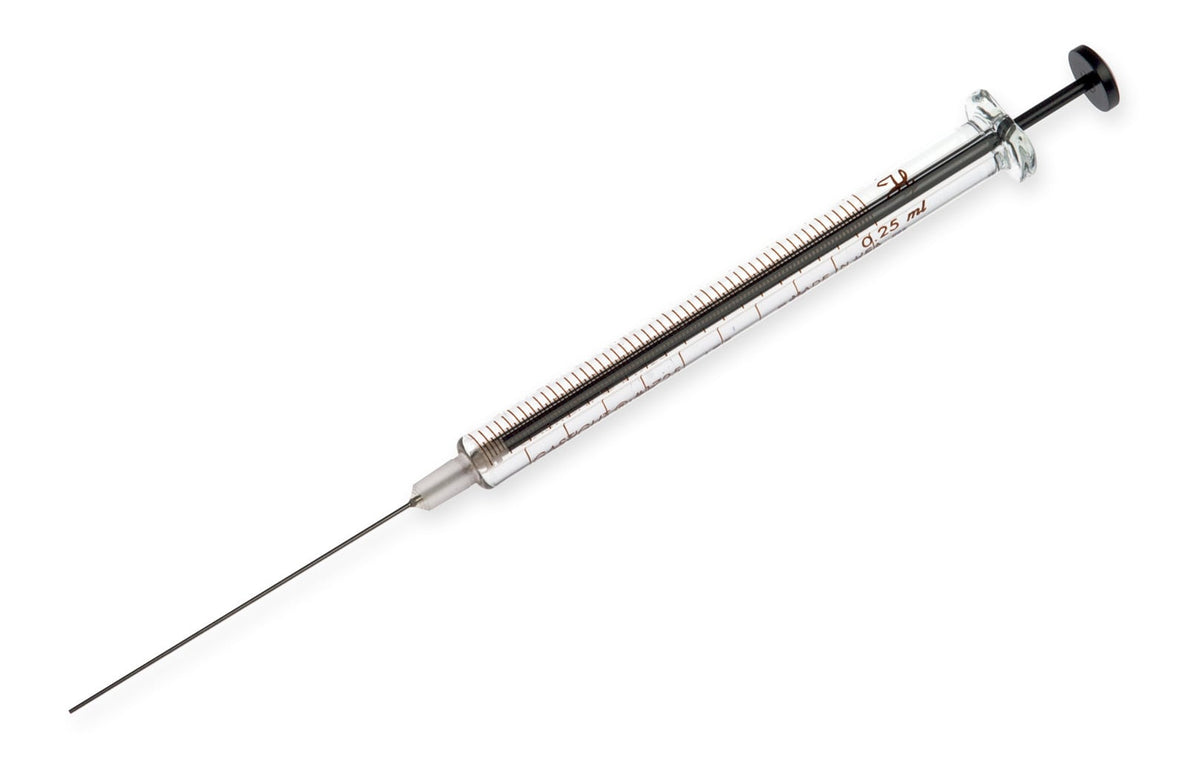

250 µL, Gastight Syringe, Luer Tip Cemented Needle (LTN)
Vendor: Hamilton Company
SKU: 81175
In stock
Hamilton’s 1700 series, Gastight #1725 Luer Tip Cemented Needle (LTN) syringe is designed for manual sample injections and use in autosamplers. Commonly used for sample injections with HPLC and GC valves such as Rheodyne Valco Beckman and SSI Valves.
The 1700 series syringes are the Gastight version of the Hamilton 700 series syringes. This series of syringes are ideal for dispensing both liquids and gases. They have a polymer plunger tip that creates a leak-free seal. With a wide range of volume capabilities, terminations, needle options and plunger styles, this syringe series provides exceptional flexibility and versatility.
Specifications
| Volume | 250 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1700 |
| Termination | Luer Tip Cemented Needle (LTN) |
| Needle | Cemented Needle |
| Gauge | 22s gauge |
| Point Style | 3: Blunt |
| Needle Length | 2 inch (51 mm) |
| Fluid Path | SST, Borosilicate glass, PTFE |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 500 psig (34.5 bar) |
| Maximum Operating Temperature | 50°C / 122°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.091 inches (2.30 mm) |
| Barrel Outer Diameter | 0.305 inches (7.75 mm) |
| Needle Inner Diameter | 0.0059 inches (0.15 mm) |
| Needle Outer Diameter | 0.0283 inches (0.72 mm) |
| Std Needle Dead Volume | 1.13 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 1725 |
Documents
Specifications
- Autoclavable No
- Barrel inner diameter 0.091 inches (2.30 mm)
- Barrel outer diameter 0.305 inches (7.75 mm)
- Fluid path SST, Borosilicate glass, PTFE
- Gas sterilizable Yes
- Gauge 22s gauge
- Maximum operating temperature 50°C / 122°F
- Minimum operating temperature 10°C / 50°F
- Needle Cemented Needle
- Needle inner diameter 0.0059 inches (0.15 mm)
- Needle length 2 inch (51 mm)
- Needle outer diameter 0.0283 inches (0.72 mm)
- Point style 3: Blunt
- Pressure 500 psig (34.5 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 1.13 µL
- Sub category Gastight Syringes
- Syringe model number 1725
- Syringe series 1700
- Syringe type Gastight
- Termination Luer Tip Cemented Needle (LTN)
- Volume 250 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
