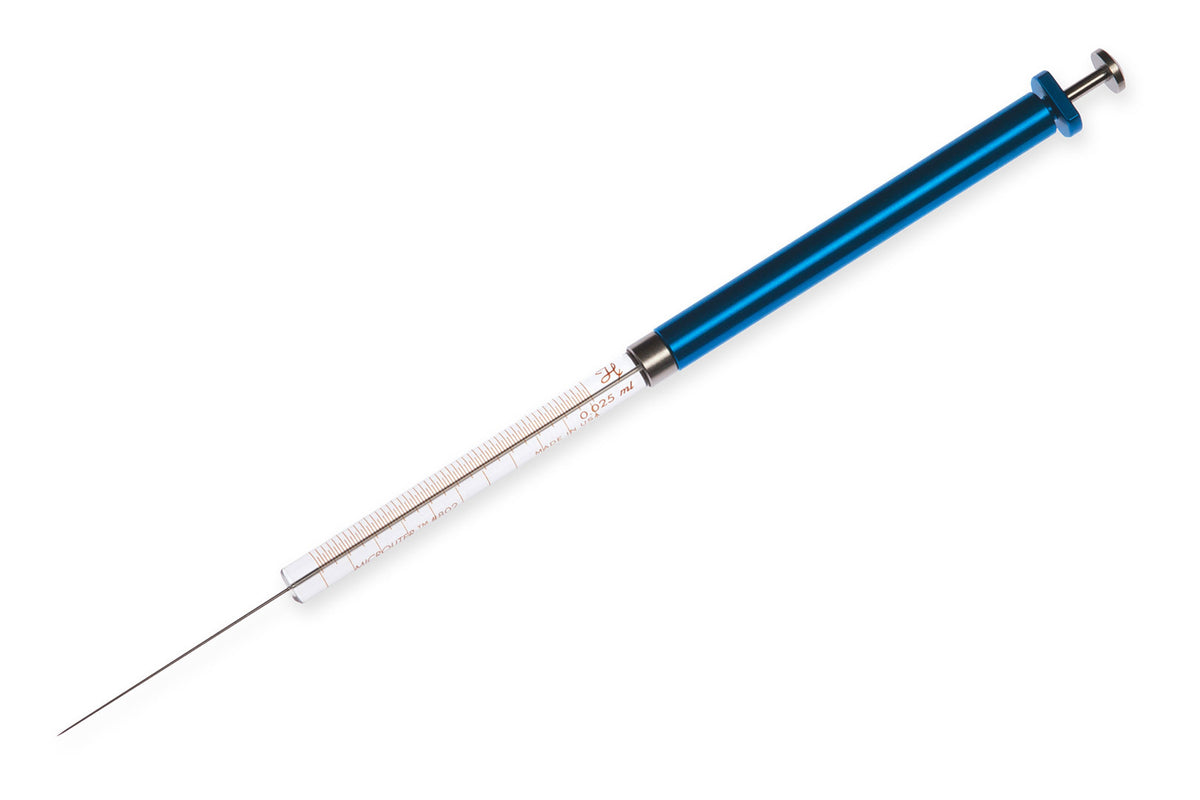

25 µL, Microliter Syringe, Cemented Needle (N)
Vendor: Hamilton Company
SKU: 84854
In stock
Hamilton's 800 series, Microliter # 802 Cemented Needle (N) Syringe is a reinforced plunger version of the 700 series syringe. This syringe also features a blue Syringe Holder attached to the flange. This unique component safeguards against any heat transfer from the barrel, ensuring accurate dispensing. The reinforced plunger provides crucial support to delicate small-volume plungers, preventing bending and maintaining injection integrity.
Specifications
| Volume | 25 µL |
|---|---|
| Syringe Type | Microliter |
| Syringe Series | 800 |
| Termination | Cemented Needle (N) |
| Needle | Cemented Needle |
| Gauge | 22s gauge |
| Point Style | 2: Curved, Beveled |
| Needle Length | 2 inch (51 mm) |
| Plunger Style | Reinforced Plunger |
| Fluid Path | SST, borosilicate glass |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 2000 psig (137.9 bar) |
| Maximum Operating Temperature | 50°C / 122°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.029 inches (0.729 mm) |
| Barrel Outer Diameter | 0.305 inches (7.75 mm) |
| Needle Inner Diameter | 0.0059 inches (0.15 mm) |
| Needle Outer Diameter | 0.0283 inches (0.72 mm) |
| Std Needle Dead Volume | 1.13 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 802 |
Documents
Specifications
- Autoclavable No
- Barrel inner diameter 0.029 inches (0.729 mm)
- Barrel outer diameter 0.305 inches (7.75 mm)
- Fluid path SST, borosilicate glass
- Gas sterilizable Yes
- Gauge 22s gauge
- Maximum operating temperature 50°C / 122°F
- Minimum operating temperature 10°C / 50°F
- Needle Cemented Needle
- Needle inner diameter 0.0059 inches (0.15 mm)
- Needle length 2 inch (51 mm)
- Needle outer diameter 0.0283 inches (0.72 mm)
- Plunger style Reinforced Plunger
- Point style 2: Curved, Beveled
- Pressure 2000 psig (137.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 1.13 µL
- Sub category Microliter Syringes
- Syringe model number 802
- Syringe series 800
- Syringe type Microliter
- Termination Cemented Needle (N)
- Volume 25 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
