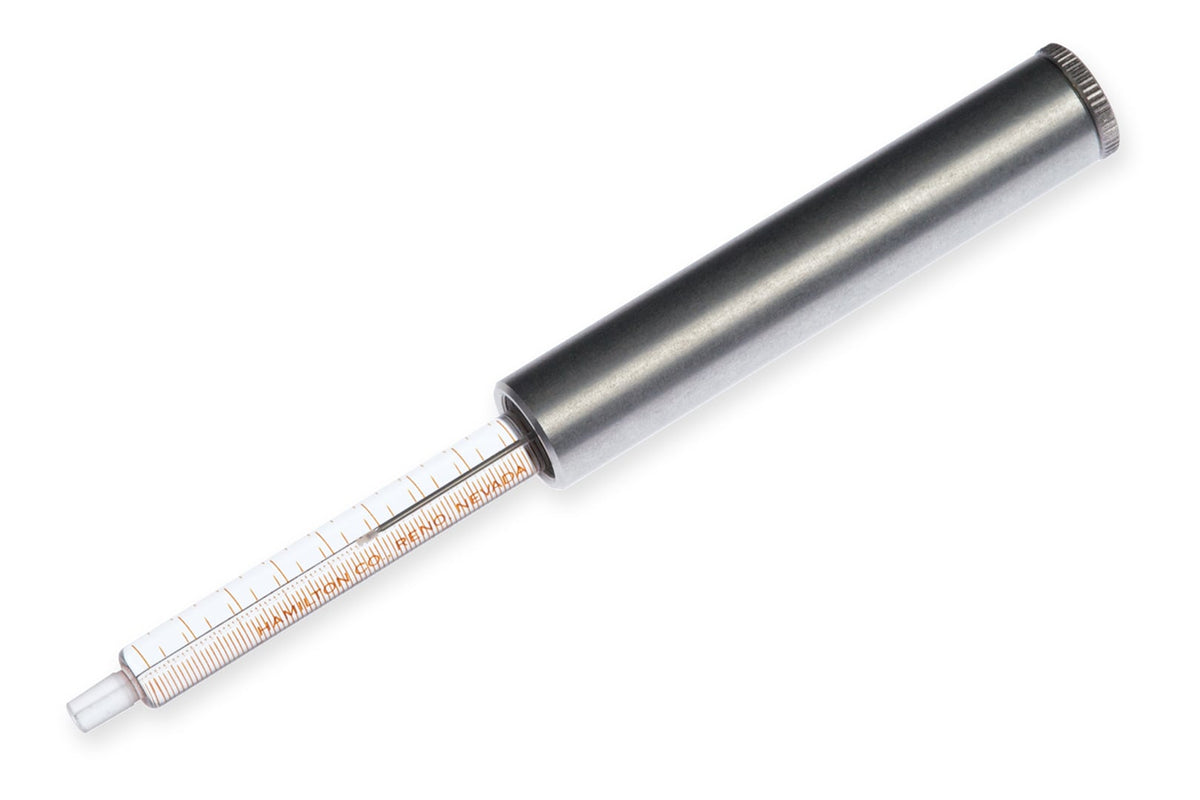

25 µL, Gastight Threaded Plunger Syringe, Luer Tip (LT)
Vendor: Hamilton Company
SKU: 80266
In stock
Hamilton's 1700 series, Gastight Instrument Model #1702 Luer Tip (LT) Threaded Plunger Syringe is designed for applications requiring extremely precise plunger movement or minute fluid manipulation. This syringe allows for very fine control over the volume dispensed, ranging from 0.33 to 37.79 µL per plunger revolution, depending on the syringe volume. A Luer tip (LT) termination, which allows easy connection to various needles and tubing.
Specifications
| Volume | 25 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1700 |
| Termination | Luer Tip (LT) |
| Needle | Kel-F Hub |
| Gauge | No Needle Included |
| Point Style | No Needle Included |
| Needle Length | No Needle Included |
| Plunger Style | Threaded Plunger |
| Fluid Path | Borosilicate glass, PTFE |
| Autoclavable | Yes to 115 °C |
| Gas Sterilizable | Yes |
| Pressure | 1000 psig (68.9 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.029 inches (0.729 mm) |
| Barrel Outer Diameter | 0.305 inches (7.75 mm) |
| Volume per rotation | 0.33 µL |
| Std Needle Dead Volume | N/A |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 1702 |
Documents
Specifications
- Autoclavable Yes to 115 °C
- Barrel inner diameter 0.029 inches (0.729 mm)
- Barrel outer diameter 0.305 inches (7.75 mm)
- Fluid path Borosilicate glass, PTFE
- Gas sterilizable Yes
- Gauge No Needle Included
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle Kel-F Hub
- Needle length No Needle Included
- Plunger style Threaded Plunger
- Point style No Needle Included
- Pressure 1000 psig (68.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume N/A
- Sub category Gastight Syringes
- Syringe model number 1702
- Syringe series 1700
- Syringe type Gastight
- Termination Luer Tip (LT)
- Volume 25 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
