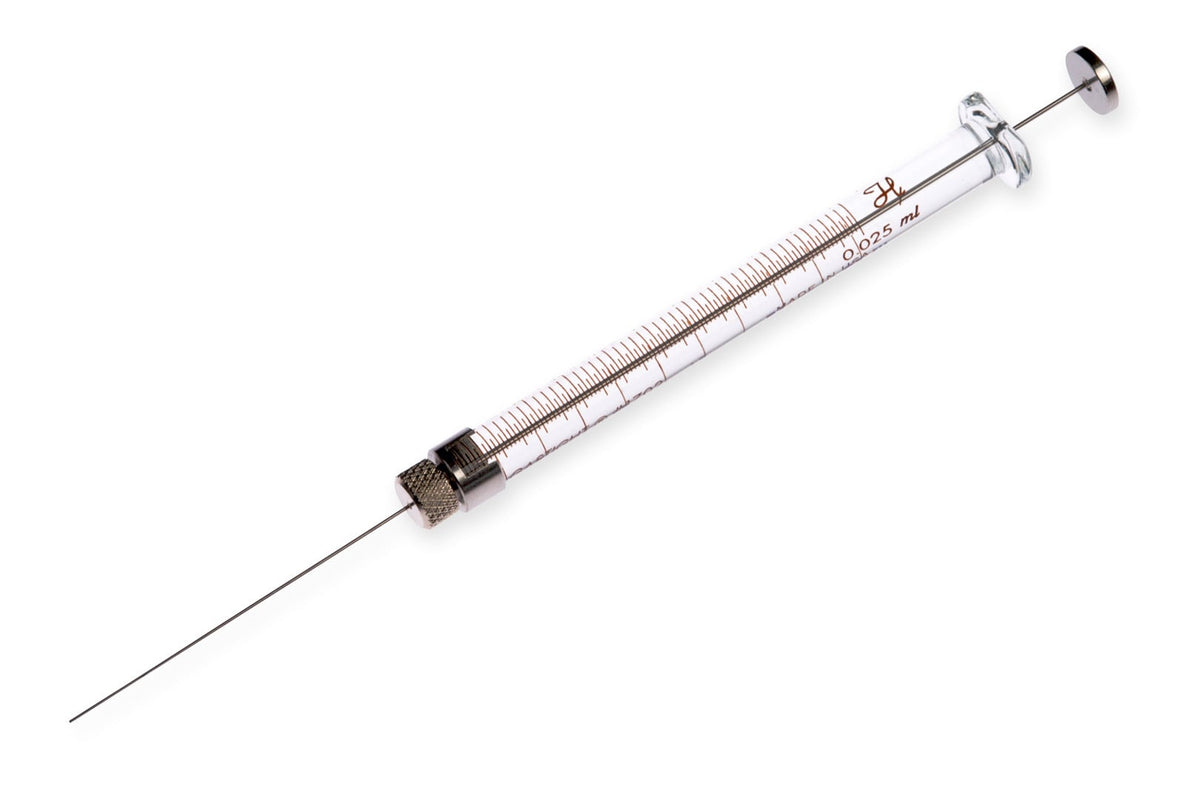

25 µL, Gastight Manual HPLC Syringe, Small Removable Needle (RN)
Vendor: Hamilton Company
SKU: 80238
In stock
Hamilton’s 1700 series, Gastight #1702 Removable Hub (RN) Needle syringe is commonly used with Waters U6K Manual HPLC injection valves.
Hamilton 1700 series syringes are Gastight versions of the 700 series, ideal for dispensing liquids and gases. Their polymer plunger tip ensures a leak-free seal. These syringes offer upto 1% accuracy, superior durability, and are made from high-quality, chemically resistant materials.
Specifications
| Volume | 25 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1700 |
| Termination | Removable Needle (RN) |
| Needle | Small RN |
| Gauge | 25s gauge |
| Point Style | 3: Blunt |
| Needle Length | 1.97 inches (50.0 mm) |
| Plunger Style | Standard Plunger |
| Fluid Path | SST, Borosilicate glass, PTFE |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 1000 psig (68.9 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.029 inches (0.729 mm) |
| Barrel Outer Diameter | 0.305 inches (7.75 mm) |
| Needle Inner Diameter | 0.007 inches (0.18 mm) |
| Needle Outer Diameter | 0.02 inches (0.508 mm) |
| Std Needle Dead Volume | 0.91 µL |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 1702 |
Documents
Specifications
- Autoclavable Yes
- Barrel inner diameter 0.029 inches (0.729 mm)
- Barrel outer diameter 0.305 inches (7.75 mm)
- Fluid path SST, Borosilicate glass, PTFE
- Gas sterilizable Yes
- Gauge 25s gauge
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle Small RN
- Needle inner diameter 0.007 inches (0.18 mm)
- Needle length 1.97 inches (50.0 mm)
- Needle outer diameter 0.02 inches (0.508 mm)
- Plunger style Standard Plunger
- Point style 3: Blunt
- Pressure 1000 psig (68.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume 0.91 µL
- Sub category Gastight Syringes
- Syringe model number 1702
- Syringe series 1700
- Syringe type Gastight
- Termination Removable Needle (RN)
- Volume 25 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
