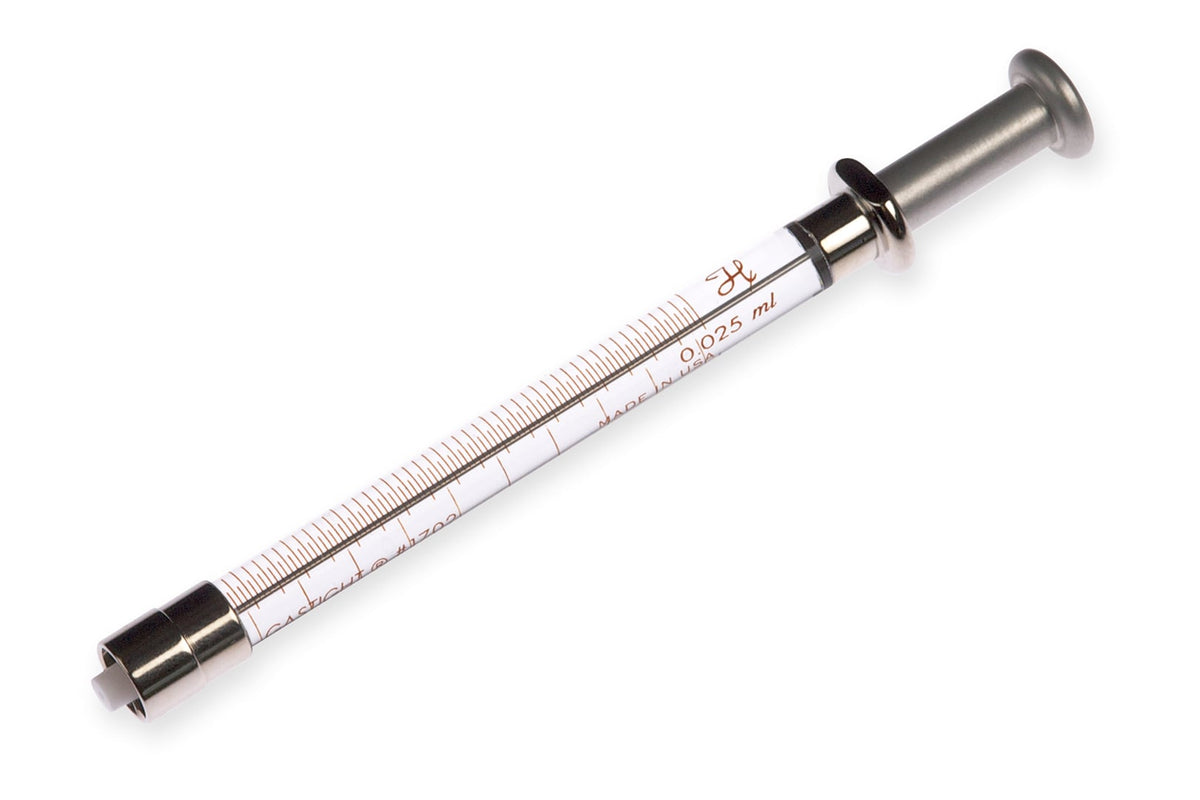

25 µL, Gastight Instrument Syringe, PTFE Luer Lock (TLL)
Vendor: Hamilton Company
SKU: 80223
In stock
Hamilton's 1700 series, Gastight Instrument # 1702 PTFE Luer Lock (TLL) Syringe with X-Style plunger is designed for liquid dispensing in a variety of syringe and infusion pumps. This syringe is compatible with standard female Luer Lock connections. The 1700 series syringes are the Gastight version of the original 700 series syringes. This series of syringes is ideal for dispensing volumes from 1 µL up to 500 µL. A variety of different terminations and needle options are available in this series.
Specifications
| Volume | 25 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1700 |
| Termination | PTFE Luer Lock (TLL) |
| Needle | Metal (N) or Kel-F |
| Gauge | No Needle Included |
| Point Style | No Needle Included |
| Needle Length | No Needle Included |
| Plunger Style | X-Style |
| Fluid Path | Borosilicate glass, PTFE |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 1000 psig (68.9 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.029 inches (0.729 mm) |
| Barrel Outer Diameter | 0.305 inches (7.75 mm) |
| Std Needle Dead Volume | N/A |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 1702 |
Documents
Specifications
- Autoclavable Yes
- Barrel inner diameter 0.029 inches (0.729 mm)
- Barrel outer diameter 0.305 inches (7.75 mm)
- Fluid path Borosilicate glass, PTFE
- Gas sterilizable Yes
- Gauge No Needle Included
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle Metal (N) or Kel-F
- Needle length No Needle Included
- Plunger style X-Style
- Point style No Needle Included
- Pressure 1000 psig (68.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume N/A
- Sub category Gastight Syringes
- Syringe model number 1702
- Syringe series 1700
- Syringe type Gastight
- Termination PTFE Luer Lock (TLL)
- Volume 25 µL
