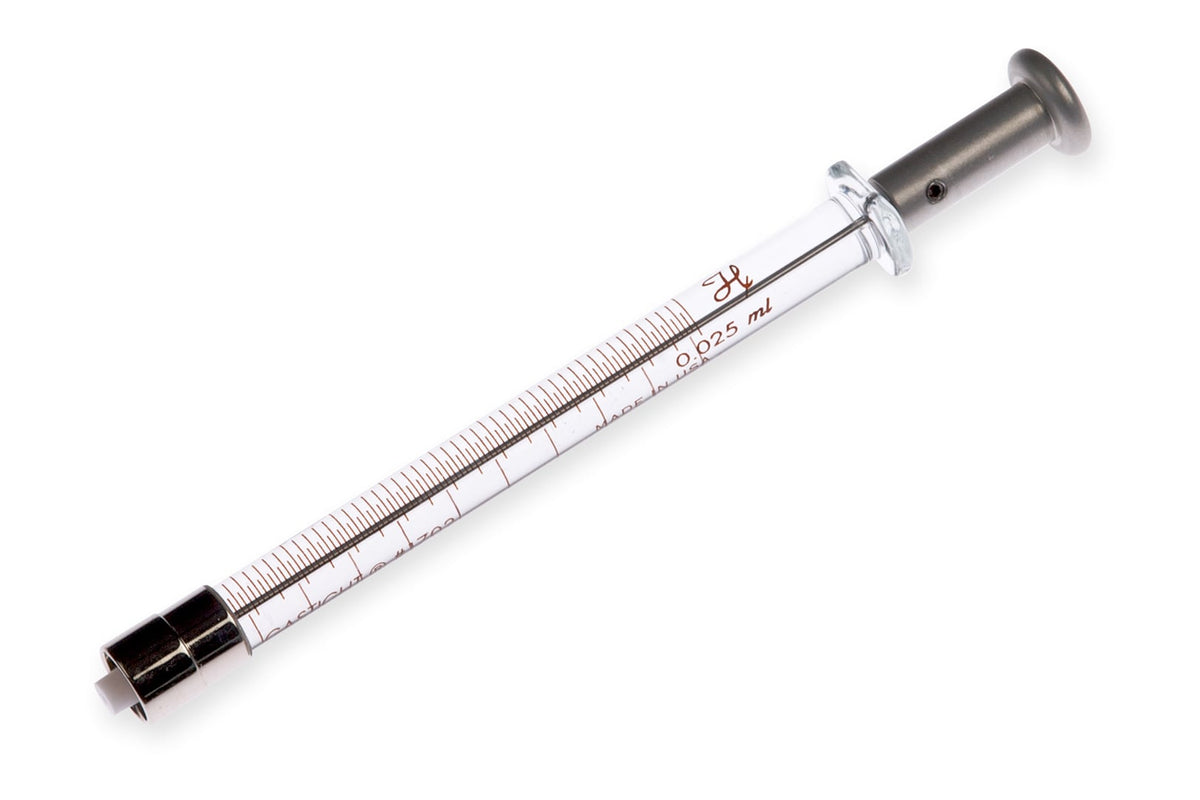

25 µL, Gastight Instrument Syringe, Luer Lock (TLL)
Vendor: Hamilton Company
SKU: 80222
In stock
Hamilton’s 1700 series, Gastight #1702 Luer Lock (TLL) syringe with X-style plunger is designed for use with instruments. Compatible with standard female Luer Lock connectors. Commonly used as instrument syringes with PSD/ 6 syringes.
The 1700 series syringes are the Gastight version of the Hamilton 700 series syringes. This series of syringes are ideal for dispensing both liquids and gases. They have a polymer plunger tip that creates a leak-free seal. With a wide range of volume capabilities, terminations, needle options and plunger styles, this syringe series provides exceptional flexibility and versatility. Hamilton syringes ensure an accuracy of ± 1%, superior durability, and are manufactured with the highest quality chemically resistant materials.
Specifications
| Volume | 25 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1700 |
| Termination | PTFE Luer Lock (TLL) |
| Needle | Metal (N) or Kel-F |
| Gauge | No Needle Included |
| Point Style | No Needle Included |
| Needle Length | No Needle Included |
| Plunger Style | X-Style |
| Fluid Path | Borosilicate glass, PTFE |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 1000 psig (68.9 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.029 inches (0.729 mm) |
| Barrel Outer Diameter | 0.305 inches (7.75 mm) |
| Std Needle Dead Volume | N/A |
| Sales Quantity | 1 syringe per pack |
| Stroke Length | 60 mm |
| Syringe Model Number | 1702 |
Documents
Specifications
- Autoclavable Yes
- Barrel inner diameter 0.029 inches (0.729 mm)
- Barrel outer diameter 0.305 inches (7.75 mm)
- Fluid path Borosilicate glass, PTFE
- Gas sterilizable Yes
- Gauge No Needle Included
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle Metal (N) or Kel-F
- Needle length No Needle Included
- Plunger style X-Style
- Point style No Needle Included
- Pressure 1000 psig (68.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume N/A
- Sub category Gastight Syringes
- Syringe model number 1702
- Syringe series 1700
- Syringe type Gastight
- Termination PTFE Luer Lock (TLL)
- Volume 25 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
