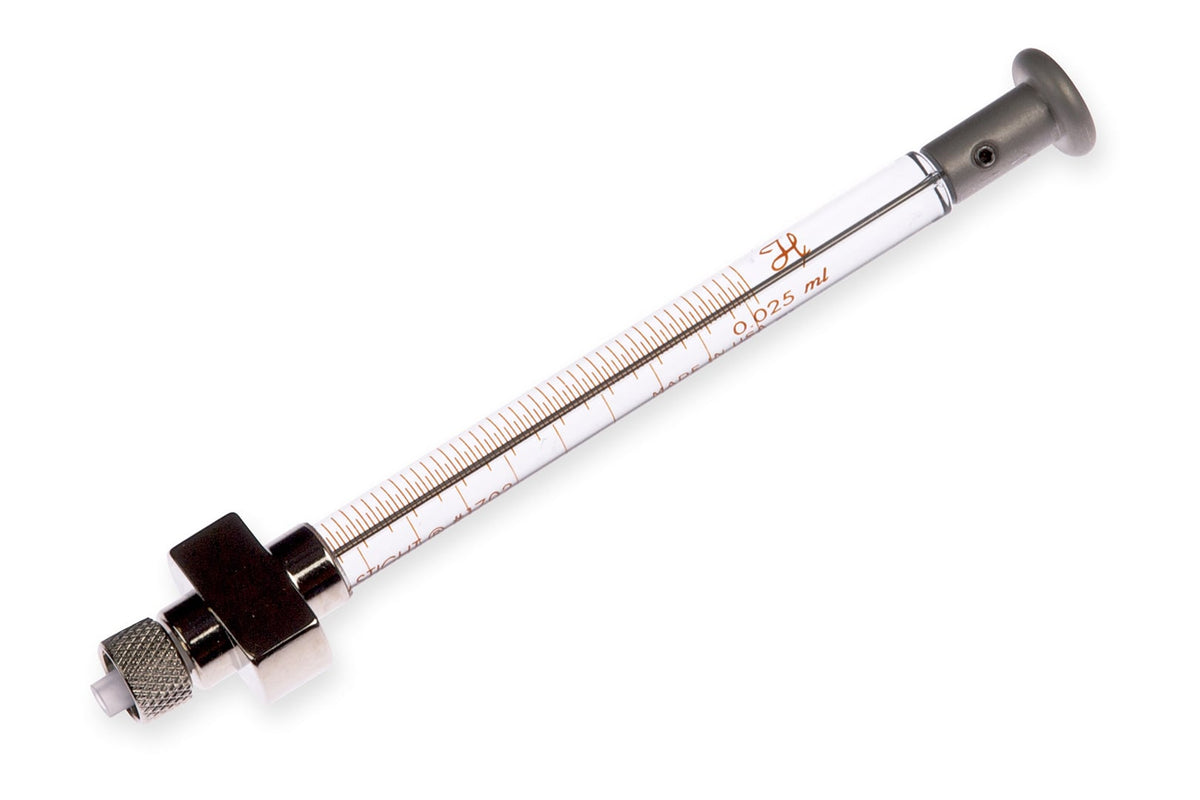

25 µL, Gastight Instrument Syringe, Diluter PTFE Luer Lock (D)
Vendor: Hamilton Company
SKU: 80226
In stock
Hamilton's 1700 series, Gastight # 1710 T PTFE Luer Lock (TLL) Syringe is designed without a syringe flange for compatibility with clinical instruments for performing immunological and diagnostic assays. The 1700 series syringes are the Gastight version of the Hamilton 700 series syringes. This series of lab syringes is ideal for dispensing volumes from 1 µL up to 500 µL. With a wide range of termination and needle options, this syringe series provides exceptional flexibility and versatility.
Specifications
| Volume | 25 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1700 |
| Termination | Diluter PTFE Luer Lock (D) |
| Needle | No Needle Available |

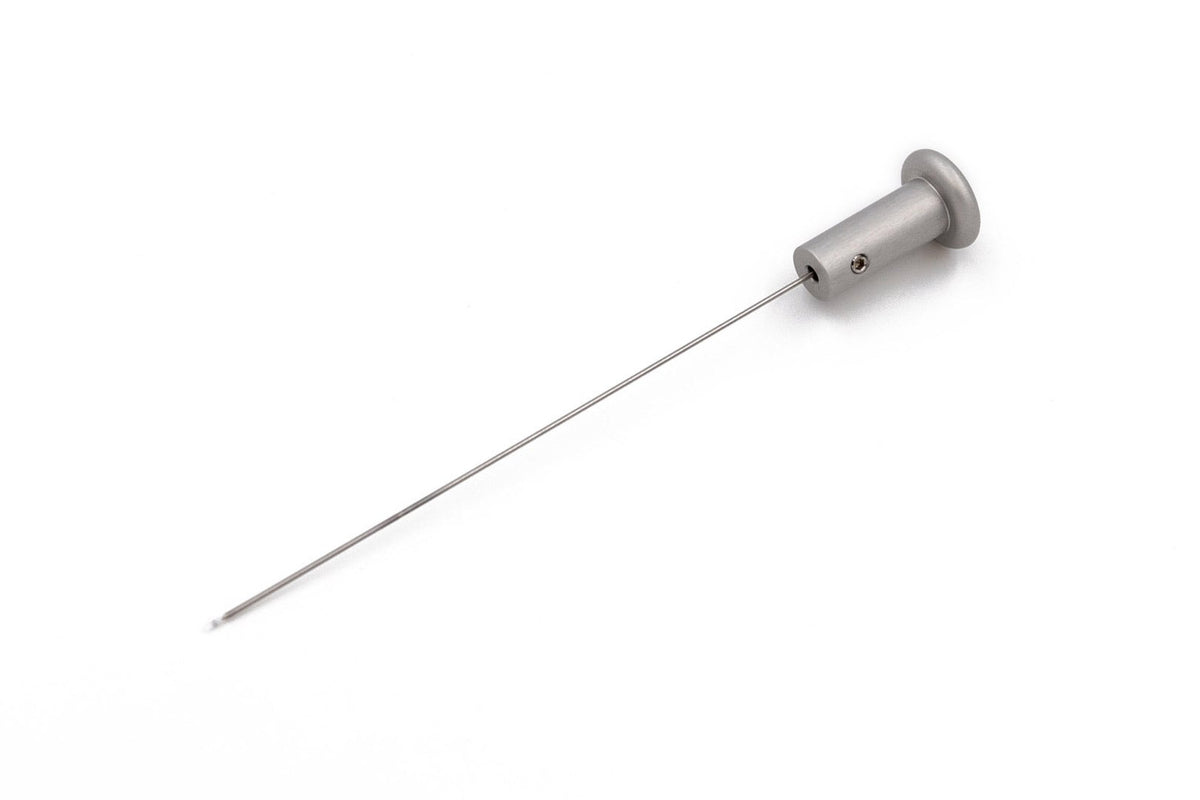

| Plunger Style | X-Style |
| Fluid Path | Borosilicate glass, PTFE, PCTFE |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 1000 psig (68.9 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.029 inches (0.729 mm) |
| Barrel Outer Diameter | 0.305 inches (7.75 mm) |
| Sales Quantity | 1 syringe per pack |
| Syringe Model Number | 1702 |
Documents
Specifications
- Autoclavable No
- Barrel inner diameter 0.029 inches (0.729 mm)
- Barrel outer diameter 0.305 inches (7.75 mm)
- Fluid path Borosilicate glass, PTFE, PCTFE
- Gas sterilizable Yes
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle No Needle Available
- Plunger style X-Style
- Pressure 1000 psig (68.9 bar)
- Sales quantity 1 syringe per pack
- Sub category Gastight Syringes
- Syringe model number 1702
- Syringe series 1700
- Syringe type Gastight
- Termination Diluter PTFE Luer Lock (D)
- Volume 25 µL
links and documants
- Catalog url Click here
- Guide url Click here
- Source url Click here
- Specification url Click here
