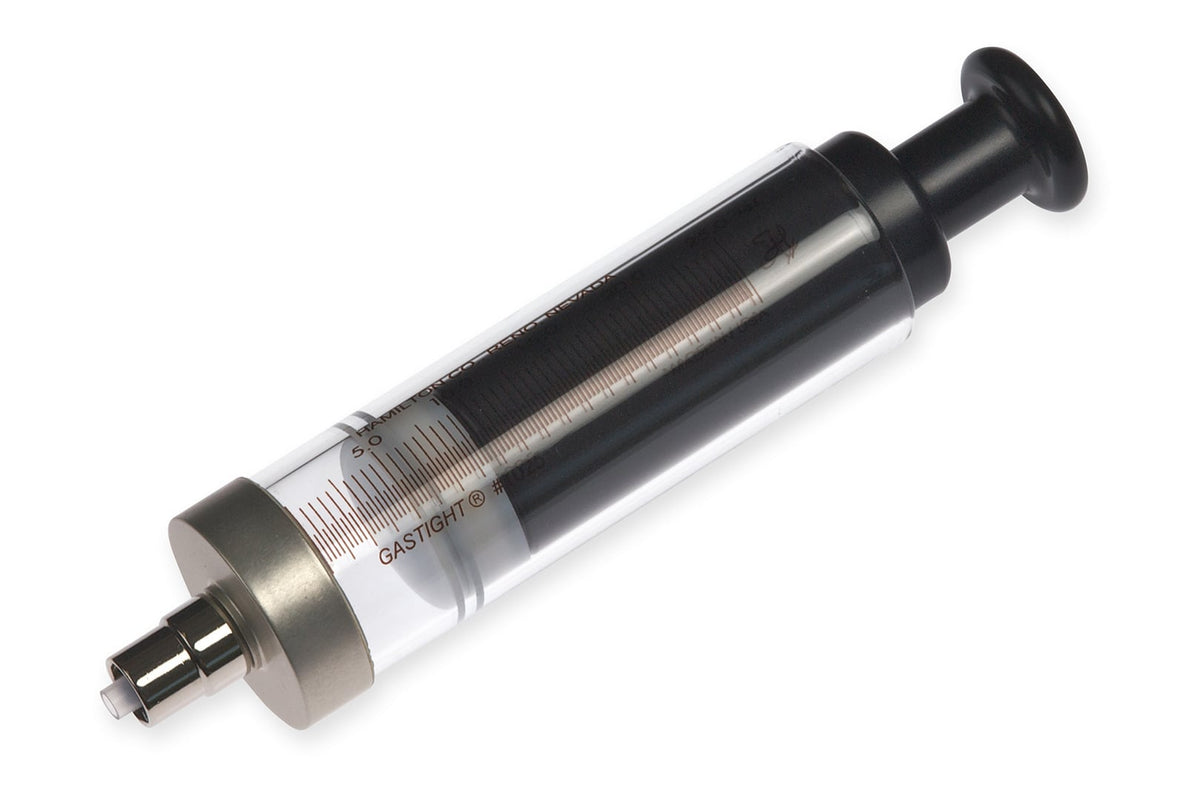

25 mL, Gastight Instrument Syringe, Luer Lock (TLL), Flangeless
Vendor: Hamilton Company
SKU: 82521
In stock
Hamilton's 1000 series, Gastight Model 1025 Luer Lock (TLL) Instrument Syringe with an X-style plunger is designed for manually dispensing both liquids and gases for use in a variety of instruments such as the PSD/6. Compatible with standard female Luer Lock connections. The 1000 series is a mid-volume Gastight syringe. They feature a polymer plunger tip that creates a leak-free seal. With a wide range of volume capabilities, terminations, needle options, and plunger styles, this syringe series provides exceptional flexibility and versatility. Hamilton syringes ensure an accuracy of ± 1%, superior durability, and are manufactured with the highest quality chemically resistant materials.
Compatible with Kel-F and Metal Hub Needles
Specifications
| Volume | 25 mL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1000 |
| Termination | PTFE Luer Lock (TLL) |
| Needle | Metal (N) or Kel-F |
| Gauge | No Needle Included |
| Point Style | No Needle Included |
| Needle Length | No Needle Included |
| Plunger Style | X-Style |
| Fluid Path | Borosilicate glass, PTFE, PCTFE |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 100 psig (6.9 bar) |
| Maximum Operating Temperature | 80°C / 176°F |
| Minimum Operating Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.907 inches (23.0 mm) |
| Barrel Outer Diameter | 1.07 inches (27.1 mm) |
| Std Needle Dead Volume | N/A |
| Sales Quantity | 1 syringe per pack |
| Stroke Length | 60 mm |
| Syringe Model Number | 1025 |
Documents
Specifications
- Autoclavable No
- Barrel inner diameter 0.907 inches (23.0 mm)
- Barrel outer diameter 1.07 inches (27.1 mm)
- Fluid path Borosilicate glass, PTFE, PCTFE
- Gas sterilizable Yes
- Gauge No Needle Included
- Maximum operating temperature 80°C / 176°F
- Minimum operating temperature 10°C / 50°F
- Needle Metal (N) or Kel-F
- Needle length No Needle Included
- Plunger style X-Style
- Point style No Needle Included
- Pressure 100 psig (6.9 bar)
- Sales quantity 1 syringe per pack
- Std needle dead volume N/A
- Sub category Gastight Syringes
- Syringe model number 1025
- Syringe series 1000
- Syringe type Gastight
- Termination PTFE Luer Lock (TLL)
- Volume 25 mL
